T104 T100 Electro Mechanical Timer Switch, 24 hr Setting, 208 to 277 V AC, 5 hp, 2NO 2 Form A DPST Contact, 2 Poles
- MFR:
- Intermatic
- MFR #:
- T104
- UPC:
- 078275000025
- Item #:
- 8679
T104 T100 Electro Mechanical Timer Switch, 24 hr Setting, 208 to 277 V AC, 5 hp, 2NO 2 Form A DPST Contact, 2 Poles
- MFR #:
- T104
- UPC:
- 078275000025
- Item #:
- 8679

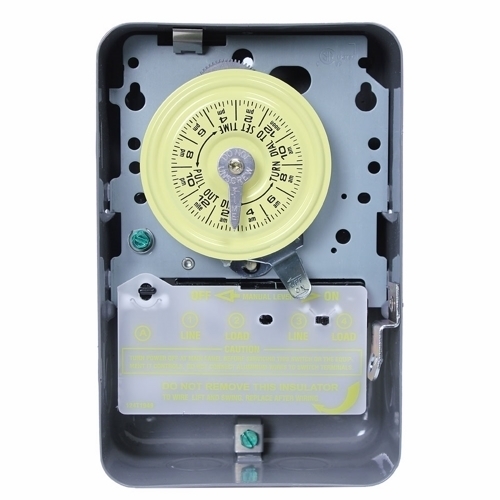

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Manuals & Documentation
| Catalog Number | T104 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | DPST |
| Amperage Rating | 40 |
| Application | Commercial, Industrial, Residential, Indoor, HVACR |
| Connection | Teeter Type |
| Contact Configuration | 2 NO |
| Contact Rating | 40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 (Tungsten) |
| Enclosure | NEMA 1 |
| Mounting | Wall |
| Number of Poles | 2 |
| Special Features | Features: Provides direct 24-Hour control of most loads, 1 to 12 ON/OFF operations each day, Minimum ON/OFF times of 1 hour, Manual override, 1 Year Warranty |
| Standard | cCSAus Certified, HVACR |
| UPC | 078275000025 |
| GTIN | 00078275000025 |
| Item Type | Electromechanical |
| Size | 5 LENGTH X 3 WIDTH X 7-3/4 HEIGHT IN, 12.70 LENGTH X 7.62 WIDTH X 19.69 HEIGHT CM |
| Operating Temperature | -40 to +130 DEG F, -40 to +54 DEG C |
| Timing Range | 24 HR |
| Voltage Rating | 208 - 277 |
| Wattage | 3 W |
