NSYCRN108250 Spacial 1-Door Compact Enclosure, 800 mm W x 250 mm D x 1000 mm H, NEMA 1/2/3/3R/4/5/12/13, Steel
- MFR:
- Schneider Electric
- MFR #:
- NSYCRN108250
- Item #:
- 8590
NSYCRN108250 Spacial 1-Door Compact Enclosure, 800 mm W x 250 mm D x 1000 mm H, NEMA 1/2/3/3R/4/5/12/13, Steel
- MFR #:
- NSYCRN108250
- Item #:
- 8590

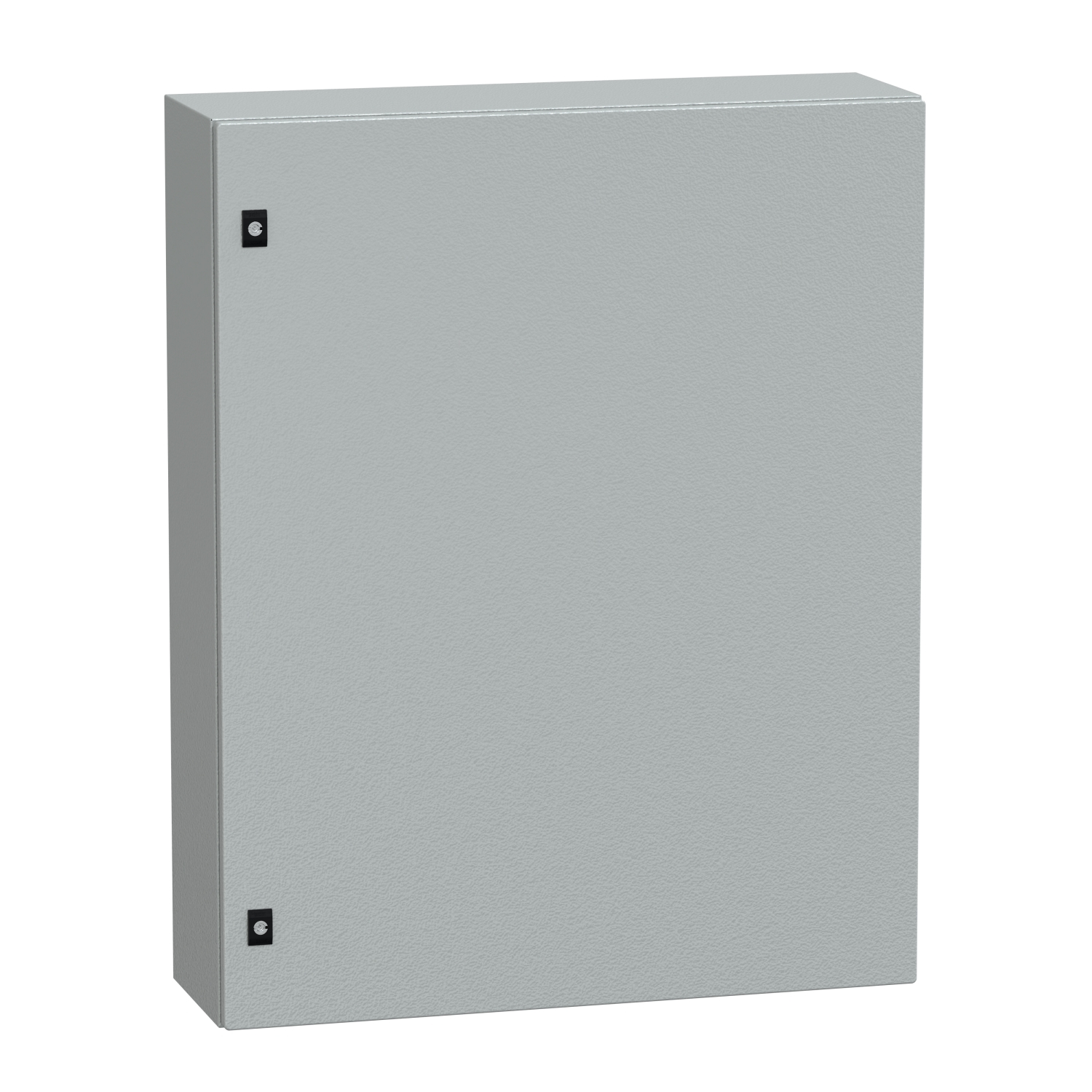

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 800 mm x (H) 1000 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is c.UL certified.
Manuals & Documentation
| Catalog Number | NSYCRN108250 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Spain |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=10176994&lang=en-us |
| GTIN | 03606480212710 |
