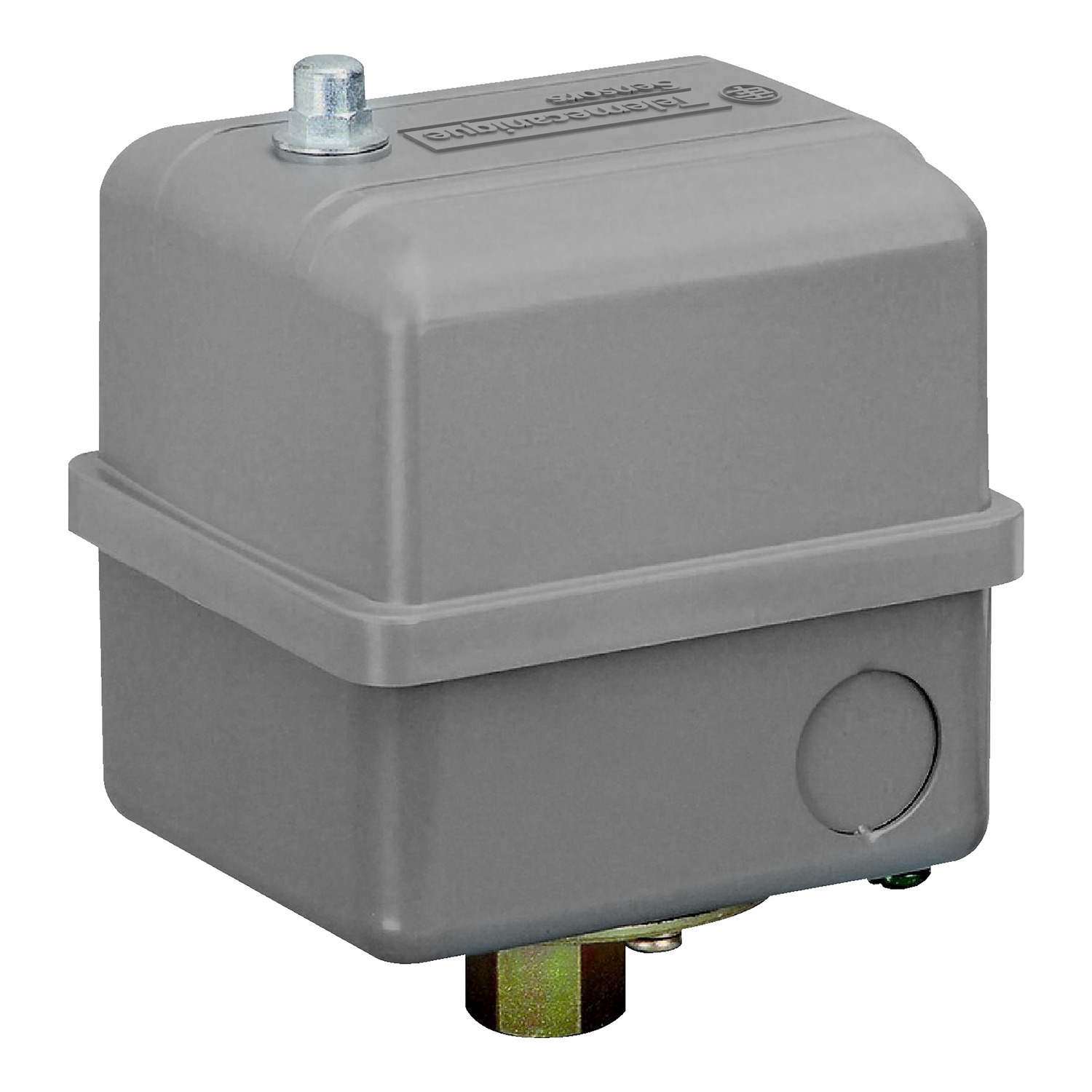

9013GHG2J26 Type G Adjustable Electro-Mechanical Pressure Switch, 40 to 170 psig Pressure, 2NC DPST-DB Contact, 1/4 in NPSF Screw Clamp Connection
- MFR:
- Telemecanique Sensors
- MFR #:
- 9013GHG2J26
- UPC:
- 785901052708
- Item #:
- 85892
9013GHG2J26 Type G Adjustable Electro-Mechanical Pressure Switch, 40 to 170 psig Pressure, 2NC DPST-DB Contact, 1/4 in NPSF Screw Clamp Connection
- MFR #:
- 9013GHG2J26
- UPC:
- 785901052708
- Item #:
- 85892
pump or compressor switch 9013GH - adjustable diff. - 70-90 psi
Manuals & Documentation
| Catalog Number | 9013GHG2J26 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control electrically driven water pumps and air compressors;Power circuit;Regulation between 2 thresholds |
| Contact Configuration | 2 NC, snap action, DPST-DB, Form YY |
| Enclosure | NEMA 1 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.25 INCH NPSF INTERNAL UL 508 |
| Special Features | - |
| Standard | IP20 IEC 60529,UL 508-CE-NSF ANSI 372,UL LISTED FILE E12158-CSA FILE LR25490 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=391509&lang=en-us |
| UPC | 785901052708 |
| GTIN | 00785901052708 |
| Item Type | Electromechanical pressure switch;Adjustable differential |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 200 PSI 40-170 PSI) |
