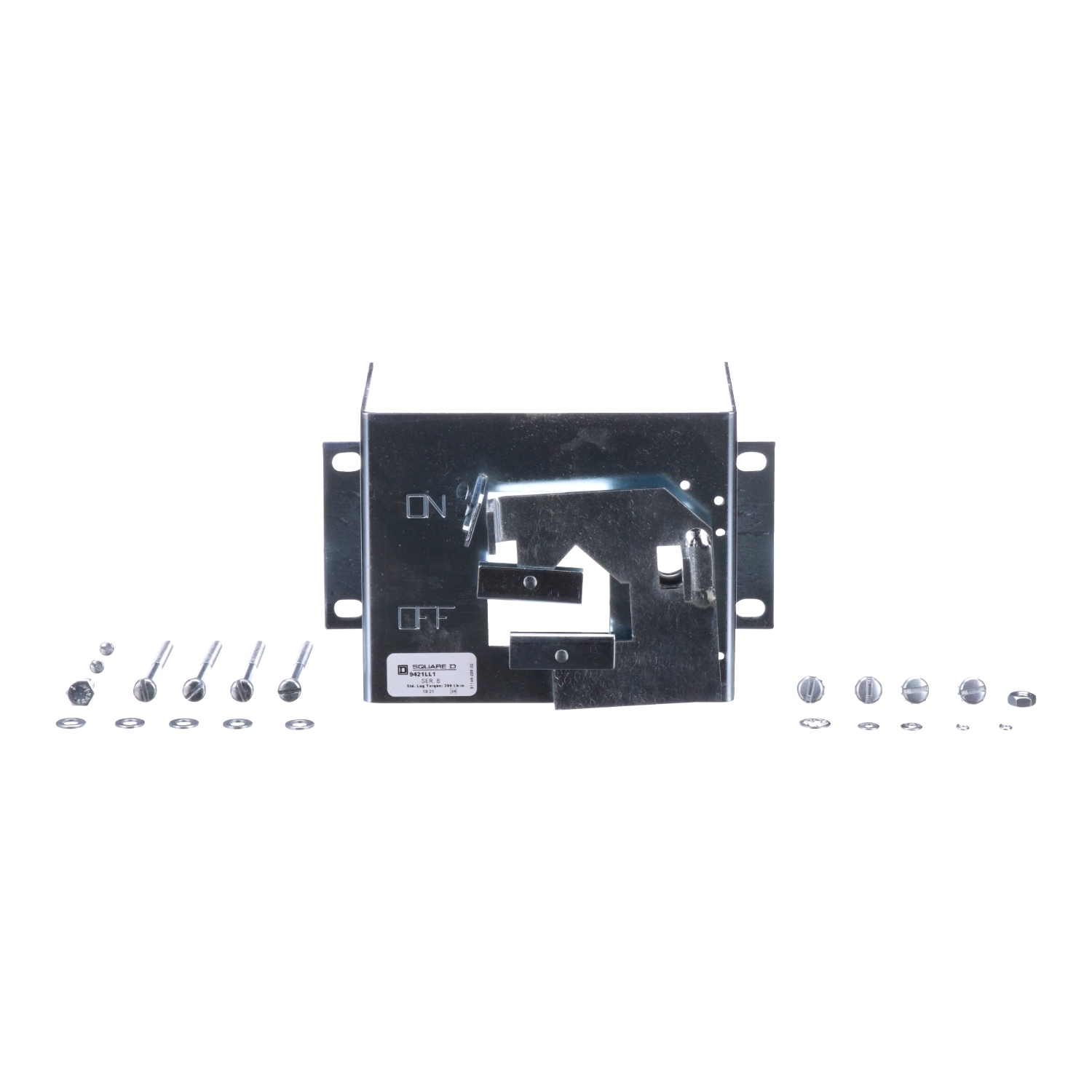

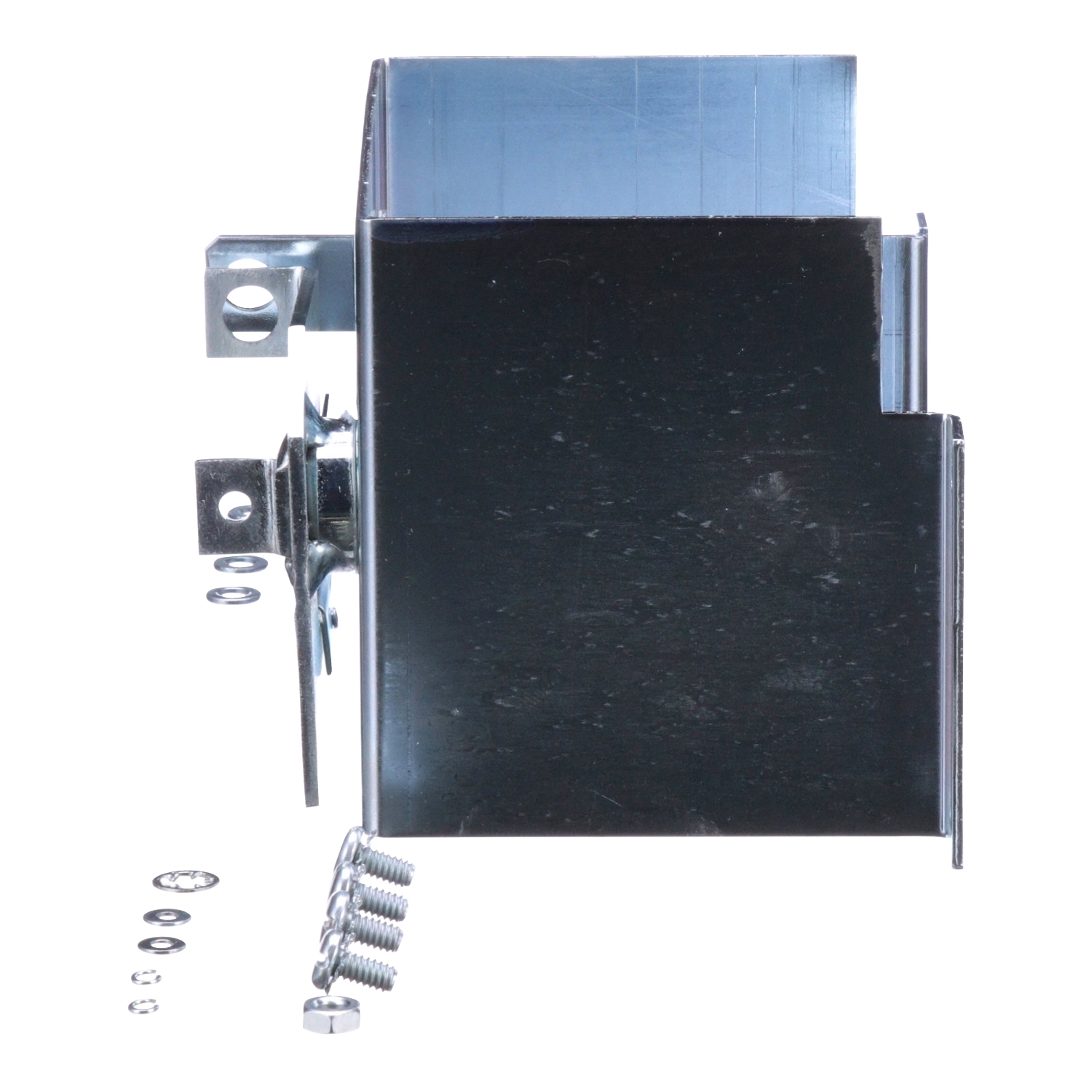

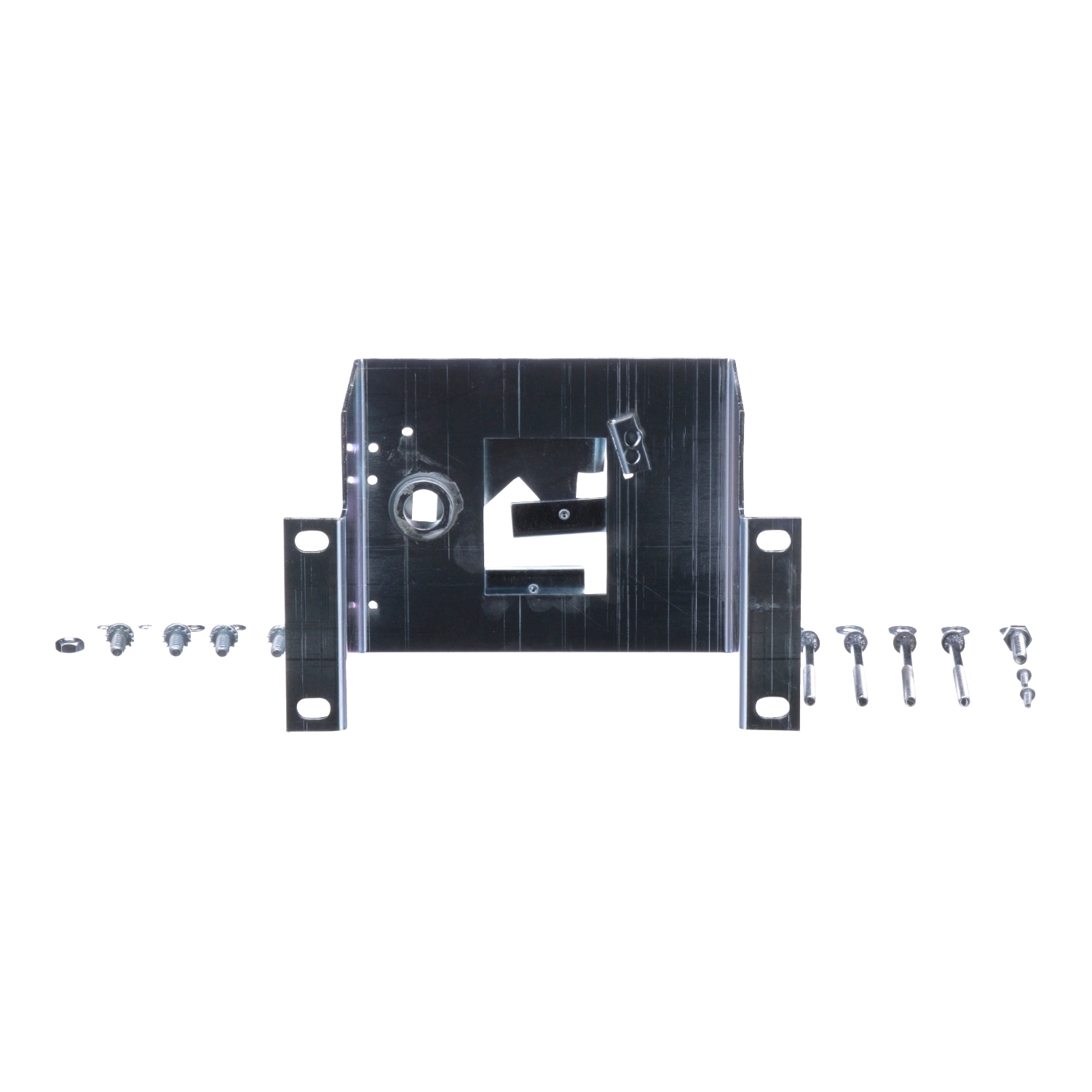

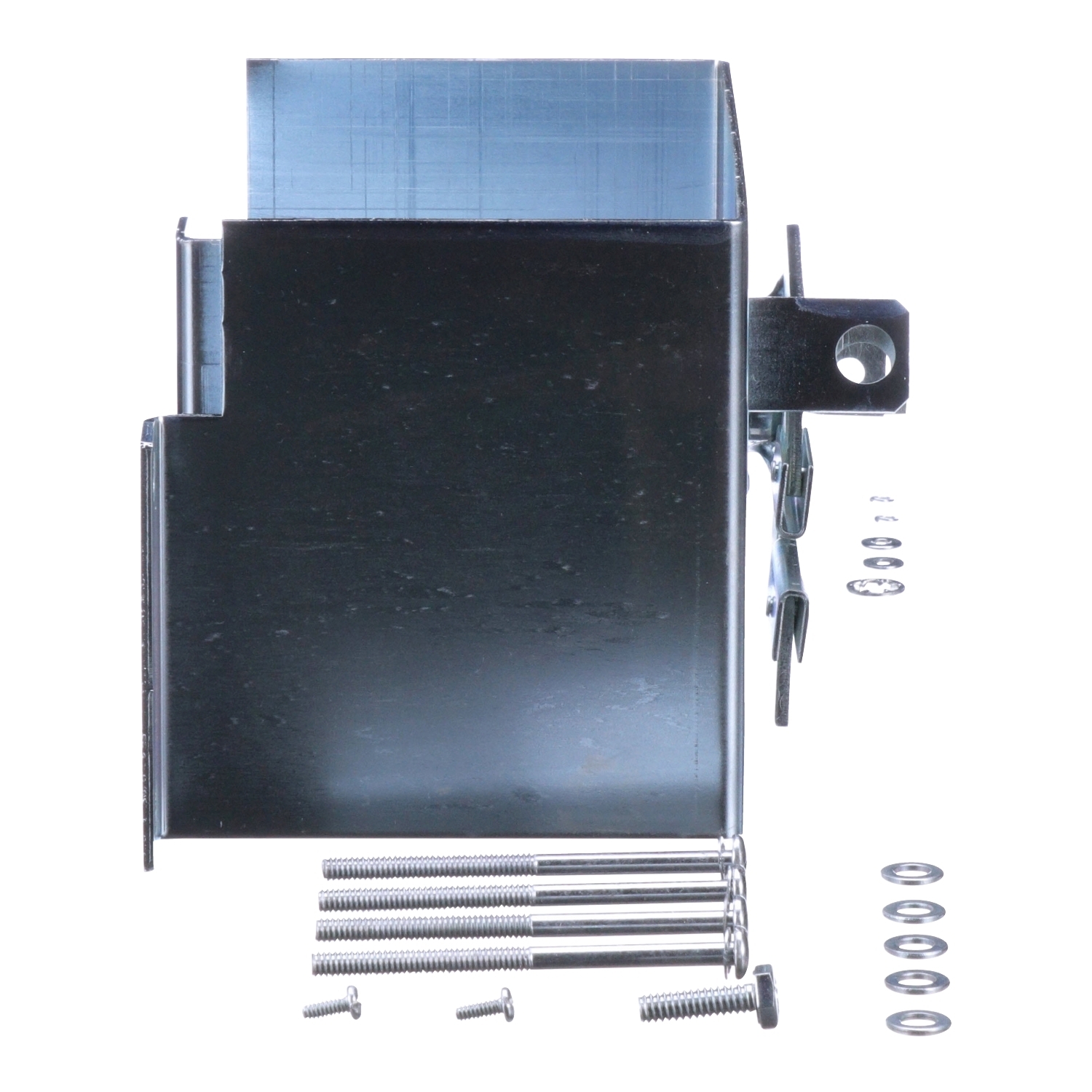

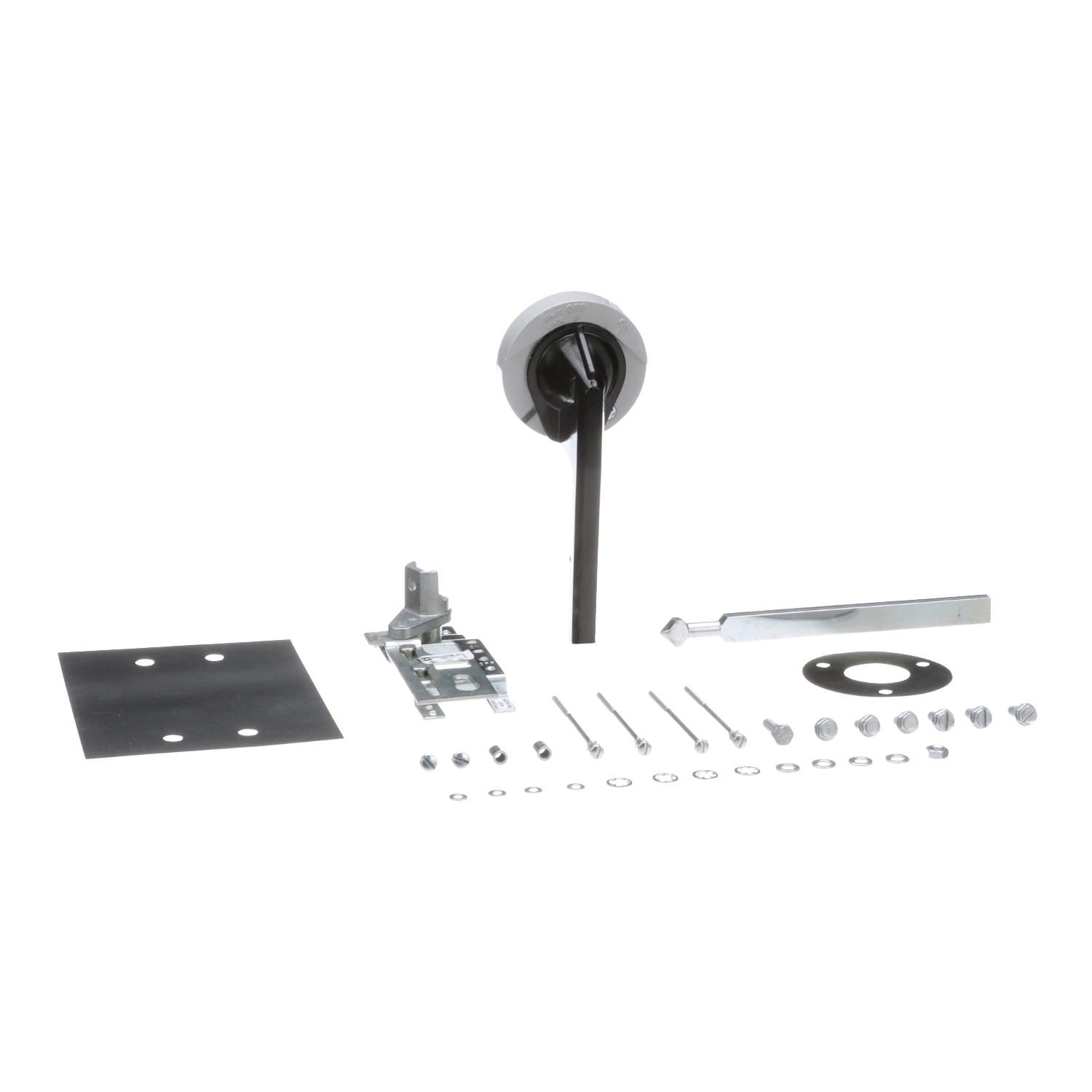

9421LL1 Circuit Breaker Operating Mechanism, Rotary Handle Handle/Operation, For Use With LAL/LHL, Q4L Series 400 A Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- 9421LL1
- UPC:
- 785901830191
- Item #:
- 85876
9421LL1 Circuit Breaker Operating Mechanism, Rotary Handle Handle/Operation, For Use With LAL/LHL, Q4L Series 400 A Circuit Breaker
- MFR #:
- 9421LL1
- UPC:
- 785901830191
- Item #:
- 85876
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with LAL and LHL circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 400A. A 9421LH6 handle should be used with this mechanism. A 9421LS8 or 9421LS10 shaft can be used with this mechanism. Mechanism is UL Component Recognized and CSA certified.
Manuals & Documentation
| Catalog Number | 9421LL1 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565441&lang=en-us |
| UPC | 785901830191 |
| GTIN | 00785901830191 |
