Discontinued
Schneider Electric

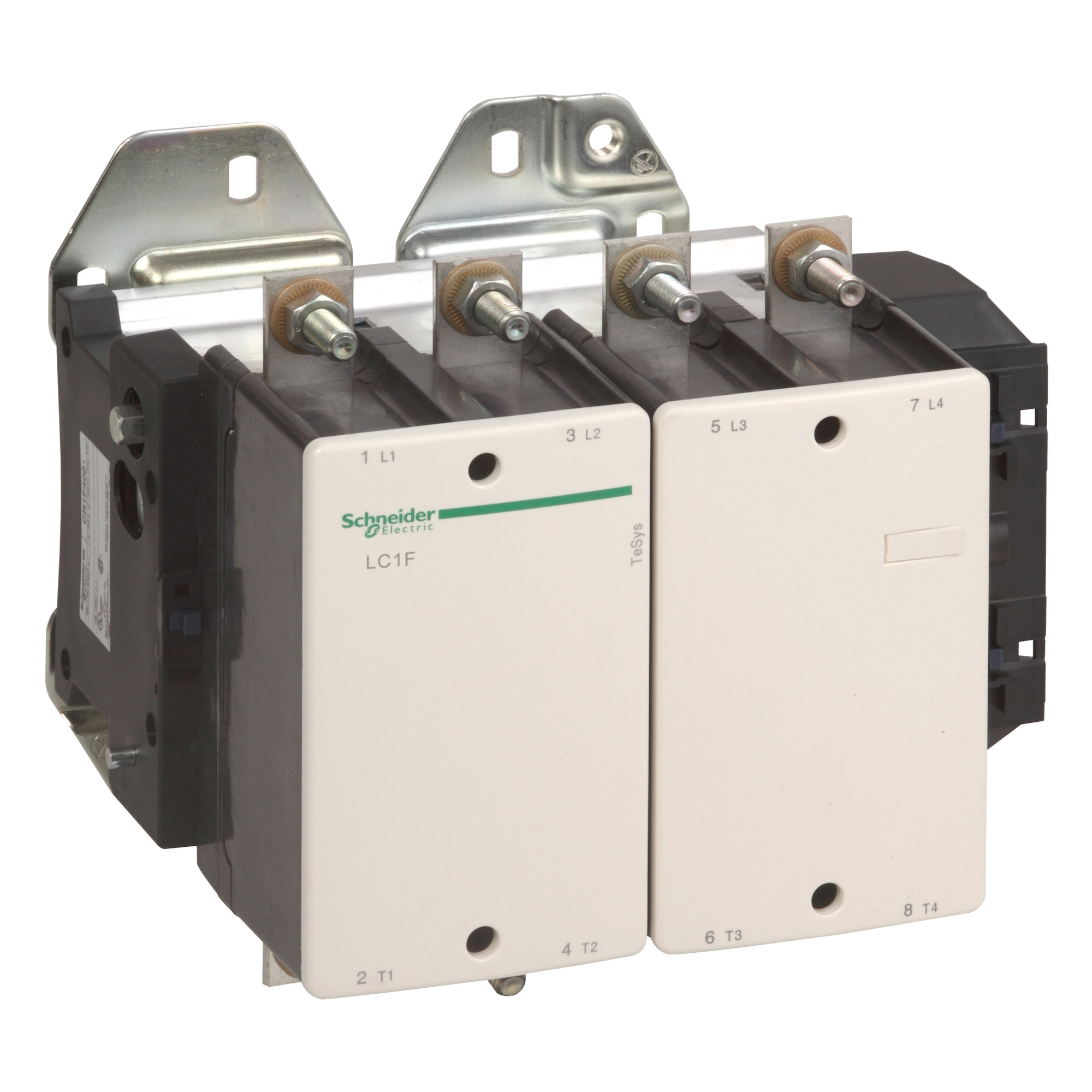

LC1F4004 TeSys F LC1F Non-Reversing IEC Contactor, 500 A, 4NO Contact, 4 Poles

MFR:
Schneider Electric
MFR #:
LC1F4004
Item #:
85811

TeSys F contactor, 4 poles (4NO), 500A/1000V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Manuals & Documentation
Catalog Number LC1F4004
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Resistive load
Coil Voltage 48...1000 V AC 40...400 Hz with LX1/LX9 coil;48...440 V DC with LX4 coil;100...250 V AC 50/60 Hz with LXE coil;100...380 V DC with LXE coil
Standard CB;ABS;DNV;RMRoS;LROS (Lloyds register of shipping);BV;RINA;UL;CSA;UKCA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=621586&lang=en-us
GTIN 03389110122152
Item Type Contactor;LC1F
