AFC CABLE SYSTEMS

10-3 Solid Black, Red, White, Green - MC Tuff, Blue Interlocked Lightweight Galvanized Steel Armor with phase ID - Type MC - 250' Coil

MFR:
ATKORE - AFC CABLE
MFR #:
1708B42T00
UPC:
077680195869
Item #:
85757

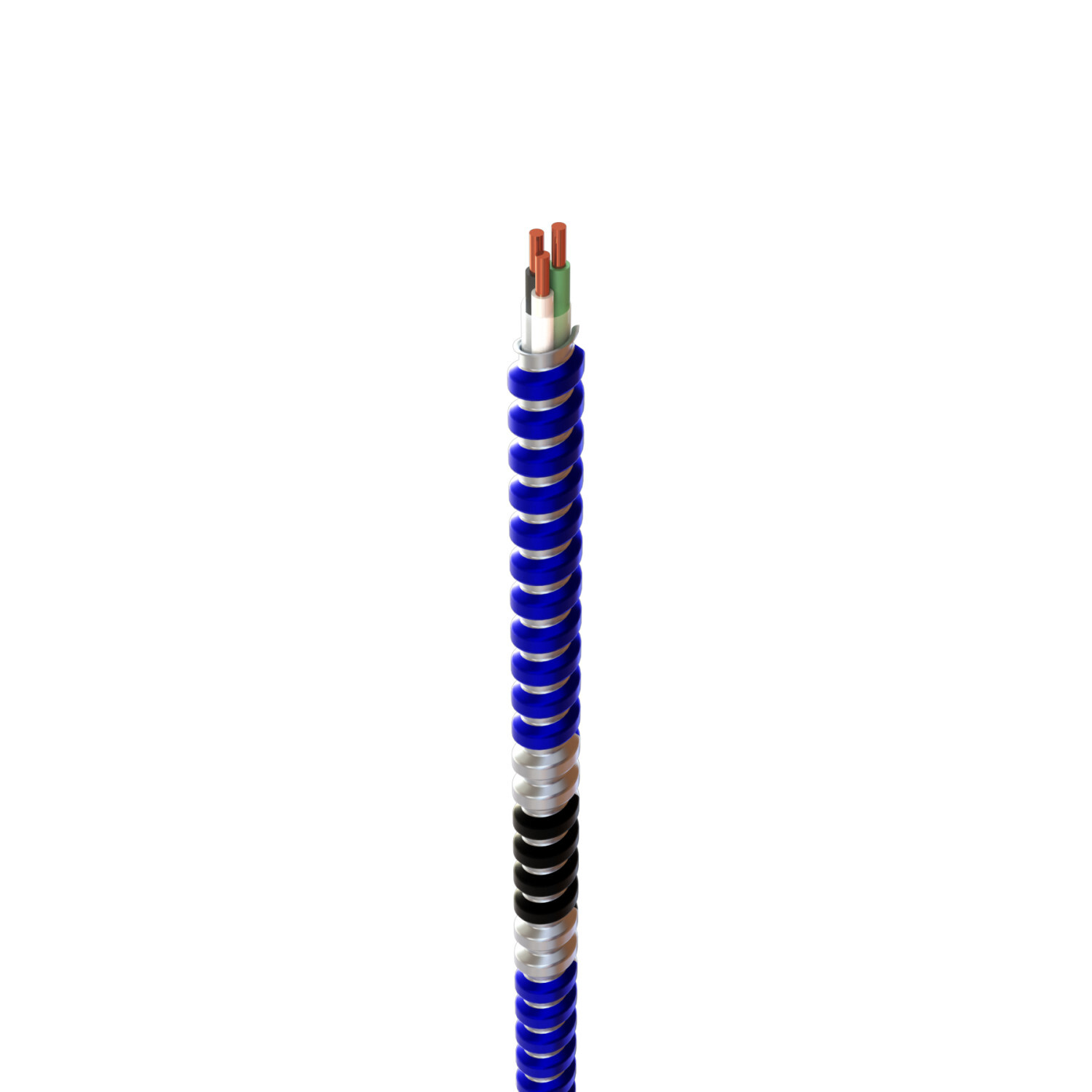

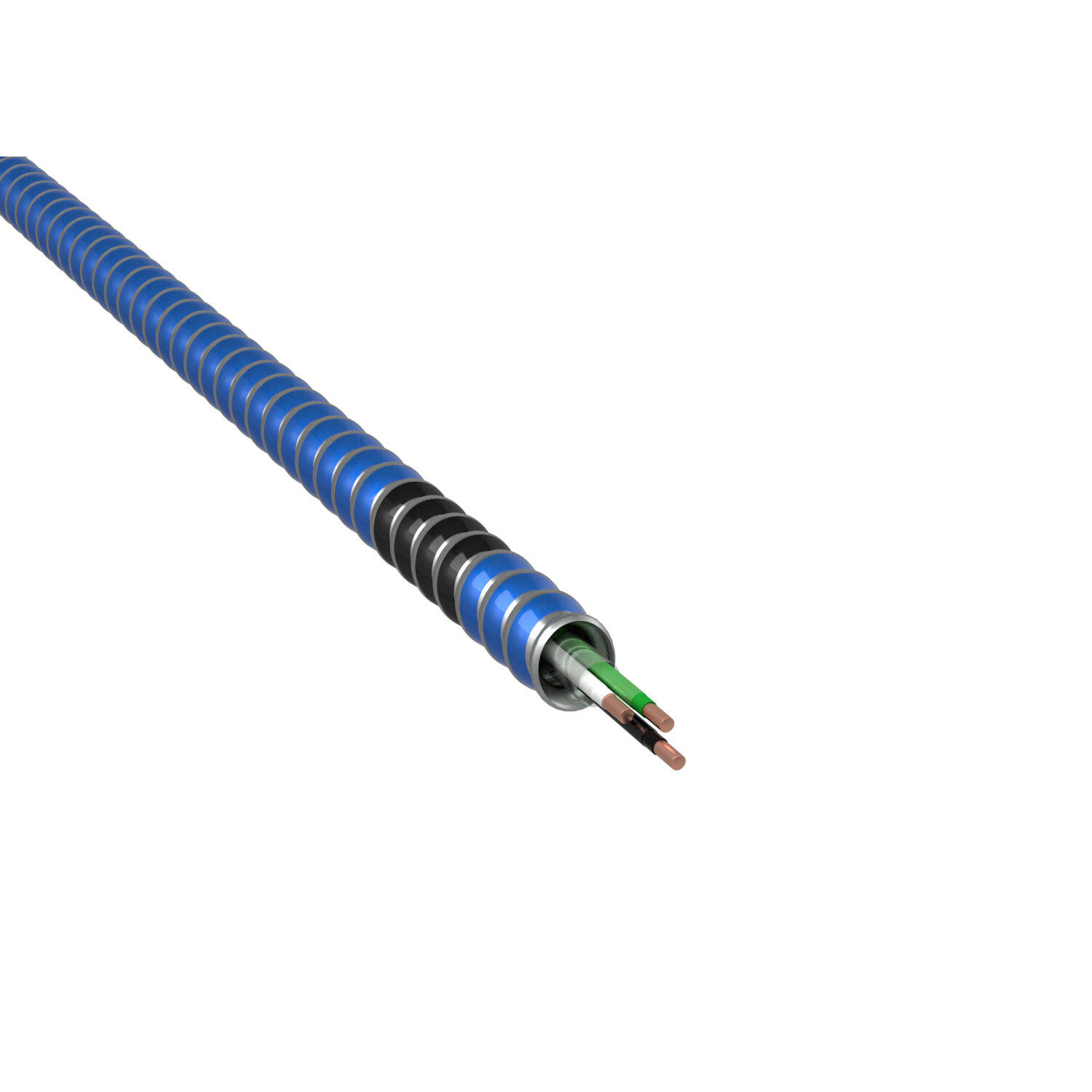

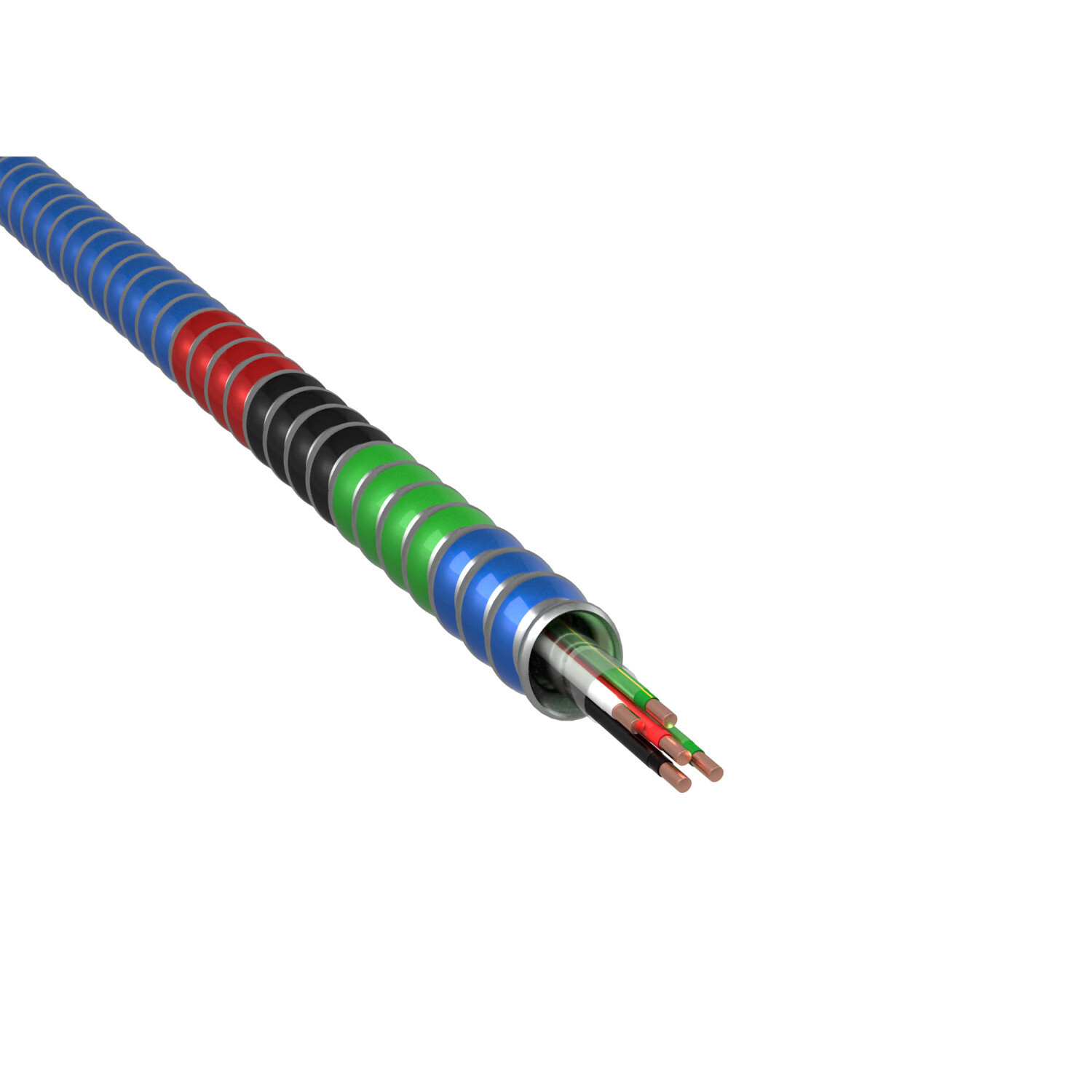

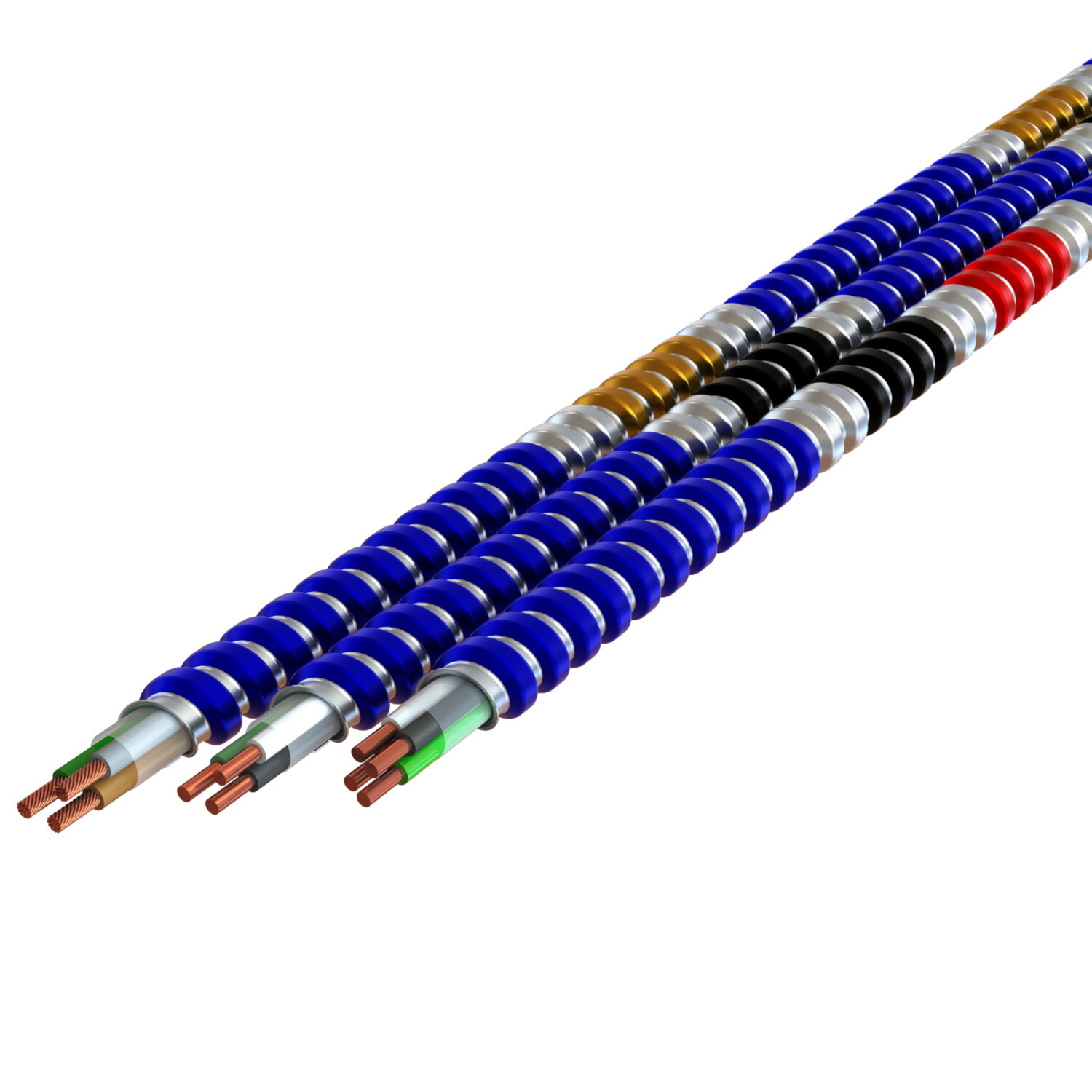

MC Tuff is a lightweight, high-strength Type MC Cable with blue galvanized steel interlocked armor that features ColorSpecID/ColorTrak ID for easy identification. MC Tuff cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.

Manuals & Documentation
Catalog Number 1708B42T00
Manufacturer ATKORE - AFC CABLE
Brand AFC CABLE SYSTEMS
Sub Brand MC Tuff
Country of Origin United States
Made in USA Yes
Armour Interlocked Galvanized Steel Strip
Bend Radius 9.33
Color Blue
Conductor Material Copper
Finish Blue Paint
Insulation Material THHN
Material Galvanized Steel
Number of Conductors 4
Special Features Cable tray rated, install per NEC; May be surfaced mounted and embedded in plaster; Environmental air-handling space installation per NEC 300.22; UL Classi?ed 1, 2, and 3 hour through (Fire) penetration product, R-14141; Made in USA of US and/or imported materials; ColorSpec ID system
Standard UL 83, 1479, 1569, 1581, 2556 File Number E80042, UL File Number R-14141, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Speci?cation A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, ISO 9001 Certified
UPC 077680195869
GTIN 00077680195869
Item Type Traditional Lightweight Type MC Cable With Ground And Neutral
Length 250
Length UOM Foot
Weight 0.275 LB/FT
Inside Diameter 0.422 IN
Outside Diameter 0.622 IN
Temperature Rating 194
Trade Size 10-3
Voltage Rating 600V
