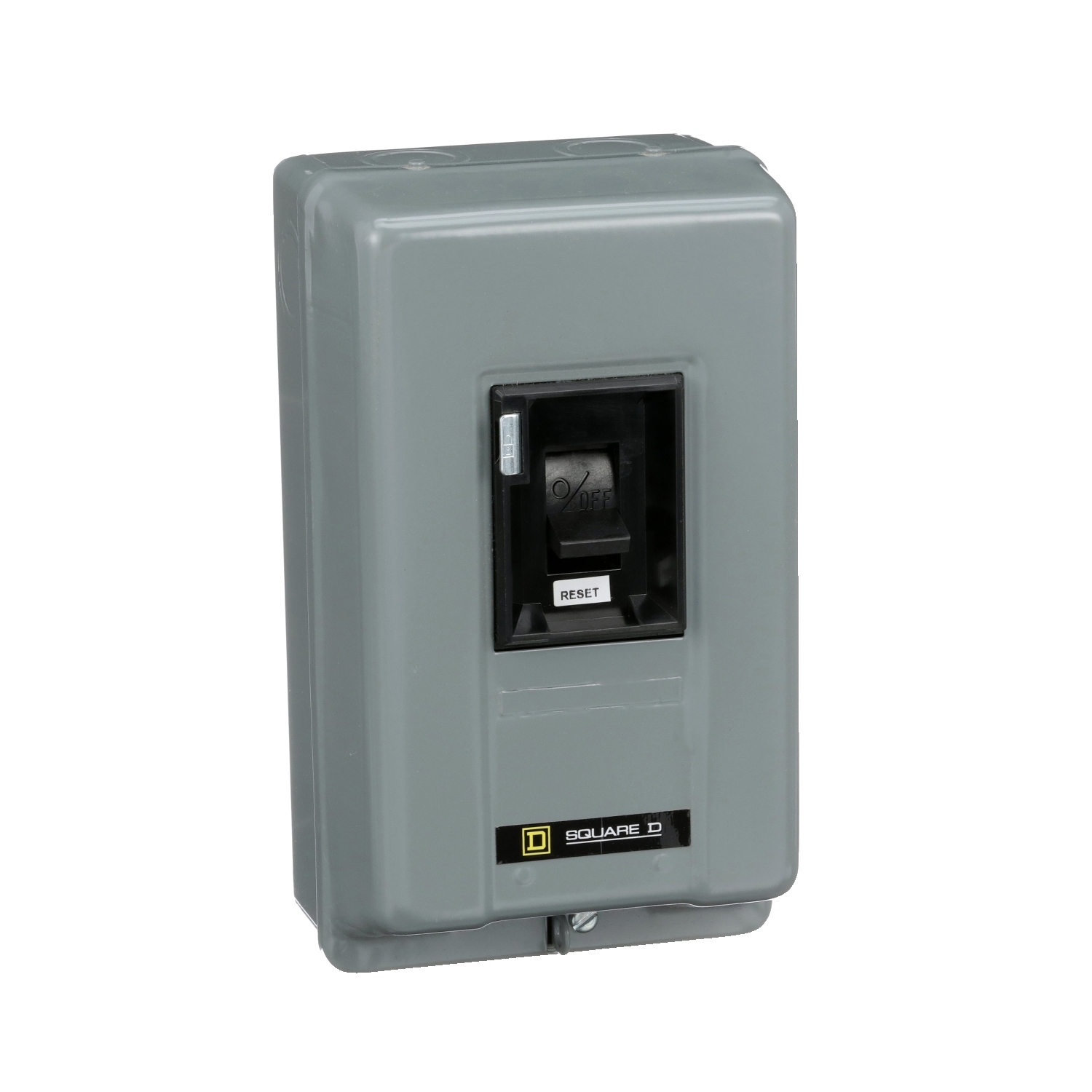

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has a toggle swirch. This NEMA Size M-0 two pole starter is rated for 1 HP at 115 VAC and 2 HP at 230 VAC single phase. A melting alloy thermal unit is used with this manual starter to sense over current conditions. This thermal unit is ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.

Manuals & Documentation
Catalog Number 2510TBG1
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=506413&lang=en-us
UPC 785901795513
GTIN 00785901795513
Width 5.0
Width UOM Inch
Height 8.63
Height UOM Inch
Depth 4.13 IN
