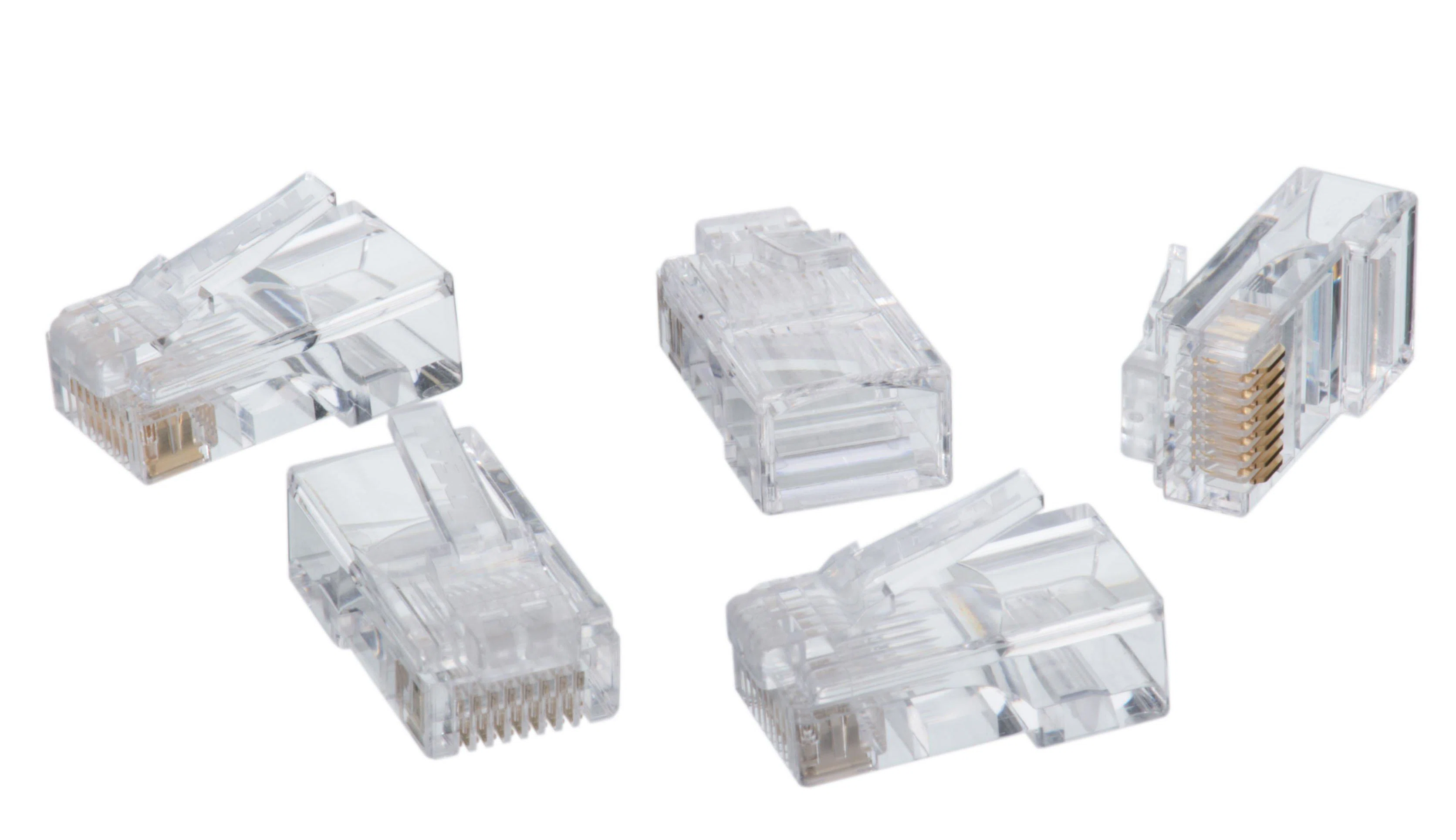

85-396 Modular Plug, 1 Port, Solid/Stranded Conductor, Plastic
- MFR:
- Ideal Industries
- MFR #:
- 85-396
- UPC:
- 783250853960
- Item #:
- 84979
85-396 Modular Plug, 1 Port, Solid/Stranded Conductor, Plastic
- MFR #:
- 85-396
- UPC:
- 783250853960
- Item #:
- 84979
CAT5e 8P8C (eight position/eight contact) modular plug connectors which support TIA/EIA standards for twisted pair cabling up to 100 MHz. IDEAL modular plugs are designed to work seamlessly with the IDEAL Telemaster and FT-45 series of modular plug crimp tools. Plugs are designed and manufactured to support all 100O cable wiring schemes including the widely used TIA-568A and TIA-568B configurations.
Manuals & Documentation
Features
- 8 position, 8 contact RJ-45 modular plug for CAT5e, 100O balanced twisted pair 100 MHz cables
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
- Designed to work seamlessly with IDEAL Telemastercrimping tools
- Three prong contact design for use with solid or stranded 24-26 AWG insulated copper conductors
| Manufacturer Part Number | 85-396 |
| Brand | IDEAL® |
| Manufacturer | Ideal Industries |
| UPC | 783250853960 |
| EAN | 0783250853960 |
| Country Of Origin | TW |
| Cable Type | RJ45 |
| Color | Gold Plated |
| Conductor Size | 24 AWG |
| Conductor Type | Solid/Stranded |
| Dimensions | 5/8 in H x 7/8 in W x 7/8 in D |
| Material | Plastic |
| Alternative Part Number | 8169339 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | RoHS Compliant |
| Application | Mod Plug Terminating of UTP 24 AWG Cat 5 or 5E |
| Lan Category | Cat 5e |
| Number Of Ports | 1 |
| Termination Type | Crimp |
