SQUARE D

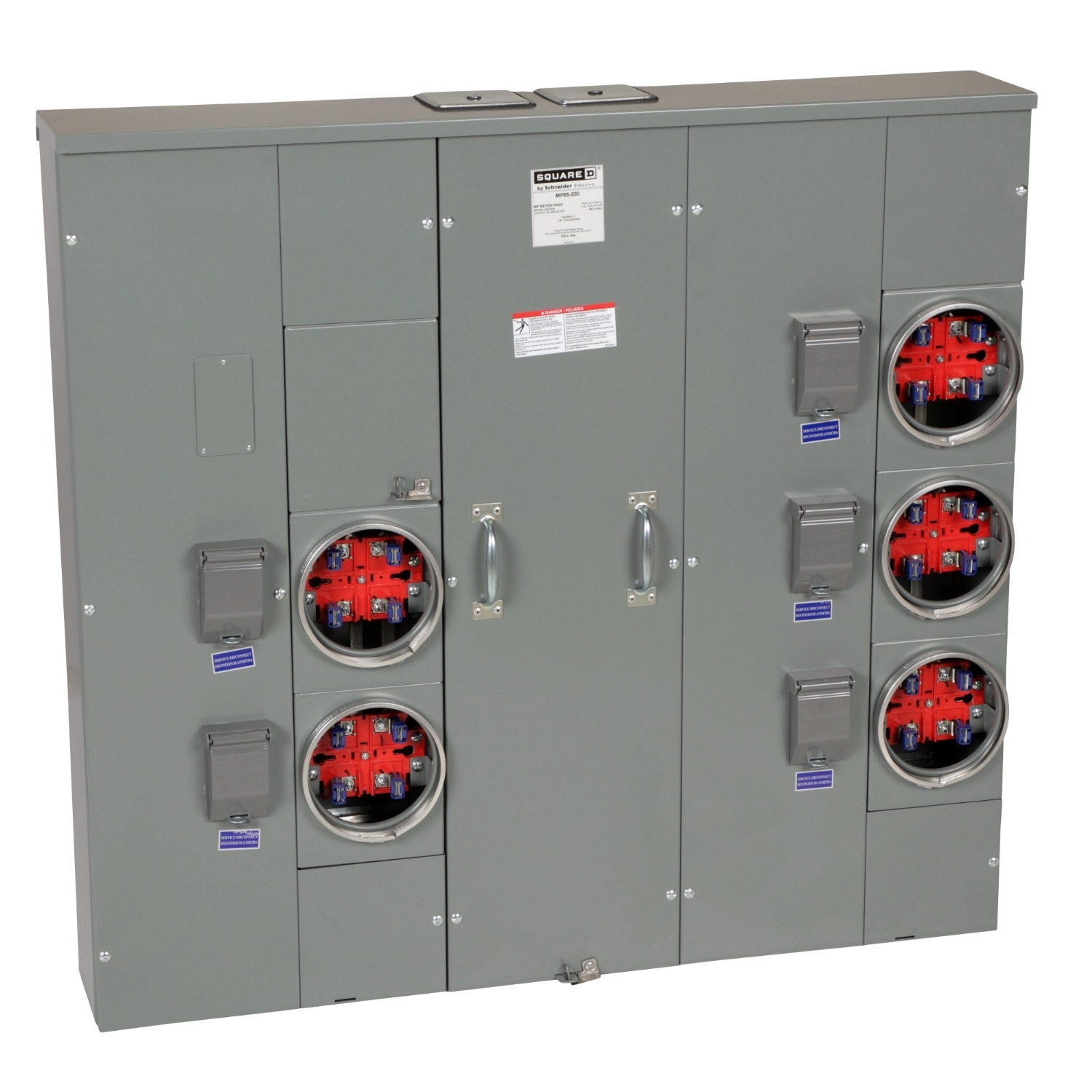

MP85200 Meter Pak Meter Center with Main Lugs, 200 Amp, 1 Phase, Ringed, No Bypass, 4 Jaw, 5 Position, OH, UG, 240V, 3 Wire

MFR:
Schneider Electric
MFR #:
MP85200
UPC:
785901410430
Item #:
84434

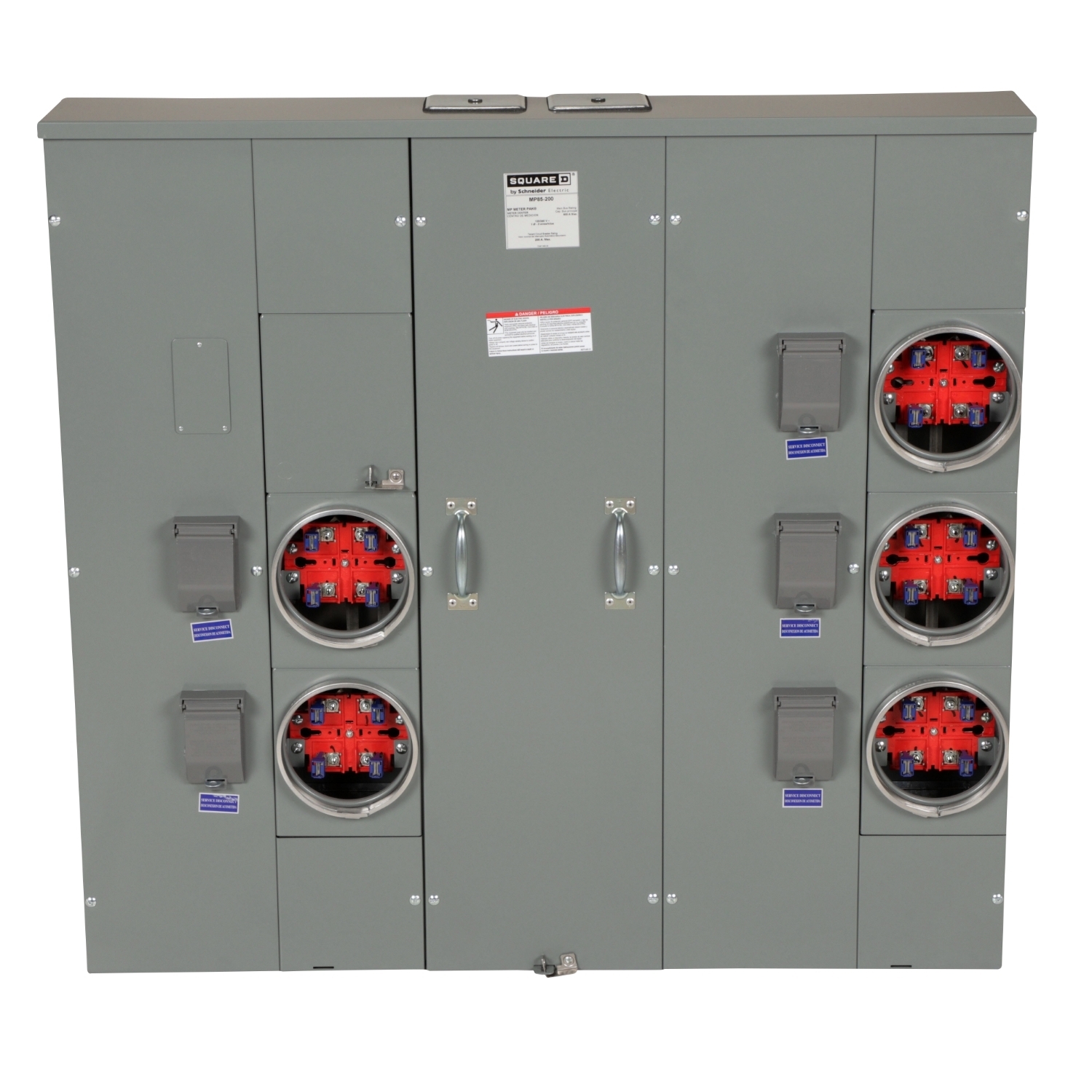

MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter center has five ringed meter sockets with no bypass and a 4 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 800 A. The maximum tenant main lugs amperage is 200 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 43.41 inches tall, 46.68 inches wide and 8.28 inches deep. This MPH meter center with accept one or two 3/0 AWG to 500 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.

Manuals & Documentation
Catalog Number MP85200
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Bypass Type No Bypass
Enclosure Steel
Mounting Surface
Phase 1
Special Features Main Lugs;Aluminium: busbar
Standard UL Listed
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=359577&lang=en-us
UPC 785901410430
GTIN 00785901410430
Item Type Meter Center;Ringed
Width 46.68
Width UOM Inch
Height 43.41
Height UOM Inch
Depth 8.28 IN
