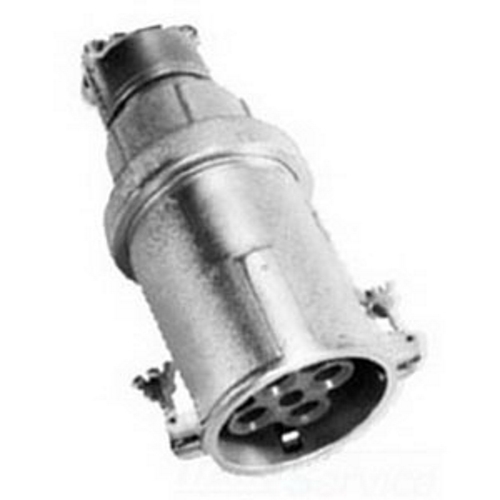

Powertite; Style 1 Pin and Sleeve Connector Body; 200 Amp, 600/250 Volt AC/DC, 4-Pole, 4-Wire
- MFR:
- Appleton Electric
- MFR #:
- ARC20044E
- UPC:
- 781381447676
- Item #:
- 84170
Powertite; Style 1 Pin and Sleeve Connector Body; 200 Amp, 600/250 Volt AC/DC, 4-Pole, 4-Wire
- MFR #:
- ARC20044E
- UPC:
- 781381447676
- Item #:
- 84170
Powertite Grounding Style 1 Connector Body, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PC
Manuals & Documentation
| Catalog Number | ARC20044E |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 200 |
| Application | For AP20044E Plug |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| NEMA Rating | 3, 3R, 4, 4X |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Phase | 3 |
| Special Features | Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 11/16 IN |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381447676 |
| GTIN | 00781381447676 |
| Item Type | Grounding Style 1 Connector Body |
| Temperature Rating | -40 To 107 DEG C |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size | 2/0 AWG - 250 MCM |
