FSD84-12-C Pan-Term Type FSD DIN End Sleeve Single Insulated Wire Ferrule, 6 AWG Stranded Conductor, 0.91 in L, Copper, Blue
- MFR:
- Panduit
- MFR #:
- FSD84-12-C
- UPC:
- 074983762699
- Item #:
- 83413
FSD84-12-C Pan-Term Type FSD DIN End Sleeve Single Insulated Wire Ferrule, 6 AWG Stranded Conductor, 0.91 in L, Copper, Blue
- MFR #:
- FSD84-12-C
- UPC:
- 074983762699
- Item #:
- 83413

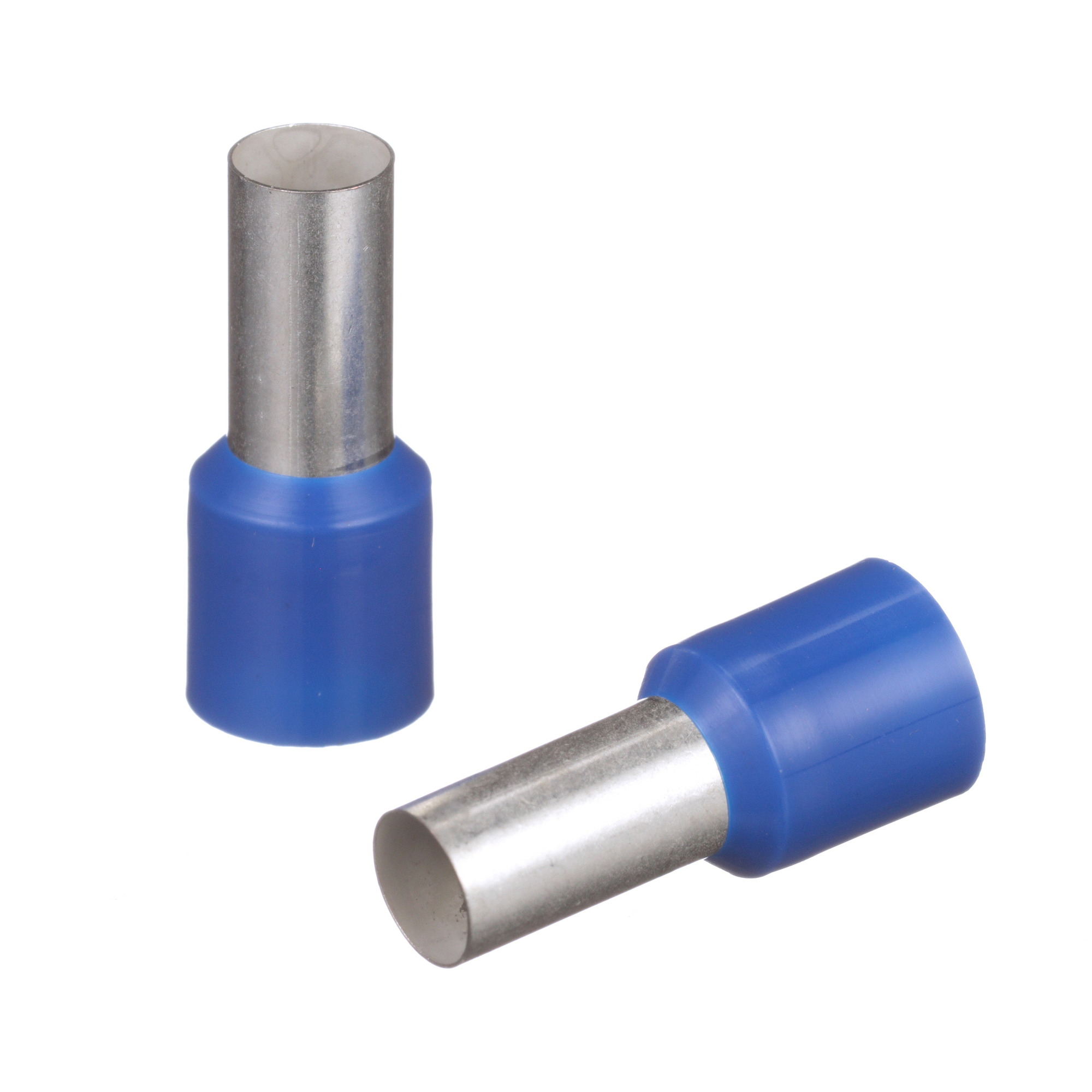

The single wire DIN end sleeve insulated ferrule in blue has a funnel entry for faster insertion and lower installation cost. It is intended for American Wire Gauge (AWG) #6 (16.0 mm) wire ferrules and supports a maximum wire insulated diameter of 0.35 (8.8 mm). The insulated ferrule is 0.91 (23.0 mm) long and has a wire strip length of 0.625 (15.9 mm). It comes in standard packages of 100.
Manuals & Documentation
| Catalog Number | FSD84-12-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Germany |
| Made in USA | No |
| Color | Blue |
| Finish | Tin-Plated |
| Insulation | Polypropylene |
| Material | Copper |
| Standard | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| UPC | 074983762699 |
| GTIN | 00074983762699 |
| Item Type | Covered Single Wire Ferrule |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Wire Size | 6 AWG |
