SCHNEIDER ELECTRIC

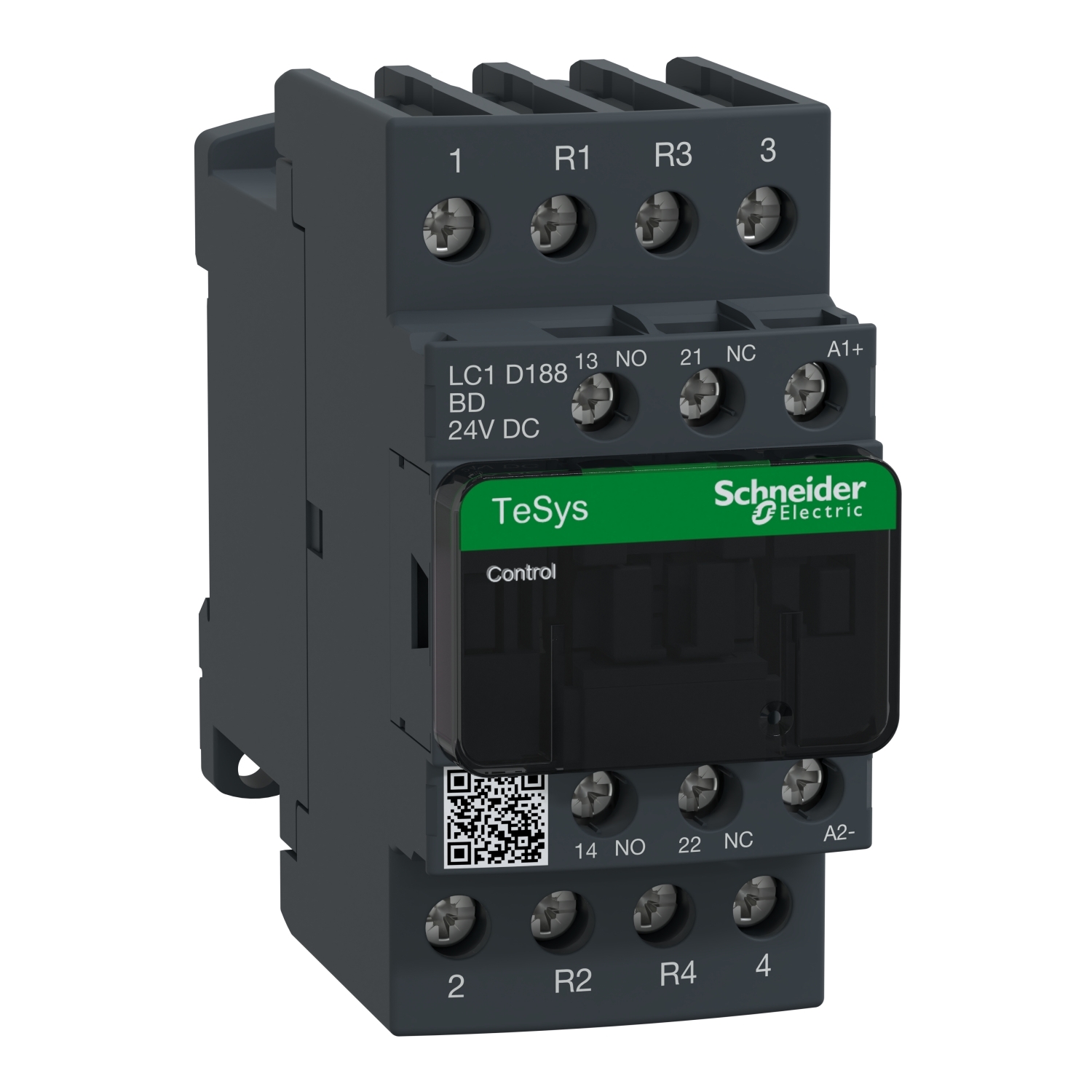

LC1D188BD TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 24 V DC V Coil, 32 A, 2NO-2NC Contact, 4 Poles

MFR:
Schneider Electric
MFR #:
LC1D188BD
Item #:
83408

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 32A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Power contacts have a 32A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 4.21 inches deep. It weighs 1.29 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Manuals & Documentation
Catalog Number LC1D188BD
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application Resistive load
Coil Voltage 24 V DC
Connection Control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid without cab
Contact Configuration 1 NO + 1 NC;2 NO + 2 NC;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Mounting Rail Plate
Operating Cycles 25...400 Hz
Special Features With integral suppression device
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=614742&lang=en-us
GTIN 03389110334128
Item Type Contactor
