Square D

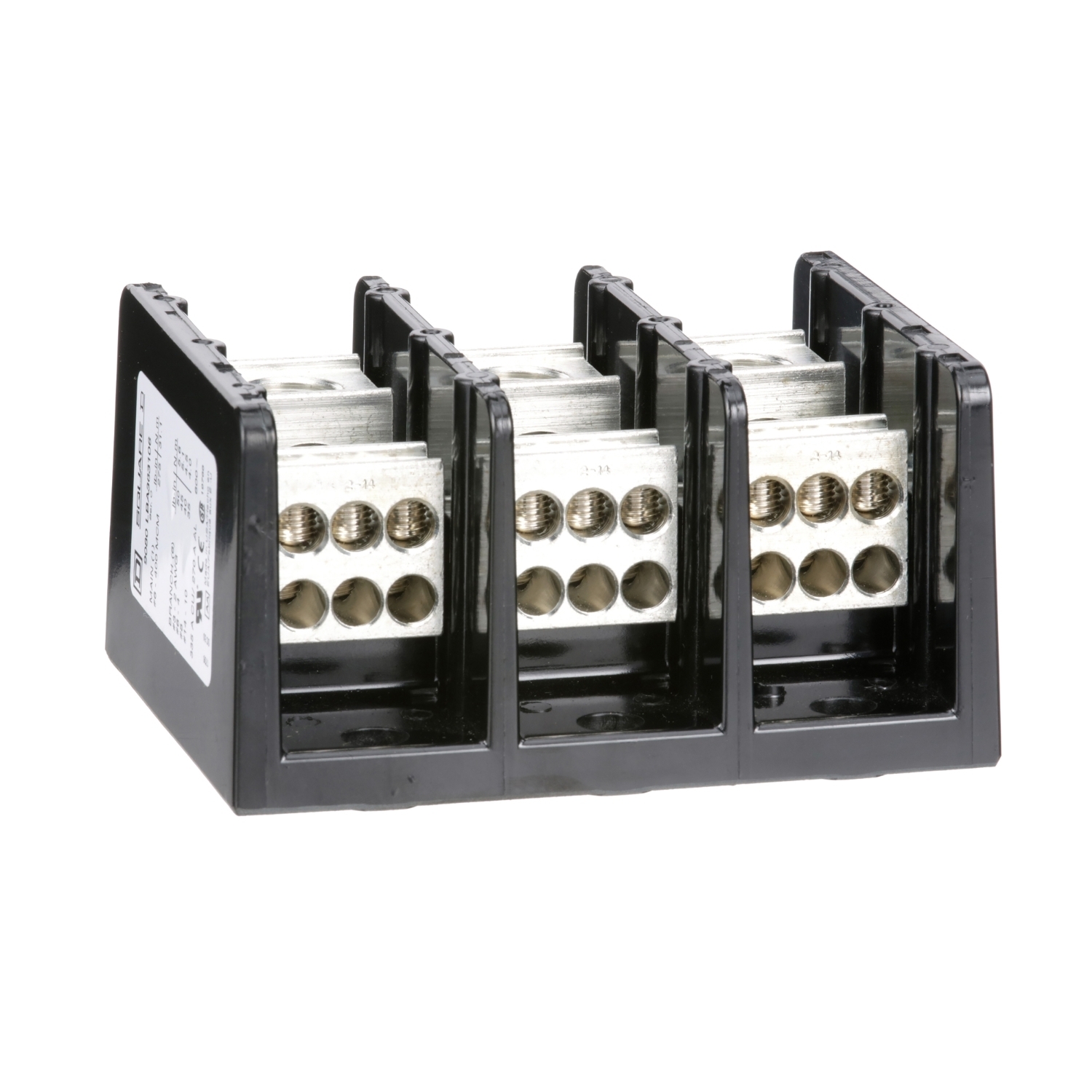

9080LBA363106 TeSys Standard Multi-Pole Power Distribution Block, 600 V AC/DC, 270/335 A, 3 Poles, 6 AWG to 400 kcmil/14 to 2 AWG Wire, Phenolic

MFR:
Schneider Electric
MFR #:
9080LBA363106
UPC:
785901097471
Item #:
82452

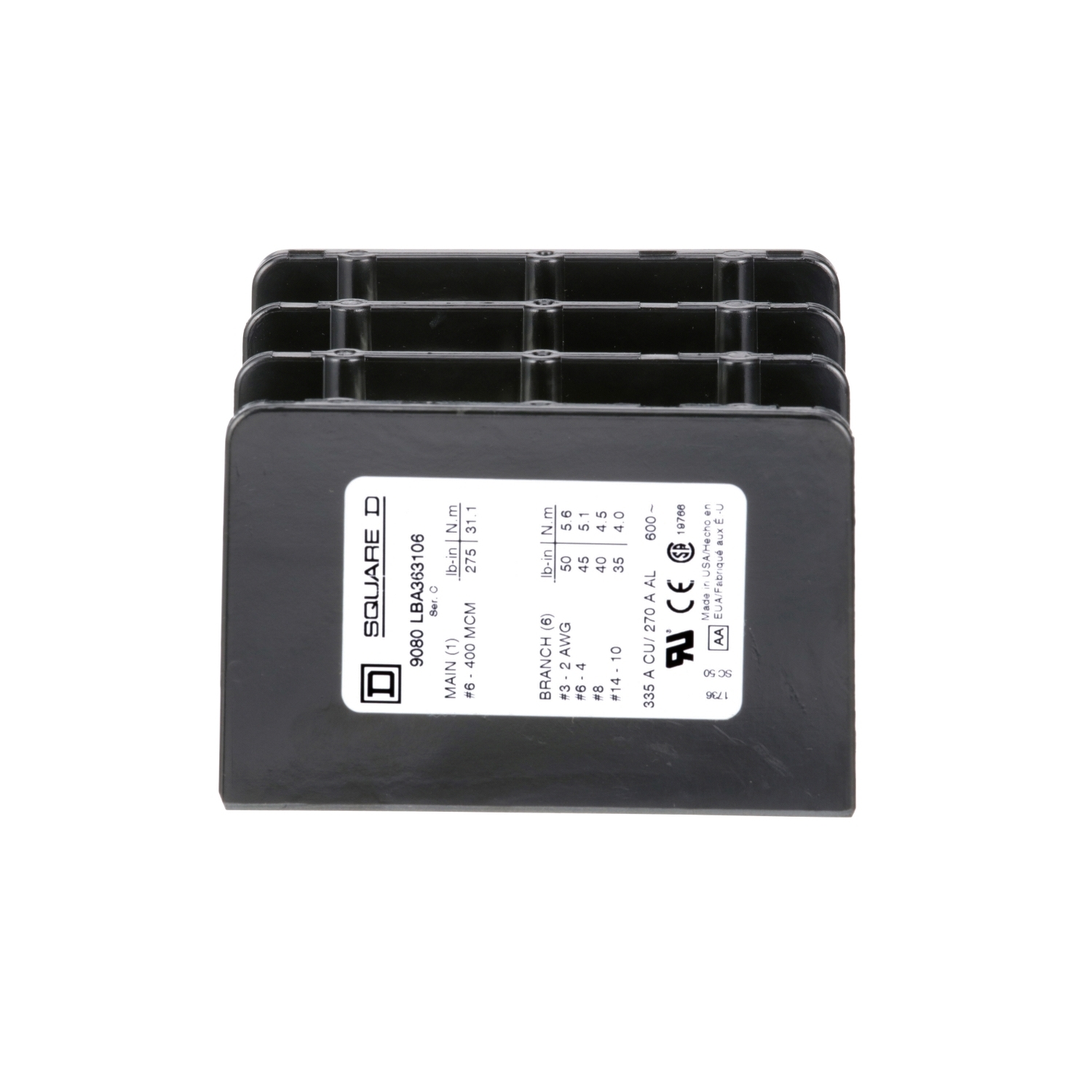

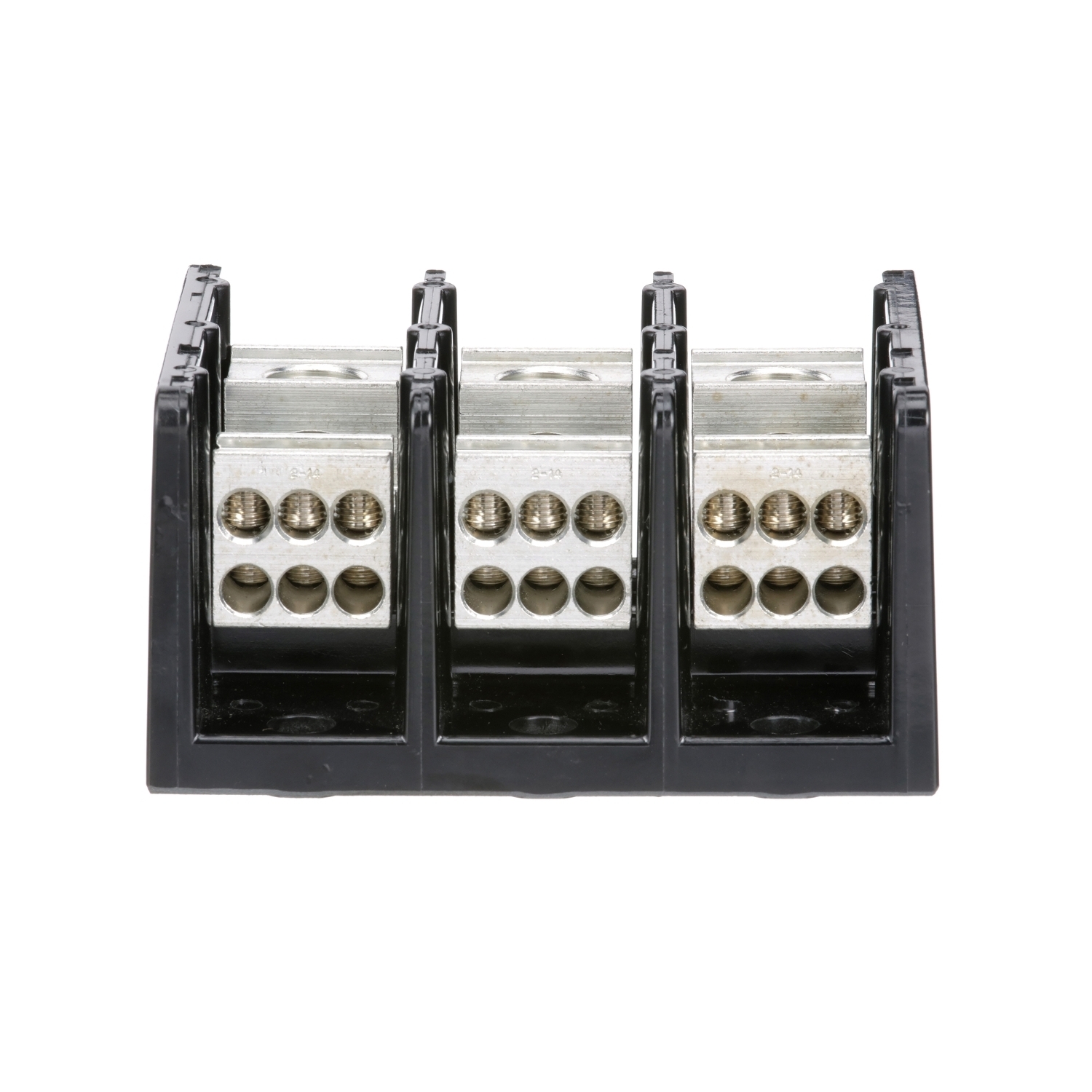

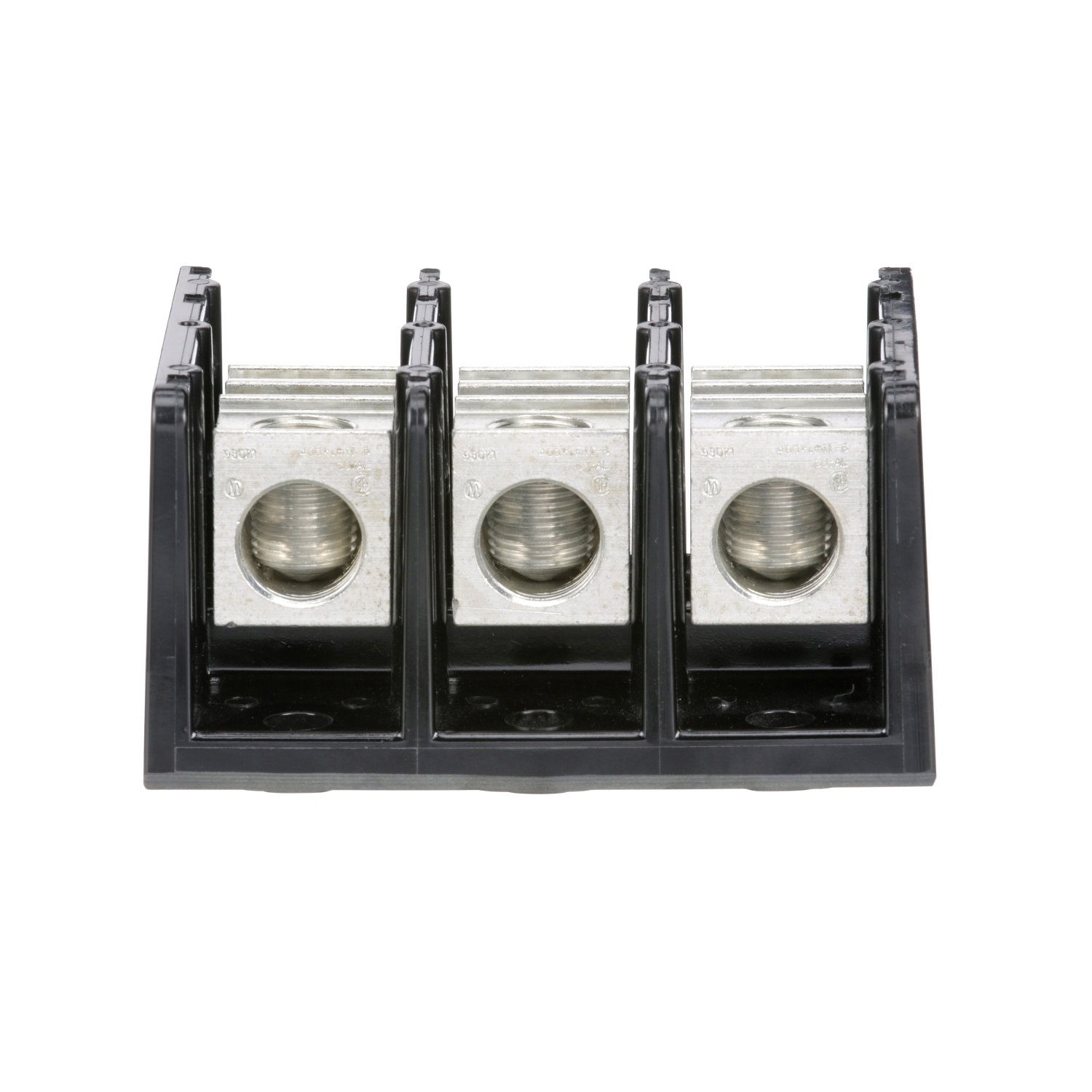

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 400 kcmil copper or aluminum wire. Each load side lug is rated to accept one #14 to #2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 335 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Manuals & Documentation
Catalog Number 9080LBA363106
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Tin plated aluminium lugs;Load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium;load lug 40 lbf.in AWG 8 copper or aluminium;load lug 35 lbf.in AWG 14 copper;load lug 50 lbf.in AWG 2 copper or aluminium;load lug 35 lbf.in AWG 12...AWG10 copper or aluminium;line lug 375 lbf.in AWG 6...400 kcmil copper or aluminium
Material Phenolic: block
Mounting Surface
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372993&lang=en-us
UPC 785901097471
GTIN 00785901097471
Item Type Power Distribution Block;9080LB33
Width 6.03
Width UOM Inch
Height 4.75
Height UOM Inch
Depth 2.91 IN
