Telemecanique

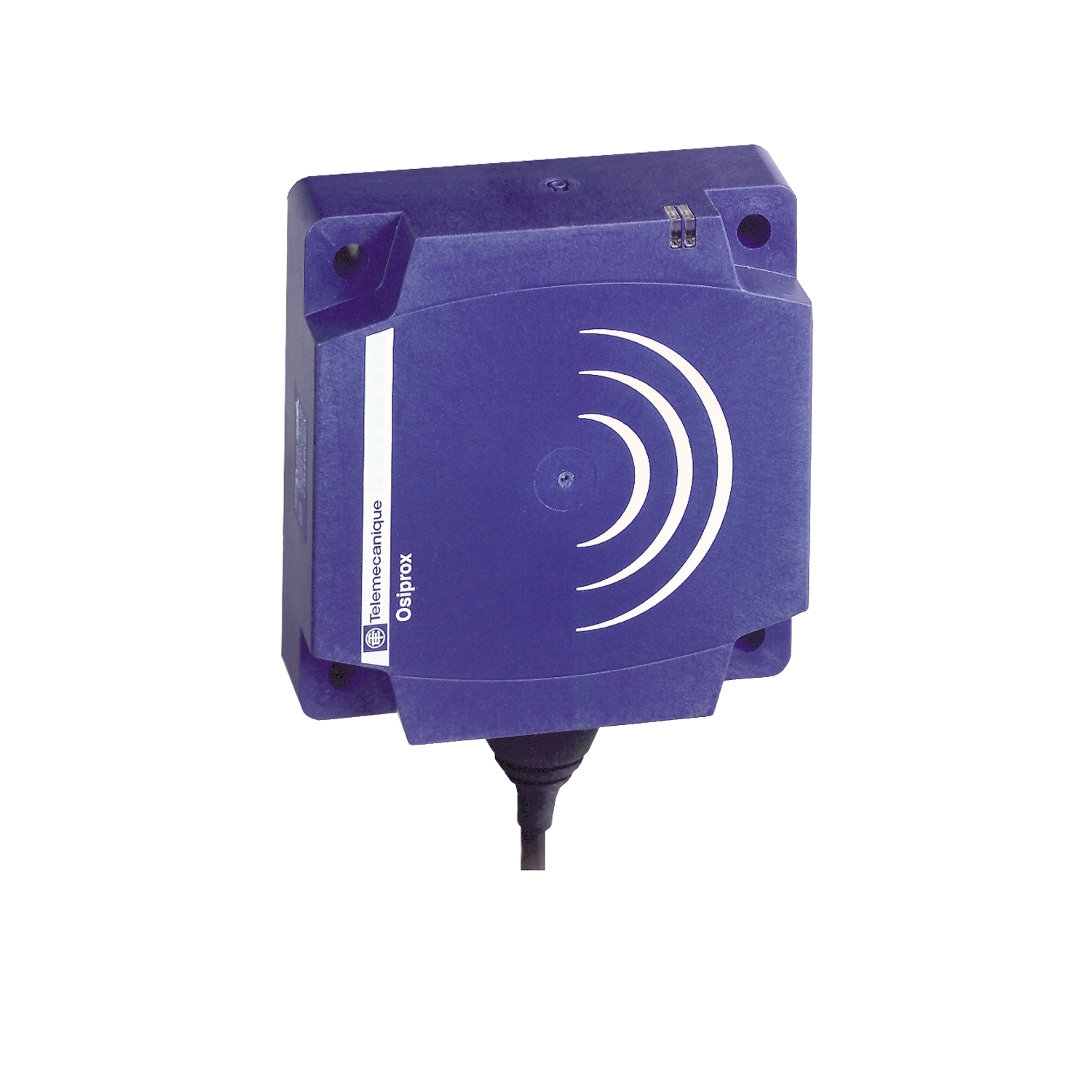

XS8D1A1MBL2 OsiSense XS8 Series Fixed Flat Form Proximity Sensor, Inductive, Discrete Output, 1NC Contact, 24 to 240 V AC/24 to 210 V DC

MFR:
Telemecanique Sensors
MFR #:
XS8D1A1MBL2
UPC:
785901939689
Item #:
82013

This XS flat (80 x 80 x 26 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+70C). It features double insulation for better people and system protection from electrical shocks. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.

Manuals & Documentation
Catalog Number XS8D1A1MBL2
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connector Cable
Control Output AC/DC 2-WIRE (UNIVERSAL) - 1 N.C.
Enclosure PBT
Indicator OUTPUT: YELLOW - POWER/TEACH: GREEN
Material Plastic
Mounting Flush
Sensing Range 40 MM FLUSH MOUNTABLE-60 MM NON FLUSH MOUNTABLE,> 1.57...2.36 IN (> 40...60 MM)
Sensor 80 MM,INDUCTIVE PROXIMITY SENSOR
Special Features PLASTIC
Standard IP68 double insulation conforming to IEC 60529;CE
Supply Voltage 24...240 V AC/DC 50/60 Hz
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=870734&lang=en-us
UPC 785901939689
GTIN 03389110142945
Item Type Inductive proximity sensor;Flat form 80 x 80 x 26
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT
Operating Temperature -25-70 A Degrees C
