SQUARE D

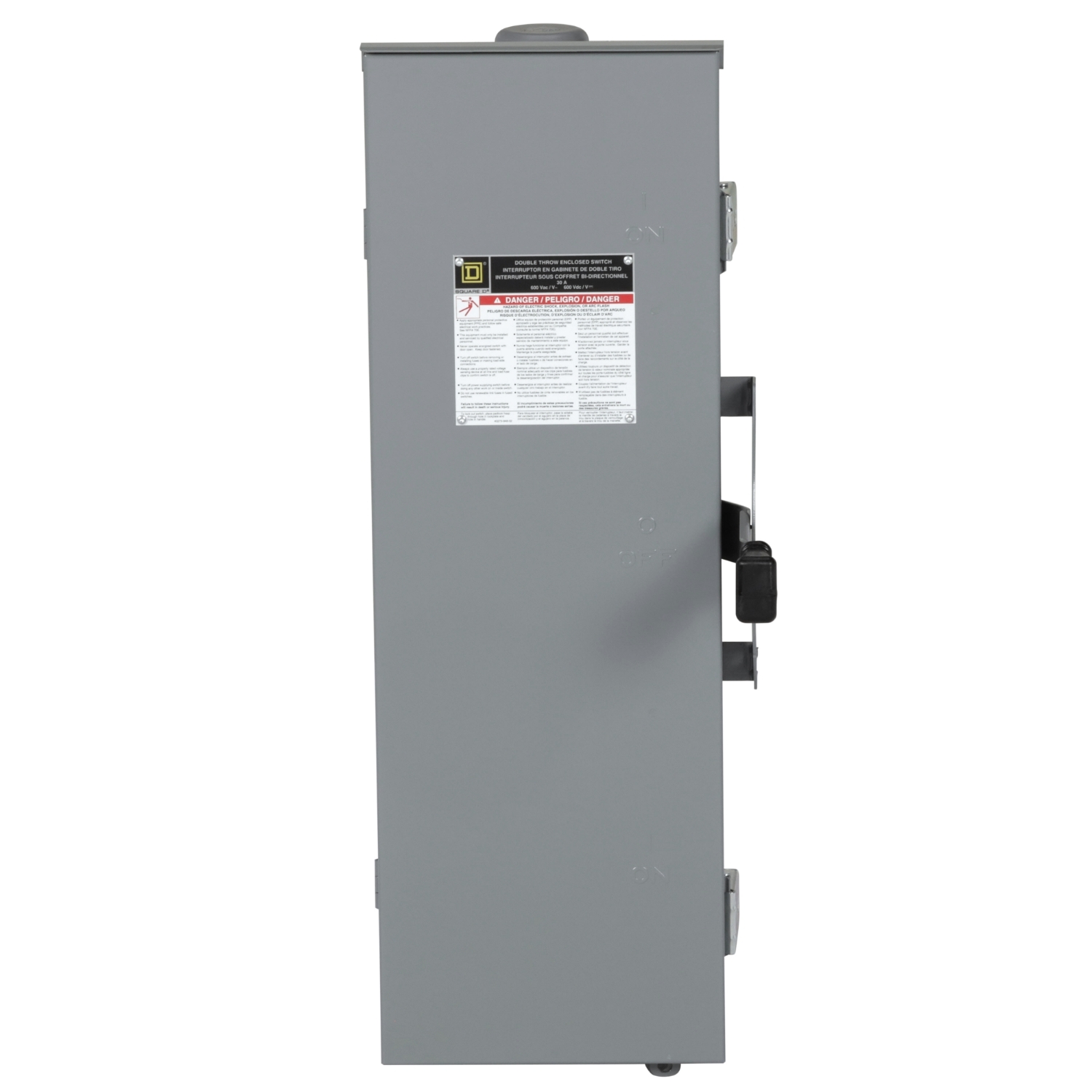

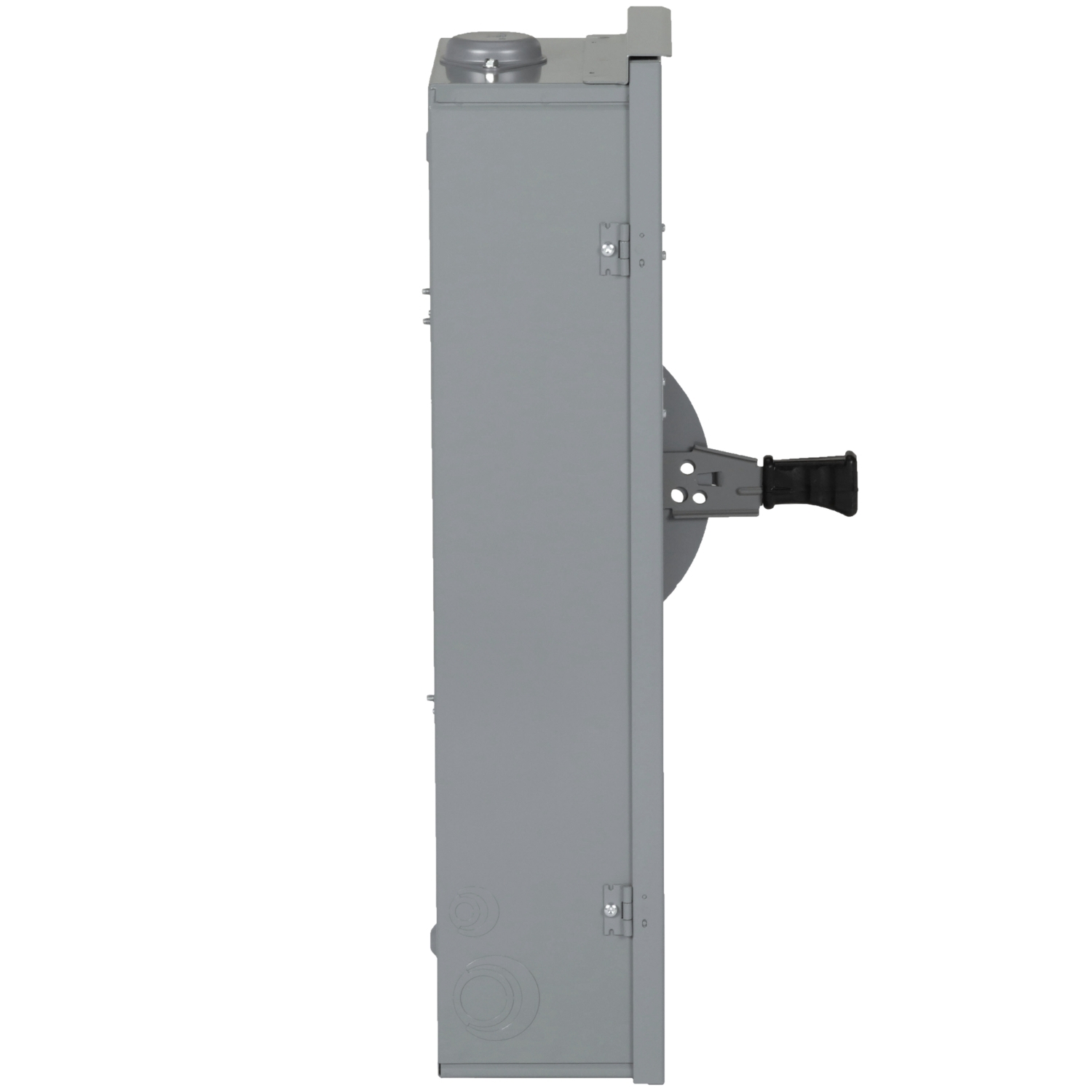

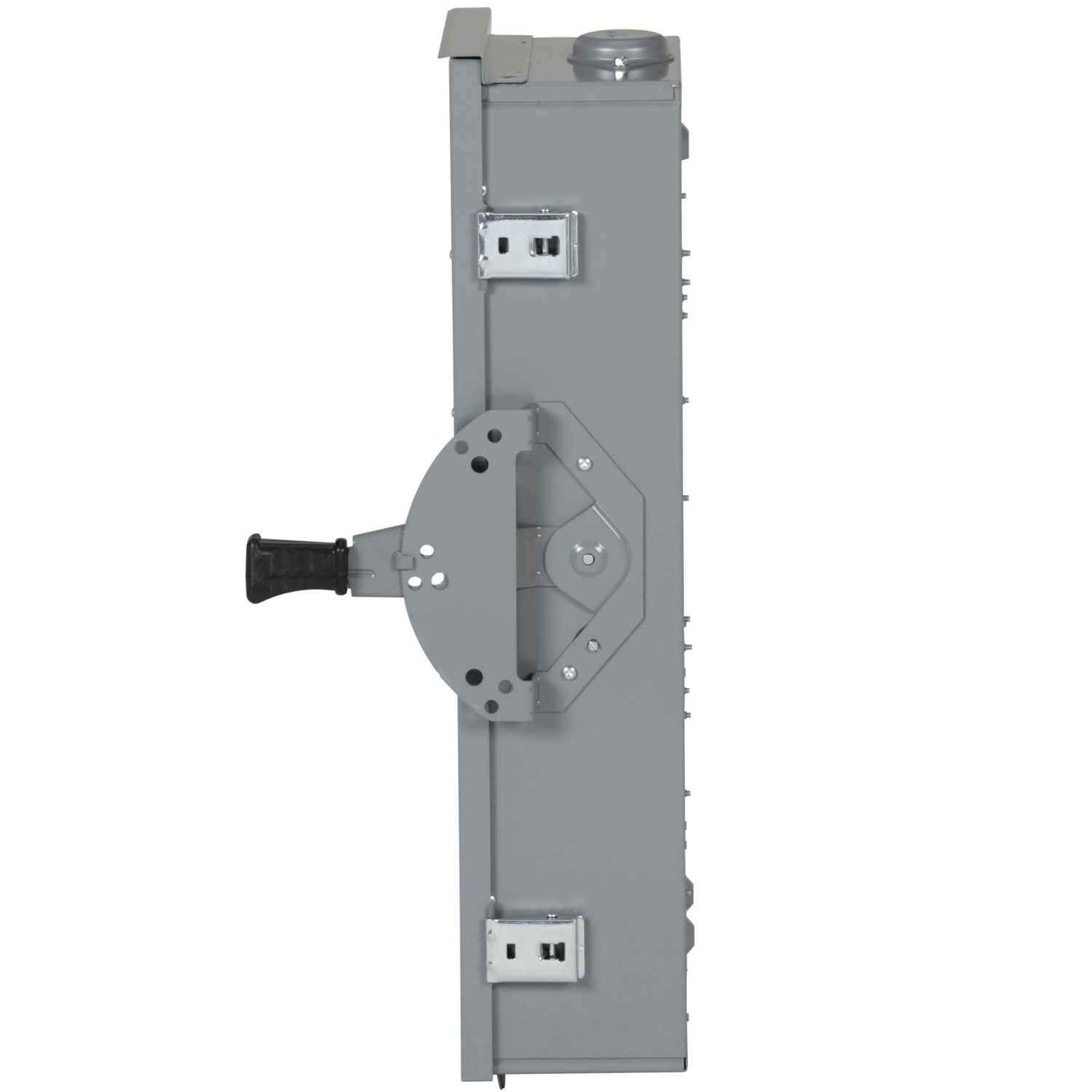

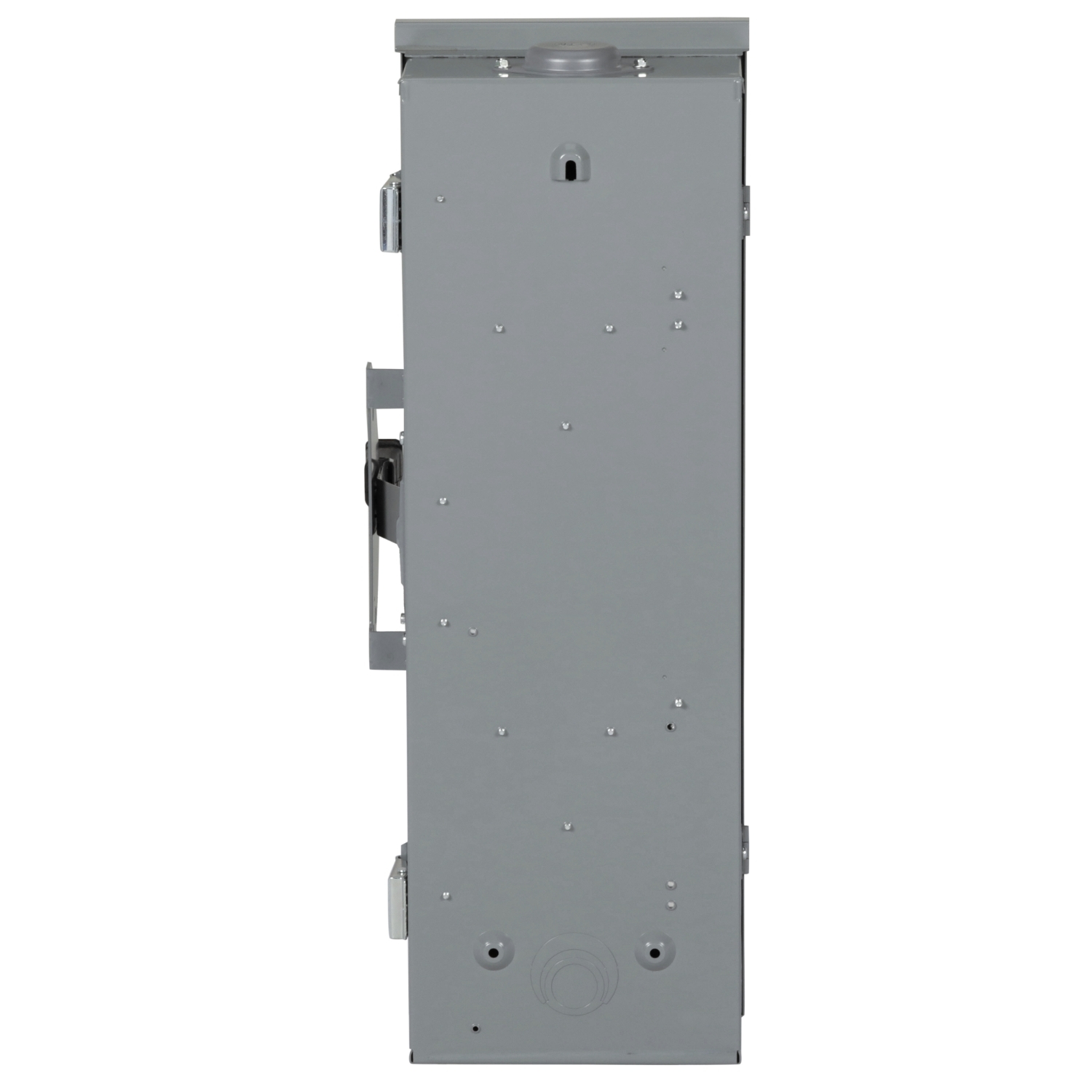

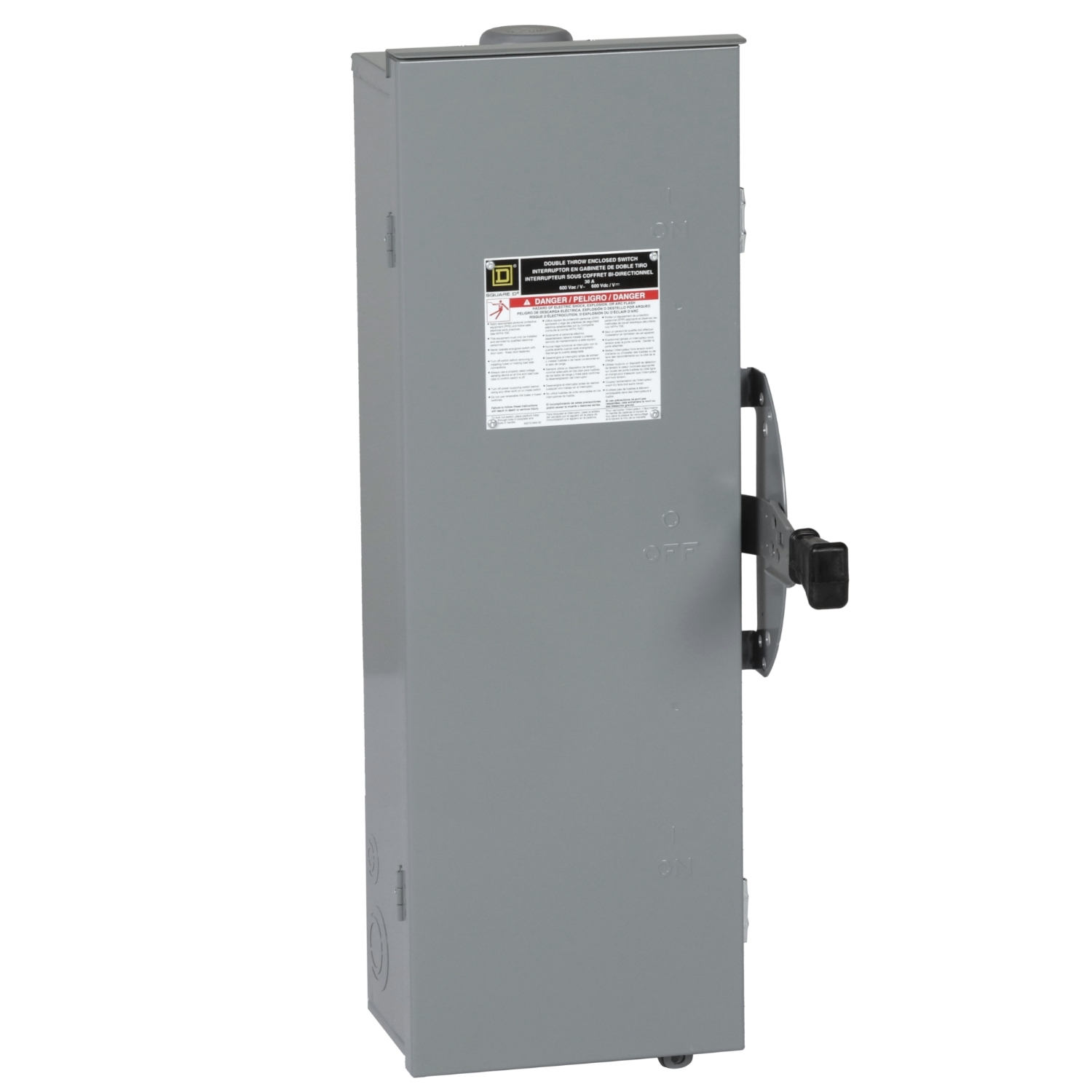

DT322RB F5 Double Throw Fusible General Purpose Safety Switch, 240 V AC/250 V DC, 60 A, 10 hp at 240 VAC 1-Phase, 15 hp at 240 VAC 3-Phase, 10 hp at 250 VDC, 3PST Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
DT322RB
UPC:
785901308546
Item #:
81441

Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a fusible disconnect and has a rated current of 60A for 240VAC and 250VDC. This heavy duty switch has a 3 wire configuration with 3 poles. The device accepts H or K R or J fuse types. The enclosure is surface mounted and is a Type 3R with bolt on provisions. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.

Manuals & Documentation
Catalog Number DT322RB
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Fuse Type H or K;R or J
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=363549&lang=en-us
UPC 785901308546
GTIN 00785901308546
Width 11.8
Width UOM Inch
Height 38.0
Height UOM Inch
Depth 6.6 IN
