Square D

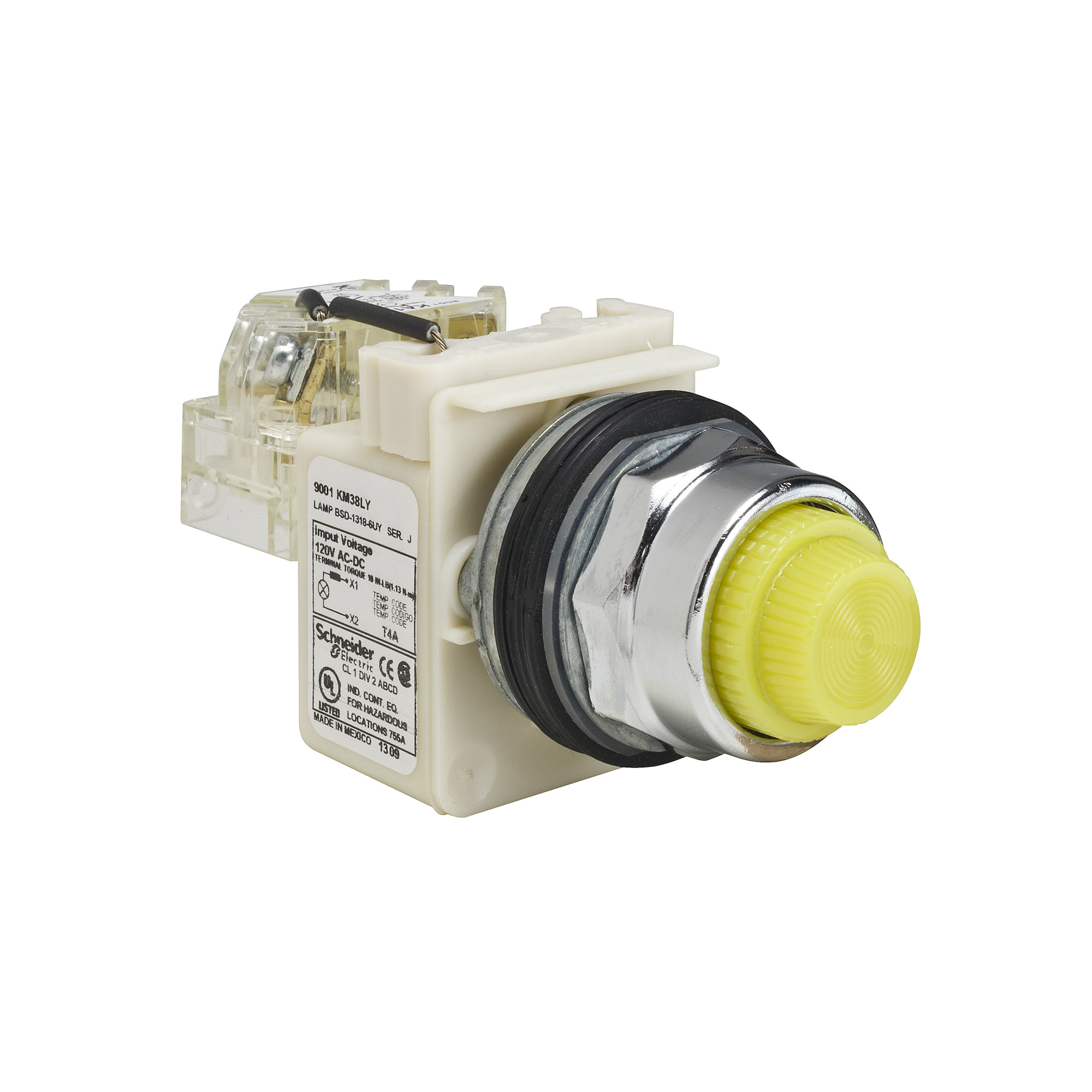

9001KT38LYY31 Harmony Type K Pilot Light, 120 V AC/DC, 1.4 VA, Fresnel Lens, Panel Mount

MFR:
Schneider Electric
MFR #:
9001KT38LYY31
UPC:
785901036210
Item #:
80983

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This push-to-test pilot light has a die cast ring nut. By pushing on the pilot light lens, you can determine if the pilot light lamp is still working. This push-to-test pilot light has a 120 VAC/VDC yellow LED light module to provide the illumination. The light module has a yellow LED lamp. This operator has one 9001KA1 contact block mounted on the back. The contact block has one normally open and one normally closed contact. Contact block has a UL Type A600, UL Type Q600 and a 10A resistive VAC rating. The contacts in this contact block are double break direct acting. Contact block and light module will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block and light module terminals are protected to meeting VDE 0106 Part 100. This push-to-test pilot light has a yellow plastic fresnel pilot light lens. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified.

Manuals & Documentation
Catalog Number 9001KT38LYY31
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Lens Material Polycarbonate
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=483779&lang=en-us
UPC 785901036210
GTIN 00785901036210
