O-Z/Gedney

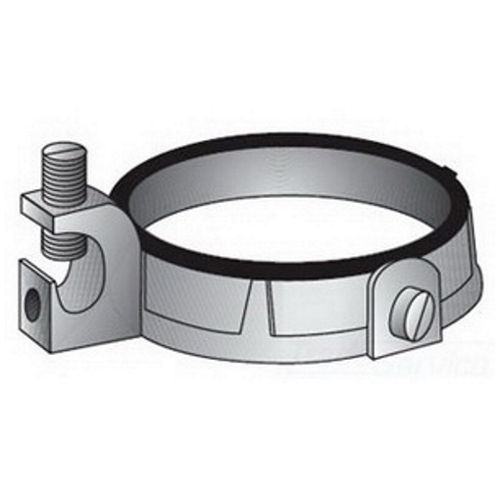

IBC-50LS-4AC Type IBC-LS-AC Grounding Bushing, 14 to 4 AWG AC Cable, 1/2 in Trade, Aluminum/Malleable Iron/Steel, Zinc/Tin Plated

MFR:
O-Z/Gedney
MFR #:
IBC-50LS-4AC
UPC:
783126303704
Item #:
80771
Manuals & Documentation

Features

  • UL temperature rating 150øC
  • Insulating liner material is UL V-O Rated
  • Set-Screw provided with each fitting locks bushing in any desired position
  • UL Listed for use with copper or aluminum grounding conductors
Catalog Number IBC-50LS-4AC
Manufacturer O-Z/Gedney
Brand O-Z/Gedney
Country of Origin Mexico
Made in USA No
Application For Rigid Conduit And IMC
Connection Set-Screw
Finish Zinc Plated Body, Tin Plated Lug, Zinc Plated Clamping Screw And Set Screws
Material Malleable Iron Body, Aluminum Lug, Steel Clamping Screw And Set Screws
Special Features O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug; They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit; Insulating liner material is UL V-O rated (self extinguishing); The plastic liner is tough, it won’t chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Set-screw provided with each fitting locks bushing in any desired position; UL listed for use with copper or aluminum grounding conductors; Lugs not sold separately
Standard Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1
UPC 783126303704
GTIN 00783126303704
Item Type Type IBC-LS-AC Insulated Grounding Bushing With Lug
Size 1/2
Temperature Rating 150 DEG C
