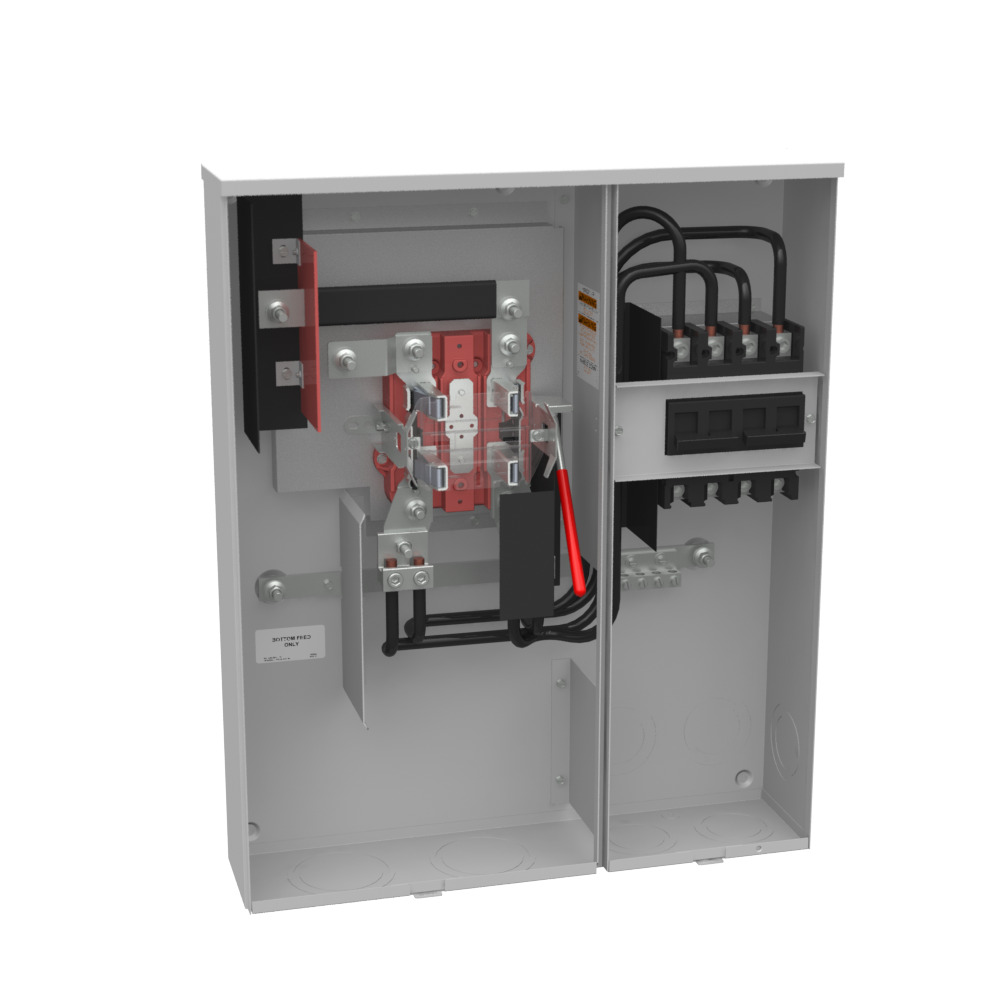

4 TERM RNGLS PLAIN TOP LVR BYPS 2-200 AMP MN BRKR
Manuals & Documentation
| Catalog Number | U4031-O-2/200 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 320 |
| Application | Meter Socket With Main |
| Bypass Type | Lever |
| Cable Entry | Underground with Side Wireway |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572139350 |
| GTIN | 00784572139350 |
| Item Type | Ringless Meter Socket |
| Length | 5.75 |
| Length UOM | Inch |
| Width | 25 |
| Width UOM | Inch |
| Height | 30 |
| Height UOM | Inch |
| Size | 5.75L x 25W x 30H |
| Terminals | 3/8 Inch Stud |
| Voltage Rating | Up to 240 Volts Alternating Current |
