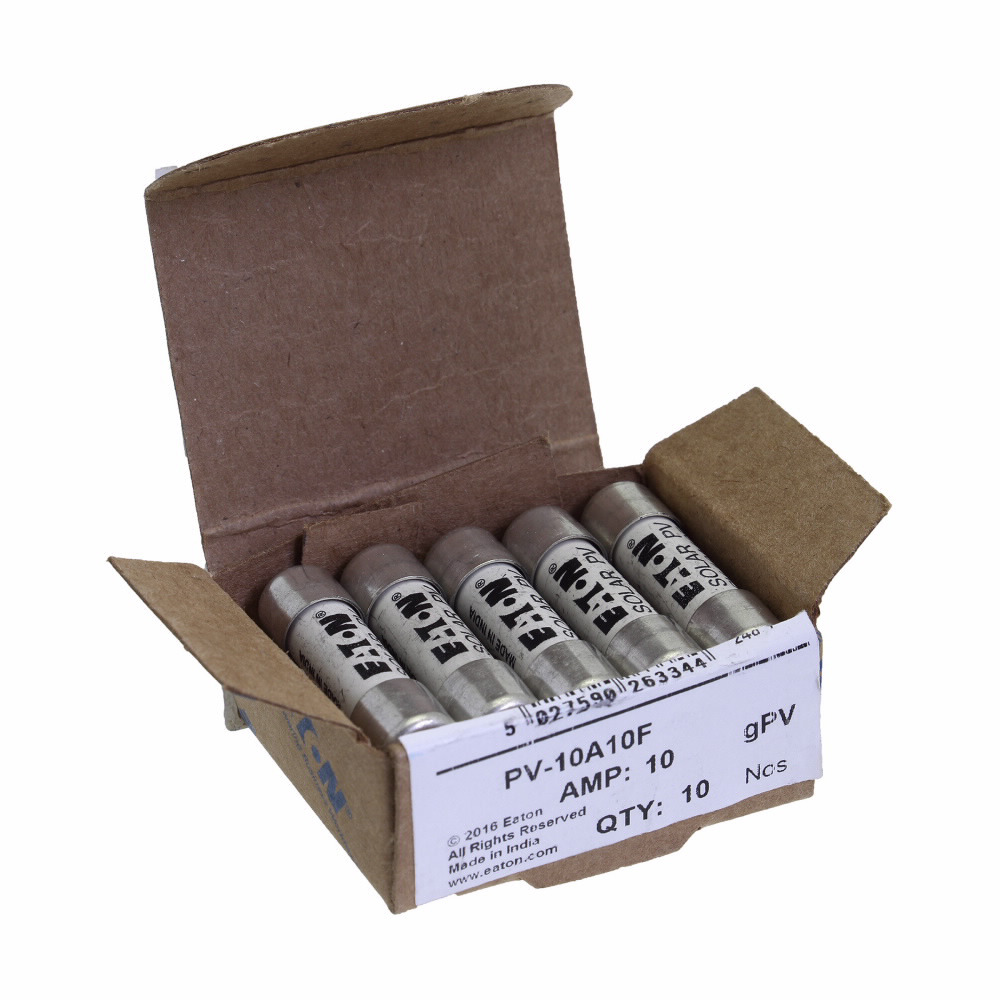

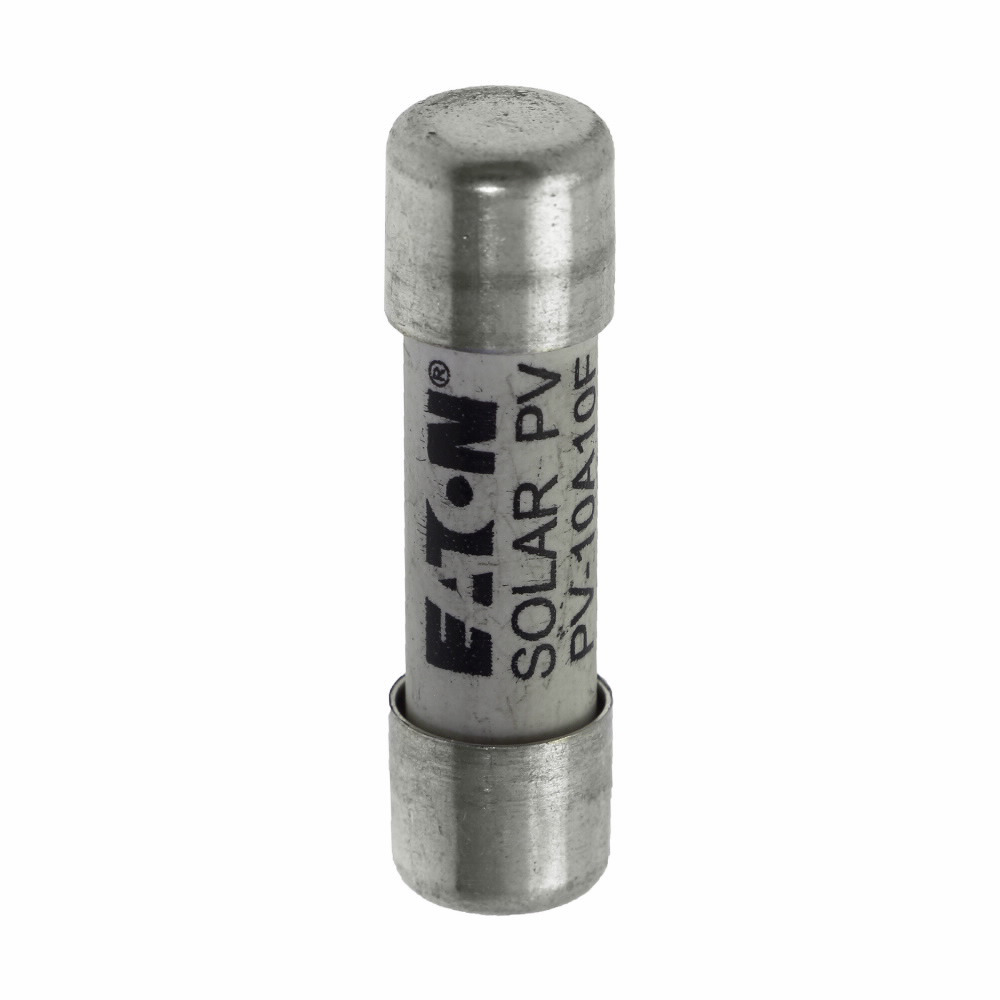

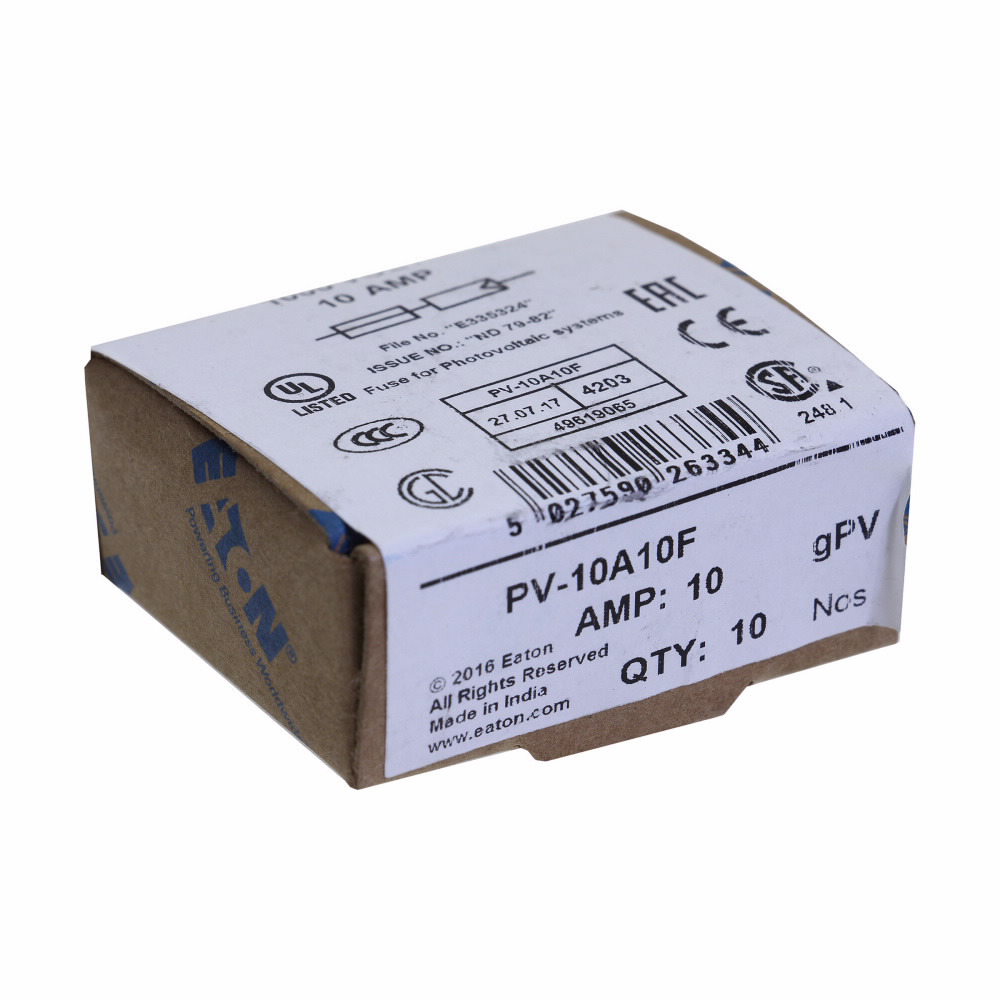

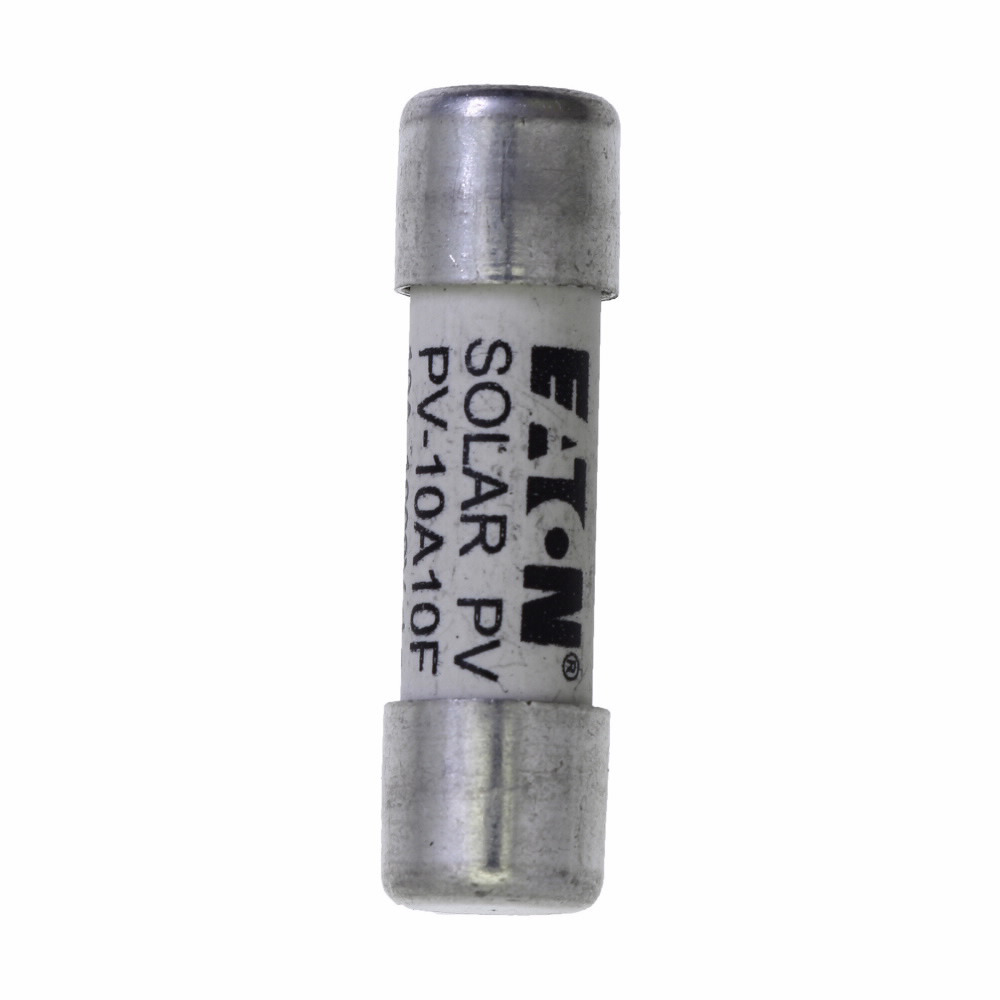

PV-10A10F High Speed Photovoltaic Fuse, 10 A, 1 kV DC, 50 kA Interrupt, Class: gPV, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- PV-10A10F
- UPC:
- 051712204019
- Item #:
- 803814
PV-10A10F High Speed Photovoltaic Fuse, 10 A, 1 kV DC, 50 kA Interrupt, Class: gPV, Cylindrical Body
- MFR #:
- PV-10A10F
- UPC:
- 051712204019
- Item #:
- 803814
Eaton's Bussmann series photovoltaic gPV solar fuses are specifically designed to protect DC system up to 1500 V d.c. They are suitable for the DC protection of solar panels, combiner boxes, recombiner units and battery storage.
| Catalog Number | PV-10A10F |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 10 |
| Application | Generation - Renewable Energy - Alternative Energy|Generation - Renewable Energy - Solar|Generation - Renewable Energy - Storage Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 50 kAIC |
| Material | Ceramic |
| Special Features | Minimum interrupting rating 1.3 x In, Time constant: 1-3 ms |
| Standard | CSA Certified ,IEC Rated ,UL approval pending ,UL Listed ,UL 2579 ,CCC Marked,RoHS Compliant,CE Marked |
| UPC | 051712204019 |
| GTIN | 00051712204019 |
| Item Type | High speed photovoltaic fuse |
| Weight UOM | Grams |
| Size | 10.00 mm Diameter X 38.00 mm Length |
| Voltage Rating | 1000 Vdc |
