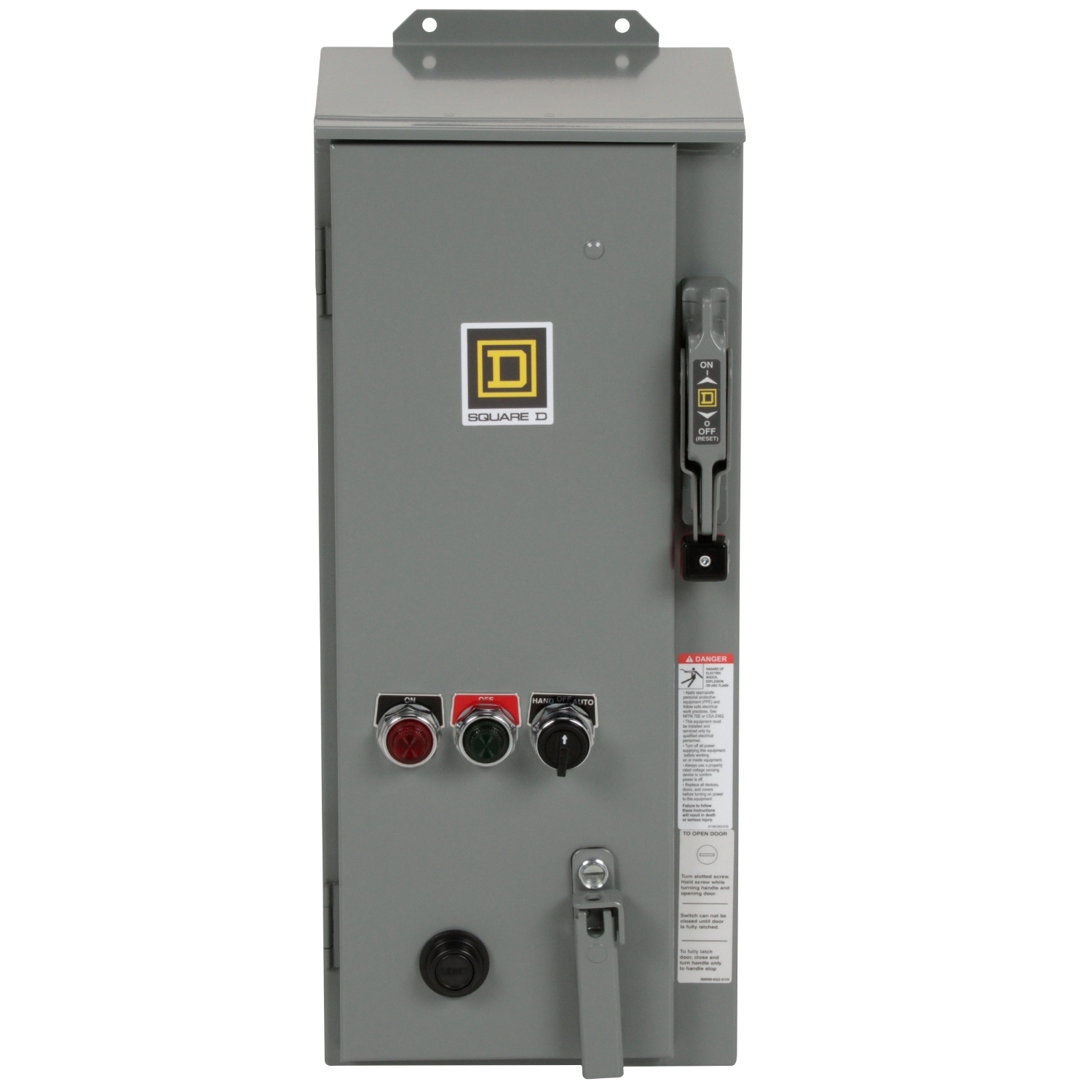

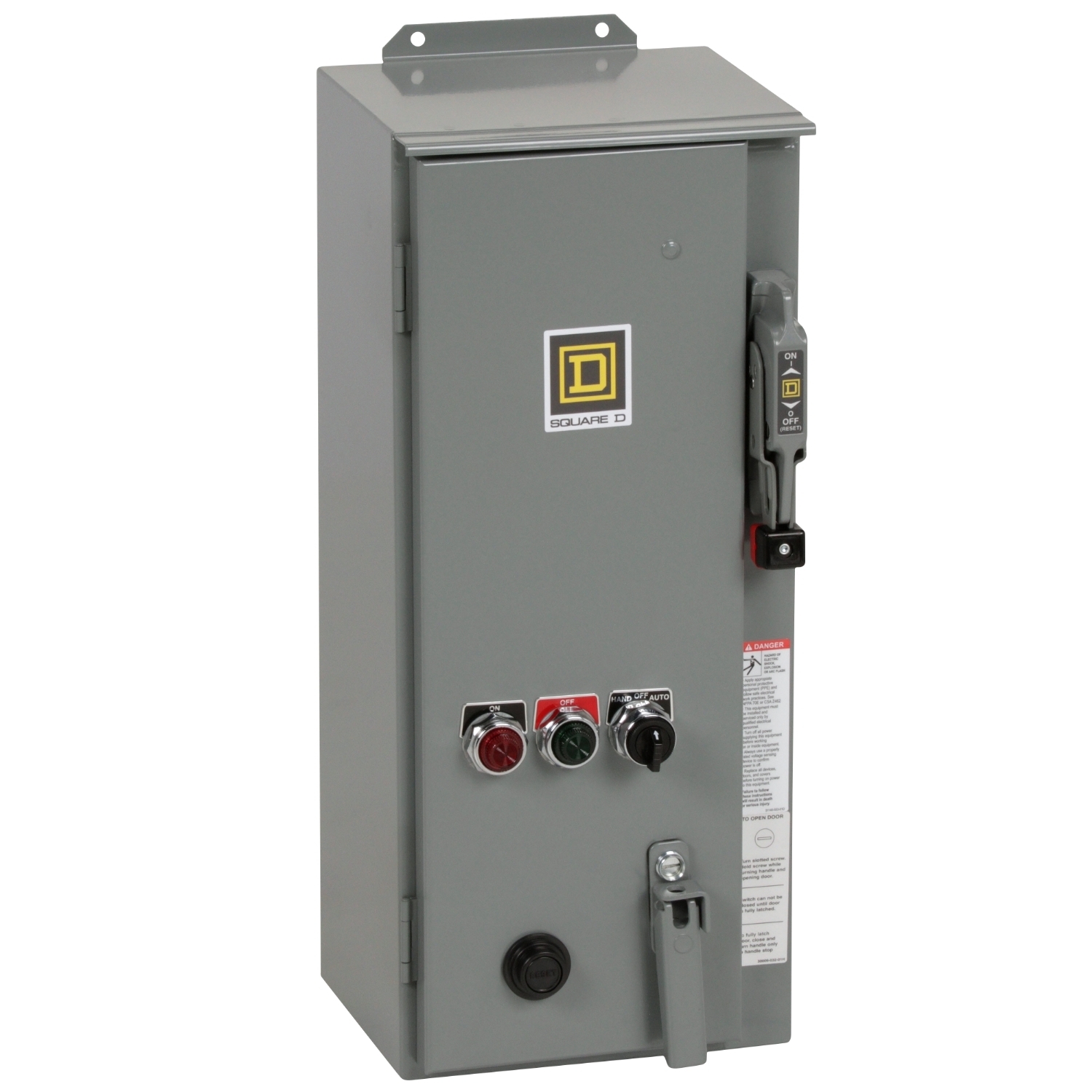

8539SCASP6 Type S Combination Magnetic Starter With Mag-Gard Electronic Motor Circuit Protector, 110 V AC at 50 Hz/120 V AC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 12 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8539SCASP6
- UPC:
- 785901955764
- Item #:
- 801217
8539SCASP6 Type S Combination Magnetic Starter With Mag-Gard Electronic Motor Circuit Protector, 110 V AC at 50 Hz/120 V AC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 12 Enclosure
- MFR #:
- 8539SCASP6
- UPC:
- 785901955764
- Item #:
- 801217
Type S nonreversing circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of 5 HP at 208, 7.5 HP at 240 VAC and 10 HP at 460 and 575 VAC poly phase. Combination starter has an HLL36030M71 circuit breaker. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a Motor Logic solid state overload relay to detect over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 24.0 inches tall, 9.50 inches wide and 8.34 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
Manuals & Documentation
| Catalog Number | 8539SCASP6 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901955764 |
| GTIN | 00785901955764 |
| Width | 8.34 |
| Width UOM | Inch |
| Height | 24.0 |
| Height UOM | Inch |
| Depth | 9.5 IN |
