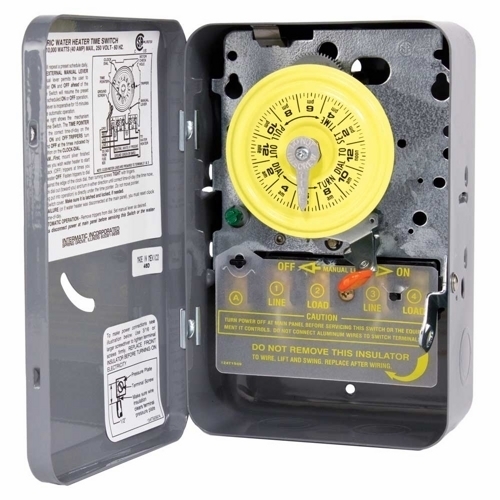

WH40 Mechanical Timer Switch, 1 hr Setting, 208 to 277 V AC, 2 hp, 5 hp, DPST Contact, 2 Poles
- MFR:
- Intermatic
- MFR #:
- WH40
- UPC:
- 078275007406
- Item #:
- 79846
WH40 Mechanical Timer Switch, 1 hr Setting, 208 to 277 V AC, 2 hp, 5 hp, DPST Contact, 2 Poles
- MFR #:
- WH40
- UPC:
- 078275007406
- Item #:
- 79846
With the easy-to-set "Yellow Dial," these time switches allow for basic control of electric water heaters. These time switches offer a minimum ON/OFF time of one hour, and are available for 208-250 VAC applications. With the proven reliability of our mechanical line, these time switches provide dependable electric water heater control.
Manuals & Documentation
| Catalog Number | WH40 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Enclosure | NEMA Type 1 Indoor Steel |
| Number of Poles | 2 |
| Special Features | Features: Enables Shifting Electricity use Into Off-Peak Time Periods to Reduce Utility Cost |
| Standard | cULus, cCSAus Certified, HVACR |
| UPC | 078275007406 |
| GTIN | 00078275007406 |
| Item Type | Mechanical Water Heater Time Switch |
| Size | 7-3/4 HEIGHT X 5 WIDTH X 3 DEPTH IN, 19.7 HEIGHT X 12.7 WIDTH X 7.62 DEPTH CM |
| Operating Temperature | -40 to +130 DEG F, -40 to +54 DEG C |
| Voltage Rating | 208 - 277 |
| Wattage | 10000 W |
