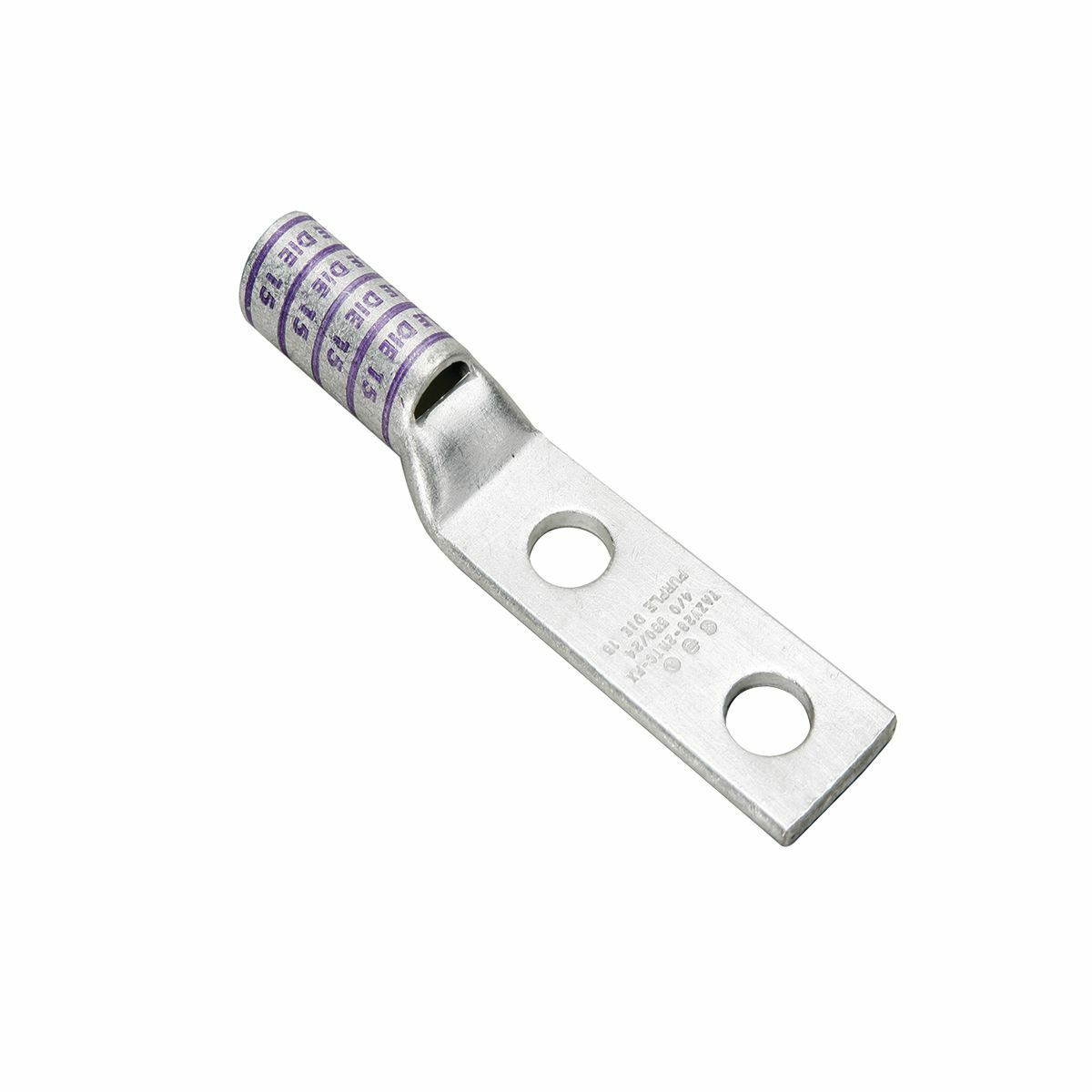

YAZ292TC38 YAZ-2TC 2-Hole Compression Lug With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: 16, 3/8 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZ292TC38
- UPC:
- 781810065440
- Item #:
- 795570
YAZ292TC38 YAZ-2TC 2-Hole Compression Lug With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: 16, 3/8 in Stud, Tin Plated Copper
- MFR #:
- YAZ292TC38
- UPC:
- 781810065440
- Item #:
- 795570
Manuals & Documentation
| Catalog Number | YAZ292TC38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Die Index: 16, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Wire Strip Length: 1-11/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W29VT Die, (4), X29RT Die, (8), Hydraulic: BCT500HS, Y500CTHS Tool, W29VT, W29RT Die, (4), X29RT Die, (8), Y35, Y39, Y750, PAT750 Tool, U29RT Die, (2), Y46 Tool, U29RT Die With PUADP-1 Adapter, (2), Color Code: Yellow, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2) |
| Standard | UL 486A-486B |
| UPC | 781810065440 |
| GTIN | 00781810065440 |
| Item Type | Long Barrel, Skive, Tin Plated |
| Voltage Rating | 35 |
