SQUARE D

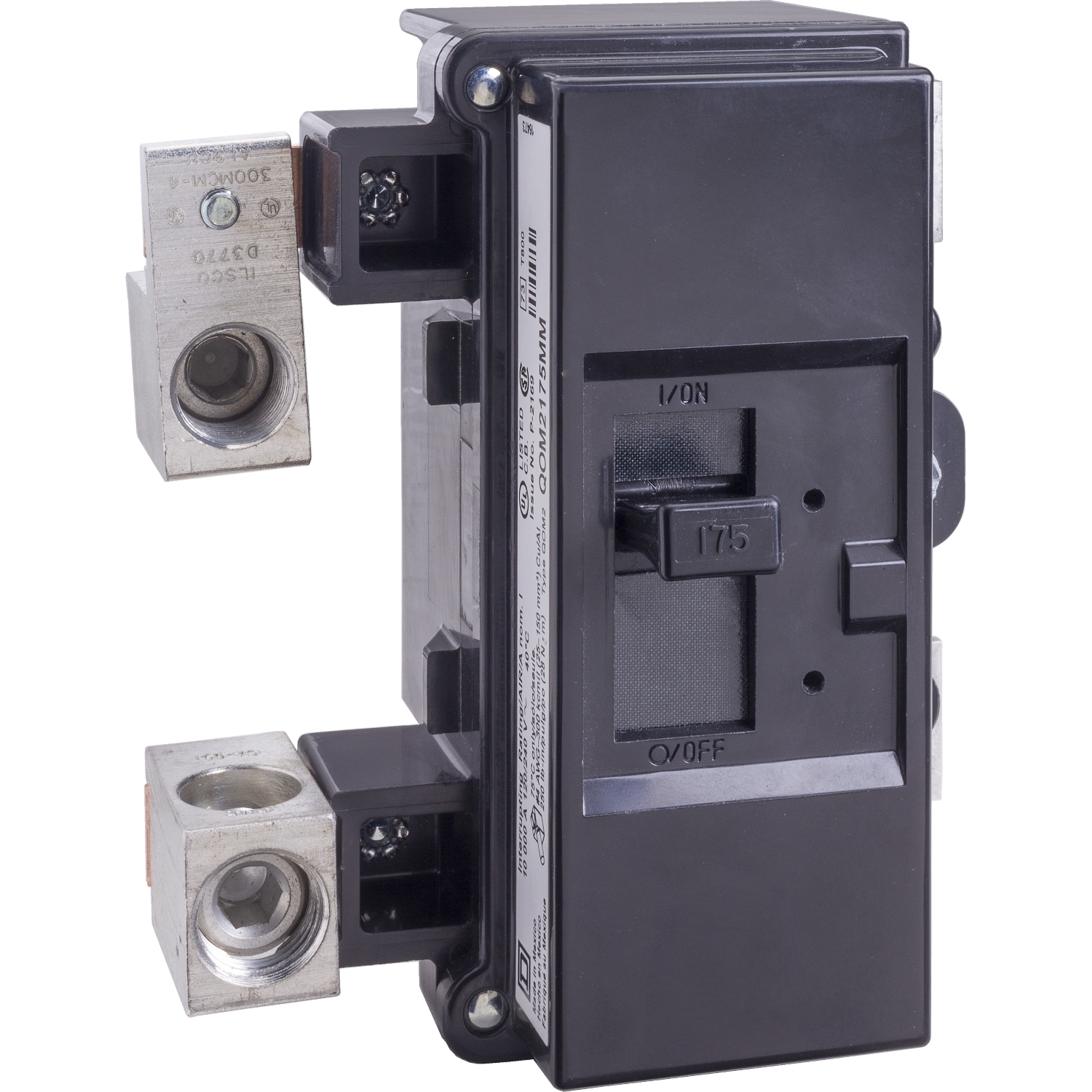

QOM2175MM Circuit Breaker, 175 Amp, 2 Pole, 120/240V

MFR:
Schneider Electric
MFR #:
QOM2175MM
UPC:
785901168157
Item #:
79375

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 175A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Manuals & Documentation
Catalog Number QOM2175MM
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Phase 1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=436401&lang=en-us
UPC 785901168157
GTIN 00785901168157
