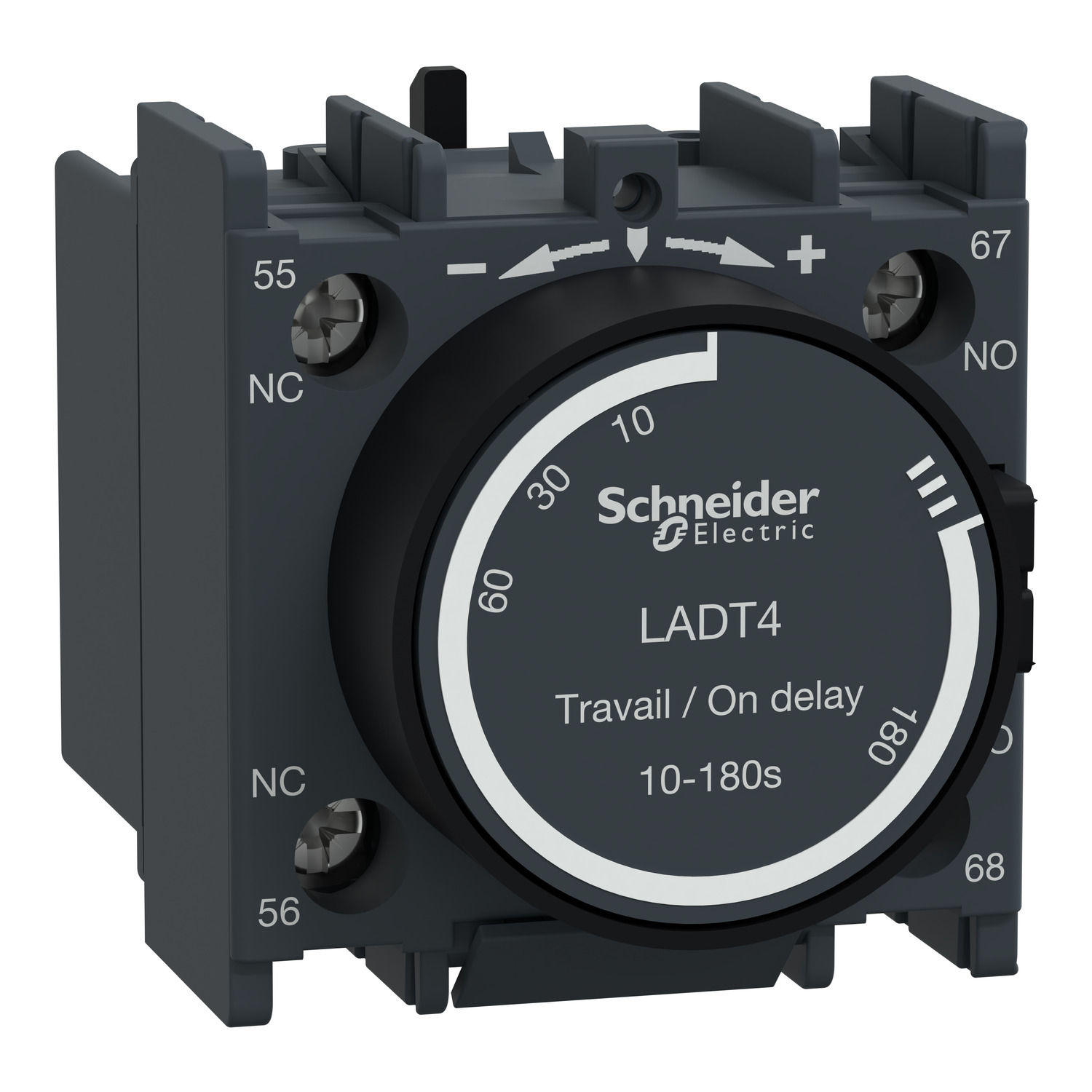

TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 10-180s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Manuals & Documentation
Catalog Number LADT4
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Color Dark Gray
Standard IECEE CB Scheme;UL;CSA;CCC;EAC;UKCA;EN/IEC 60947-5-1;UL 60947-5-1;CSA C22.2 No 60947-5-1;GB/T 14048.5;EN 50012;IEC 60335-1:Clause 30.2;IEC 60335-2-40:Annex JJ;UL 60335-2-40:Annex JJ
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=609994&lang=en-us
GTIN 03389110385977
