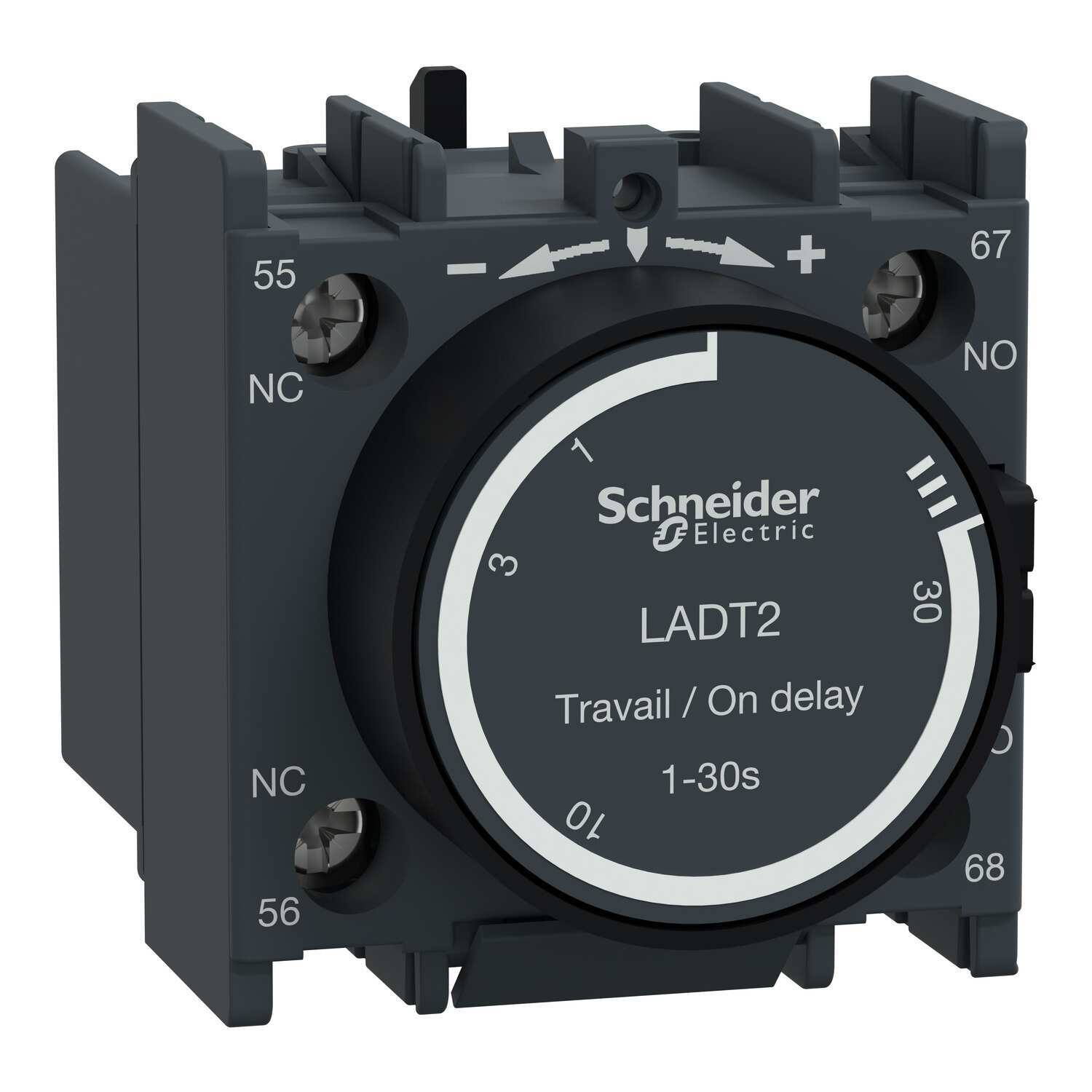

TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 1-30s, connection by screw clamp terminals. The one NO and one NC contacts can be used in the control circuit. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC). TeSys Deca contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.

Manuals & Documentation
Catalog Number LADT2
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Color Dark Gray
Standard IECEE CB Scheme;UL;CSA;CCC;EAC;UKCA;EN/IEC 60947-5-1;UL 60947-5-1;CSA C22.2 No 60947-5-1;GB/T 14048.5;EN 50012;IEC 60335-1:Clause 30.2;IEC 60335-2-40:Annex JJ;UL 60335-2-40:Annex JJ
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=609980&lang=en-us
GTIN 03389110385892
