Appleton

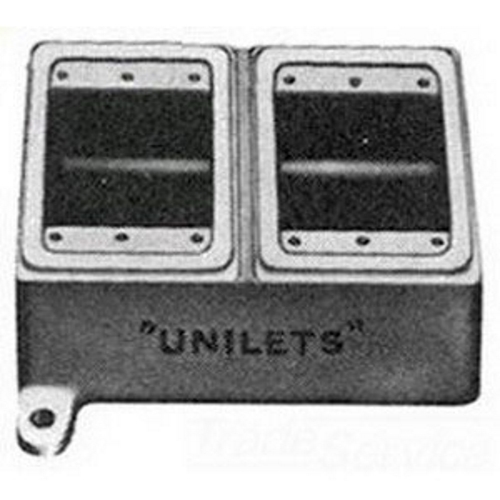

Unilet; Multiple Cover 2-Gang Box; 2.690 Inch Depth, Lug Mount, Gray

MFR:
Appleton Electric
MFR #:
FD-2L
UPC:
781381334556
Item #:
78975

UNILETS FDH Deep Depth 2-Gang Cast Device Box, Material: Malleable Iron, Mounting: Lugs, Knockouts: No, Height: 4.56 IN, Width: 6-1/2 IN, Depth: 2.69 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL

Manuals & Documentation

Features

  • Dimension: 6.500 Inch Width x 2.690 Inch Depth x 4.560 Inch Height
  • Fits standard sheet metal device covers with four mounting holes
Catalog Number FD-2L
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit And IMC
Knockouts No
Material Malleable Iron
Mounting Lugs
Special Features Furnished with internal ground screw; Use with single-gang covers; Corrosion resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Complete selection of covers, receptacles, plugs, gaskets and accessories; Covers have captive screws to speed installation, prevents loss of screws; Internal grounding screws standard; Brazed threaded hubs for threaded conduit from 1/2 IN through 1-1/2 IN and brazed union hubs from 1/2 IN through 1-1/4 IN; Smooth, rounded integral bushing in each hub protects conductor insulation; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for co
Standard UL 514 A, UL File Number E2527, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381334556
GTIN 00781381334556
Item Type FDH Deep Depth 2-Gang Cast Device Box
Length 9.1000
Length UOM Inch
Width 6.1000
Width UOM Inch
Height 2.9000
Height UOM Inch
Weight 4.710
Weight UOM Pounds
