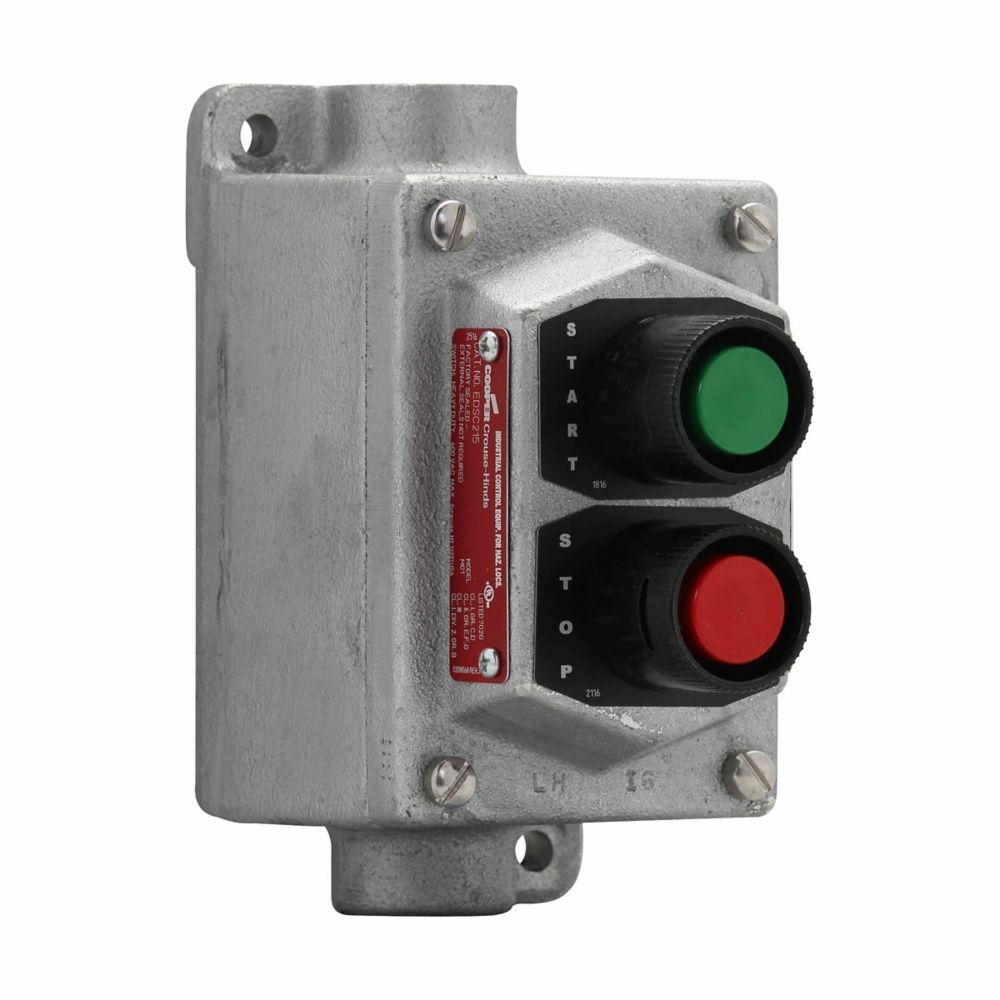

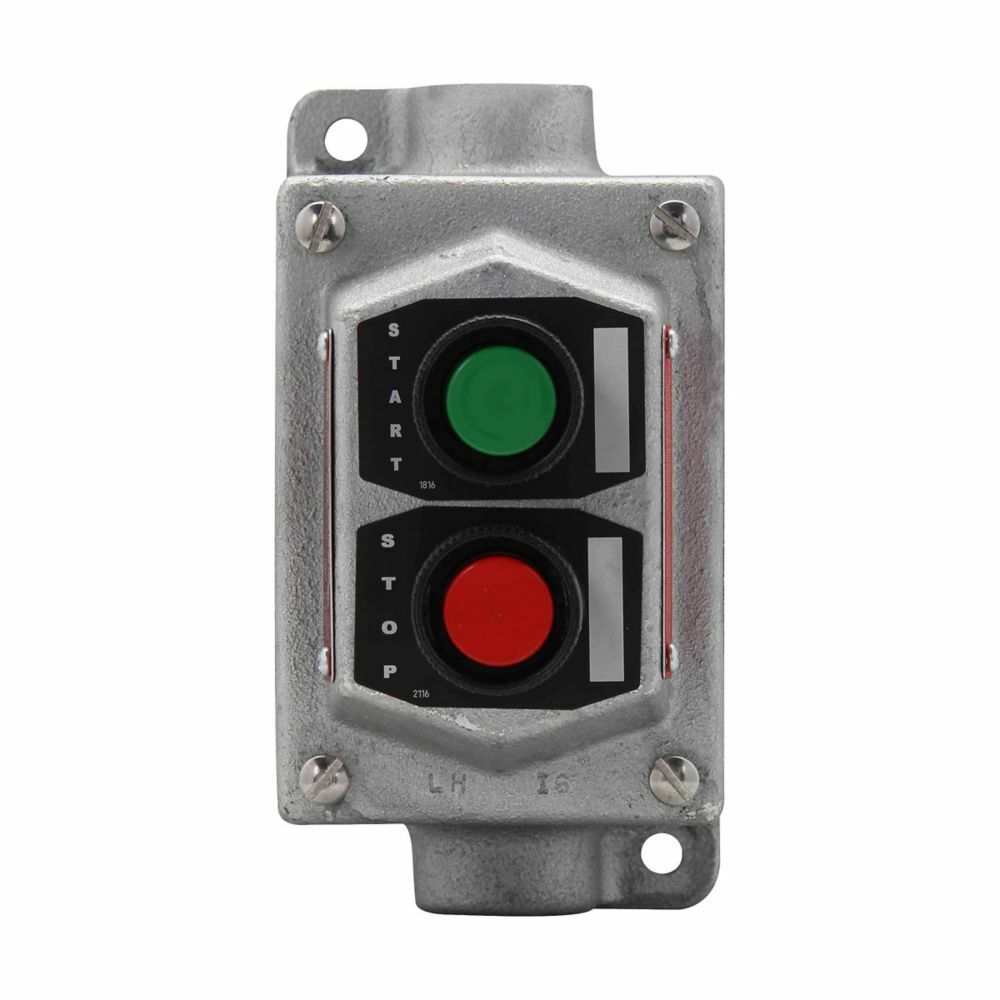

EFSC215 1-Gang Factory Sealed Heavy Duty Through-Feed Pushbutton Control Station, 600 VAC, 1NO-1NC Contact, 2 Operators, 3/7B/7C/7D/9E/9F/9G NEMA Rating

MFR:
Eaton Crouse-Hinds
MFR #:
EFSC215
UPC:
782274290607
Item #:
789089

New EDSX series available with NEMA 4X protection for Class I, Division 2 hazardous areas.Crouse-Hinds series EDSX, EDS and EFS hazardous area pushbutton, pilot light and selector switch control stations are used in conjunction with magnetic starters or contactors for remote control of motors.eliminates the need for external seals, simplifying installation and reducing costs.Pilot lights are used to visually indicate that the desired function is being performed.EDSX, EDS and EFS control stations are factory sealed to prevent arcing of the enclosed device from causing ignition of a hazardous atmosphere external to the enclosure.Factory sealing Typical applications for EDSX, EDS and EFS control stations include industrial areas where the atmospheres may contain hazardous gases and/or dusts. A wide range of models are available to maximize application flexibility.

Catalog Number EFSC215
Manufacturer Eaton Crouse-Hinds
Brand Eaton
Sub Brand Crouse-Hinds series
Country of Origin Mexico
Made in USA No
Application Ind Facilities & Factories - Facility: Power Distribution and Control
Enclosure Class I Div 1 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G
Material Feraloy iron alloy
Special Features Single Gang, (2) Circuit Start-Stop, 3/4 In Hub, Material Feraloy Iron Alloy
Standard UL 1203, CSA C22.2
UPC 782274290607
GTIN 00782274290607
Item Type Pushbutton control station
Dimensions 6.7200 IN X 3.5000 IN X 5.2500 IN
Weight UOM Pounds
Size 5-7/8 In Length X 3-1/2 In Width X 2-1/2 In Height
Voltage Rating 600 Vac
