| Catalog Number | TH714 |
| Manufacturer | Satco |
| Brand | NUVO |
| Country of Origin | Viet Nam |
| Made in USA | No |
| Application | Track Lighting |
| Color | Clear |
| Frequency Rating | 60 HZ |
| Lamp Type | LED |
| Mounting | Track |

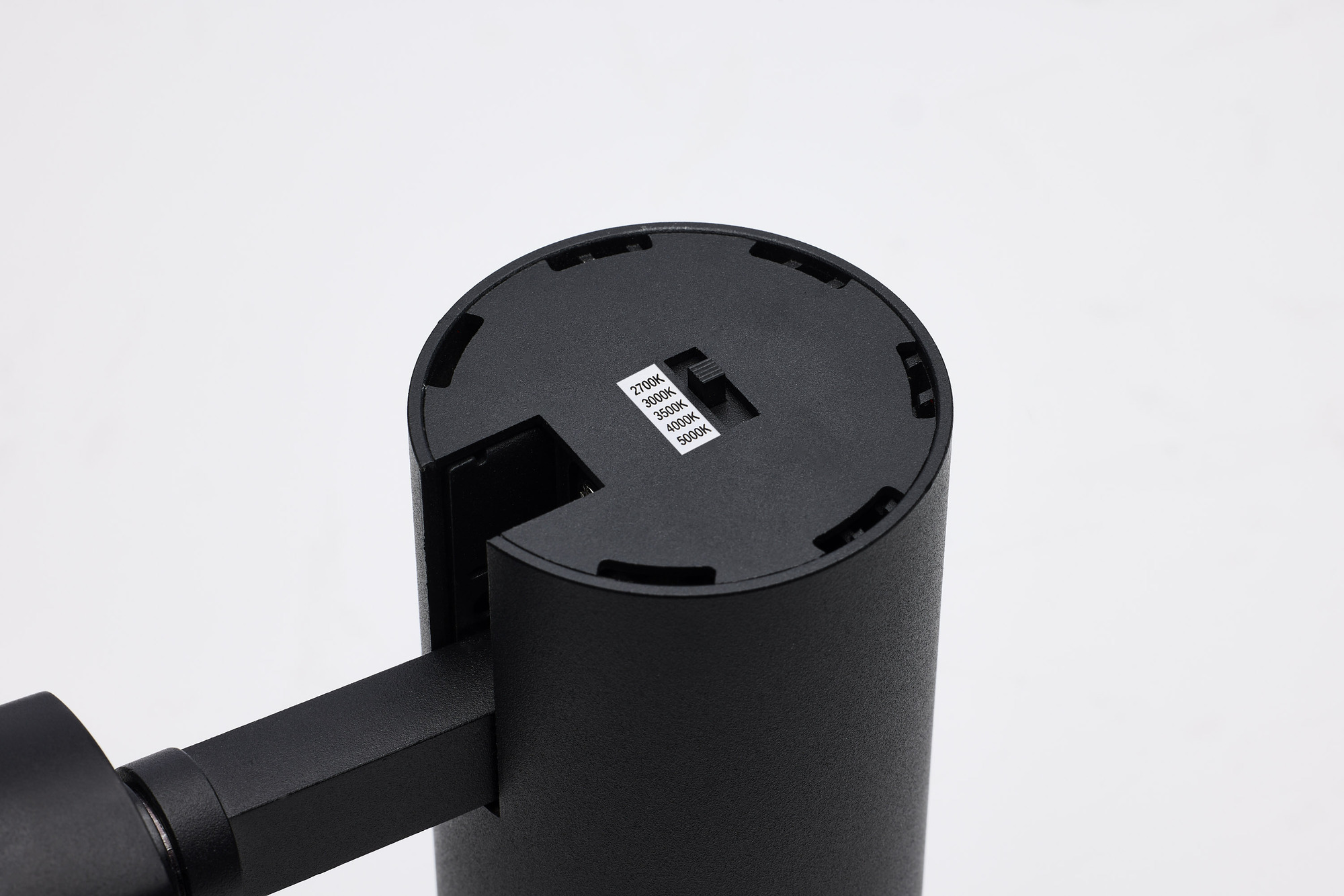

| Special Features | Warranty: 3-Years ; Location Rating: Dry ; Style: Contemporary ; JA8 Compliant: True ; Amps: 0.180A ; Incandescent Equivalent: 100W ; Operating Frequency: 60Hz ; Power Factor: >0.9 ; Wattage Selectable: False ; Bulb Included: Integrated ; Beam Angle (degree): 48 ; Cct Selectable: True ; Indoor Outdoor: Indoor ; Lens Finish: Clear ; Lens Material: Poly methyl methacrylate (PMMA) ; Mounting Procedure: Track ; Operating Temp: -20C (-4F) to +40C (+104F) ; Replaceable Light Source: False ; Color Temp: Warm White to Natural Light ; CRI: 90+ ; Track Head Style: H-Style |
| Standard | cETLus - Listed |
| UPC | 045923405488 |
| GTIN | 00045923405488 |
| Item Type | LED Track |

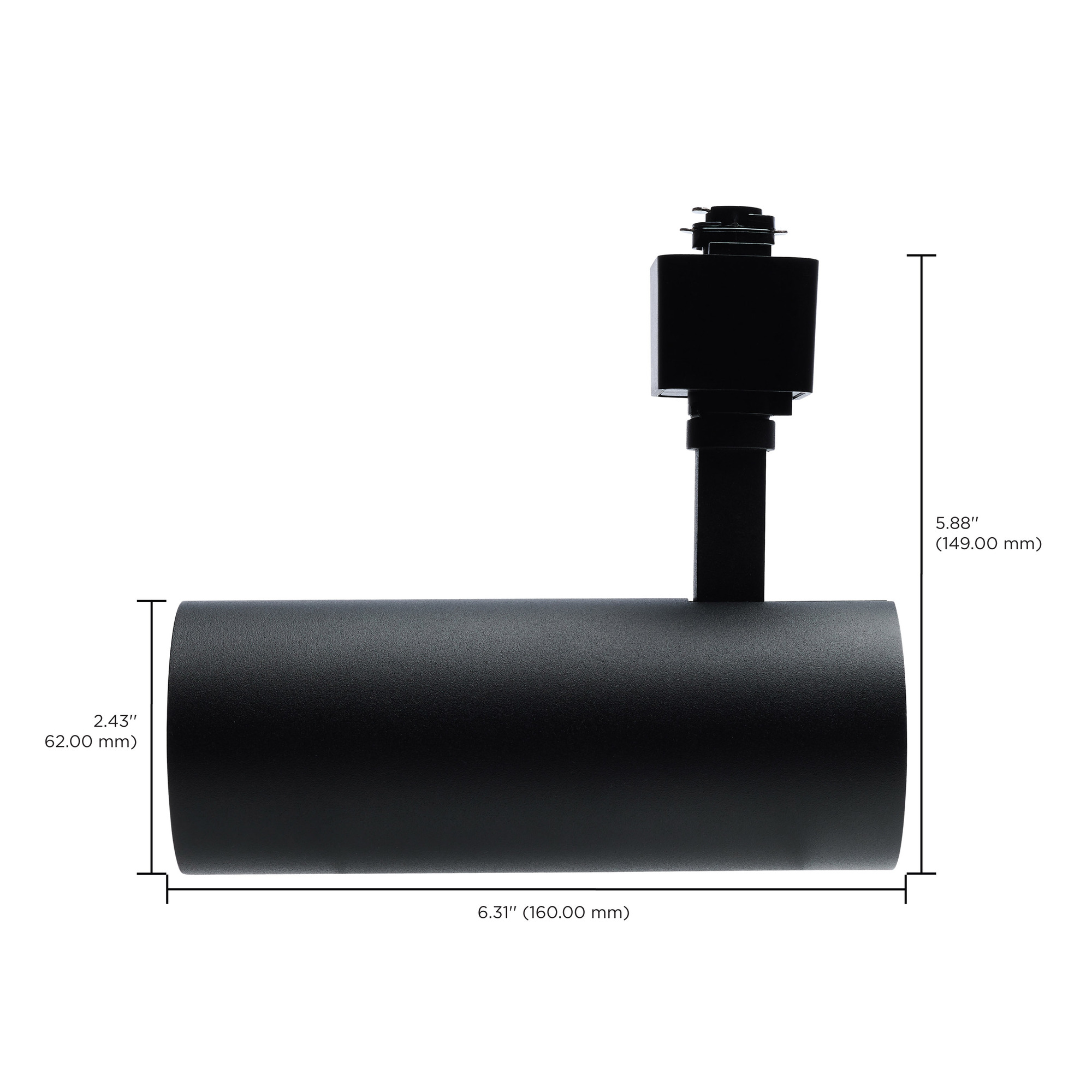

| Length | 6.31 |
| Length UOM | Inch |
| Width | 2.43 |
| Width UOM | Inch |
| Height | 5.88 |
| Height UOM | Inch |
| Voltage Rating | 120 |
| Wattage | 20 W |
