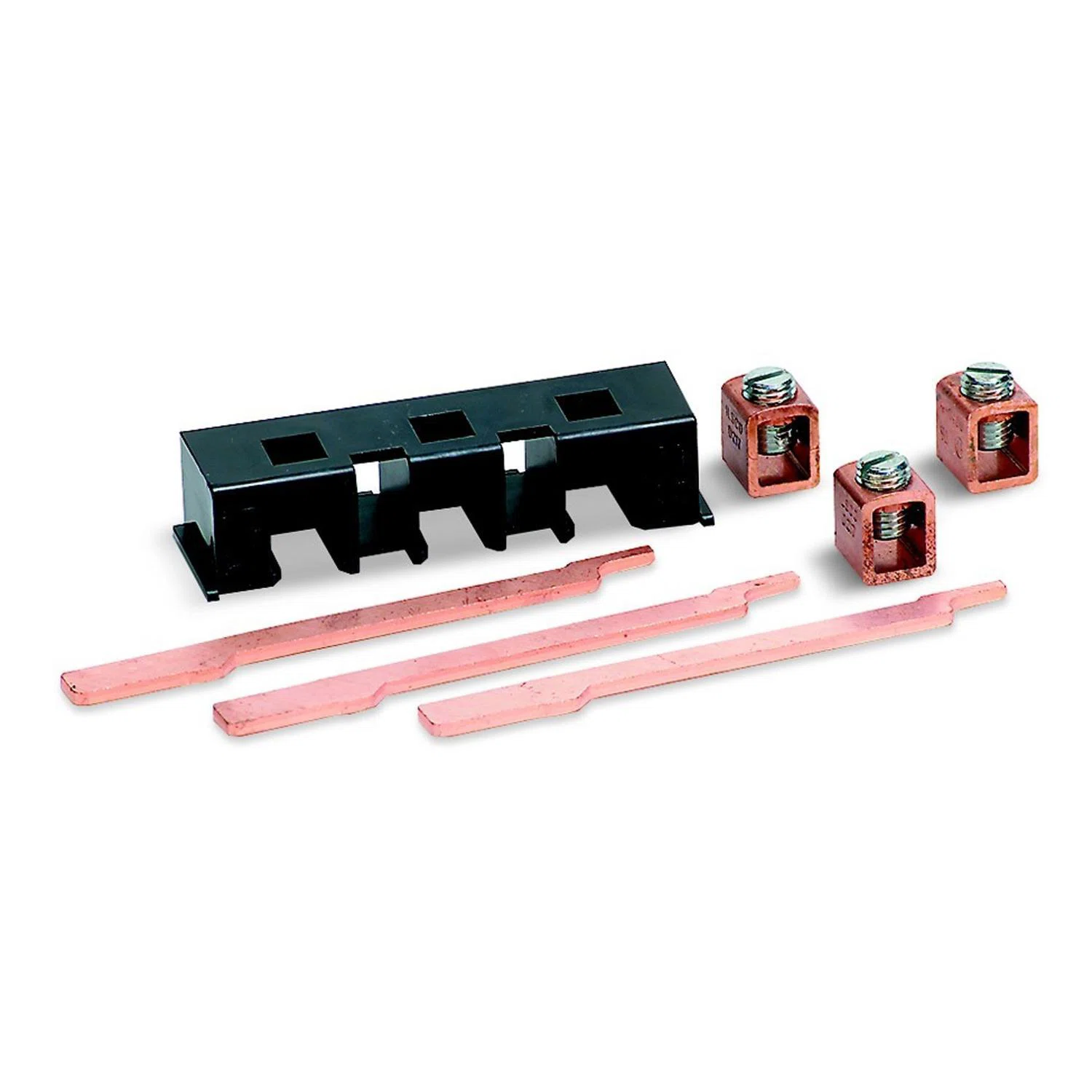

9999LB0 3-Pole Direct Mount Lug Extender Kit, For Use With Solid State Overload Relay
- MFR:
- Schneider Electric
- MFR #:
- 9999LB0
- UPC:
- 785901070696
- Item #:
- 78708
9999LB0 3-Pole Direct Mount Lug Extender Kit, For Use With Solid State Overload Relay
- MFR #:
- 9999LB0
- UPC:
- 785901070696
- Item #:
- 78708
Motor Logic solid state overload relays are designed to protect 50/60 Hz, 3 phase AC motors from overload, phase unbalance, and phase loss conditions. The 9999LB0 lug extender kit is designed for retrofit NEMA Type S motor starter applications. This kit allows the lugs to be in the same location as for the 9065 melting alloy overload relay, eliminating the need for additional wire length. Lugs are used on 9065SS or SF solid state overload relays. These SSOLR are used on NEMA Size 00, 0 or 1 NEMA Type S motor starters. Kit is UL Listed and CSA certified.
Manuals & Documentation
Features
- Comes standard installed both non-reversing and reversing and combination and multispeed starters
- Simple Installation
- Field interchangeable thermal units for replacement motor installations
- Available as direct mount or separate mount
- Provides thermal protection for the most costly equipment
| Manufacturer Part Number | 9999LB0 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901070696 |
| EAN | 0785901070696 |
| Country Of Origin | MX |
| Series | 9999 |
| Specifications | NEMA 00B, 00C, 0, 1 Size, 600 V AC Maximum Motor Voltage |
| Suitable For Use With | Solid State Overload Relay |
| Type | 3-Pole Direct Mount |
| Alternative Part Number | 8006133 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | NEMA Approved | ECCN: EAR99 |
| Application | For retrofitting existing NEMA S starters applications |
