SQUARE D

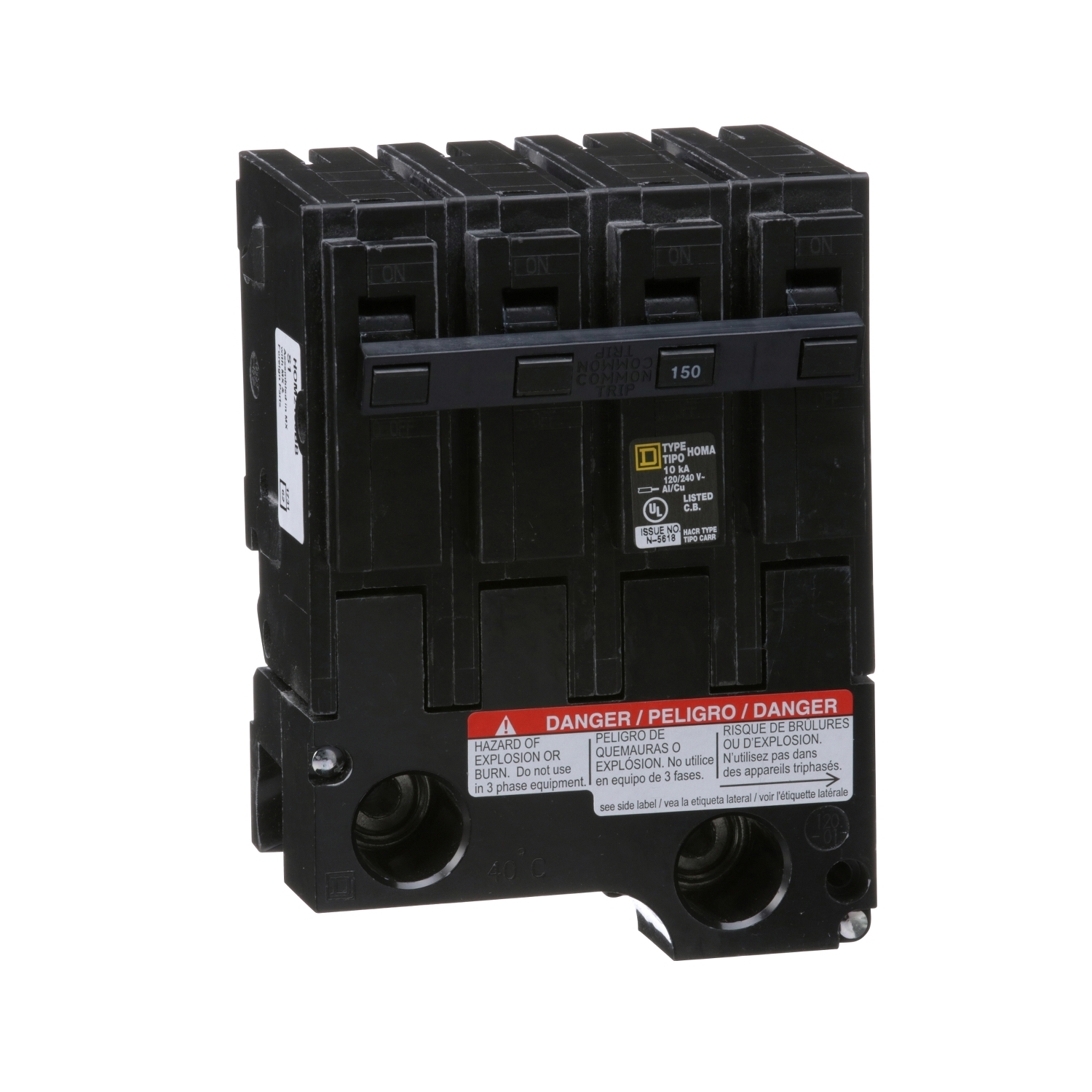

HOM2150BB Homeline Miniature Circuit Breaker, 150 Amp, 4 Pole, 120/240V

MFR:
Schneider Electric
MFR #:
HOM2150BB
UPC:
785901296201
Item #:
78696

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 150 A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.39 inches, a width of 3.98 inch and depth of 3.13 inches. HOM Homeline miniature circuit breakers are UL Listed.

Manuals & Documentation
Catalog Number HOM2150BB
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:Lifetime
Country of Origin United States
Made in USA Yes
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398065&lang=en-us
UPC 785901296201
GTIN 00785901296201
Width 3.980000000000000
Width UOM Inch
Height 5.390000000000000
Height UOM Inch
Depth 3.13 IN
