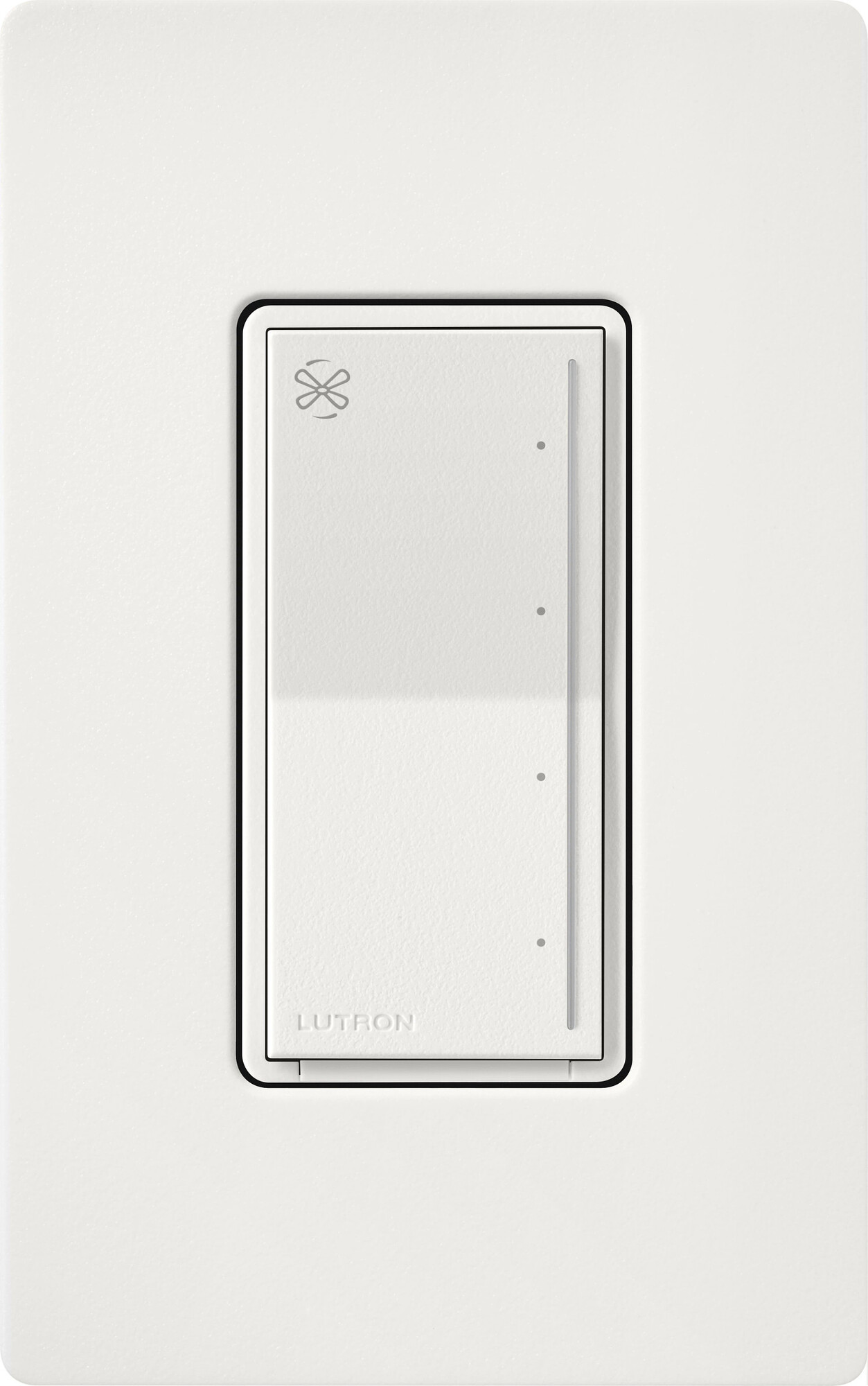

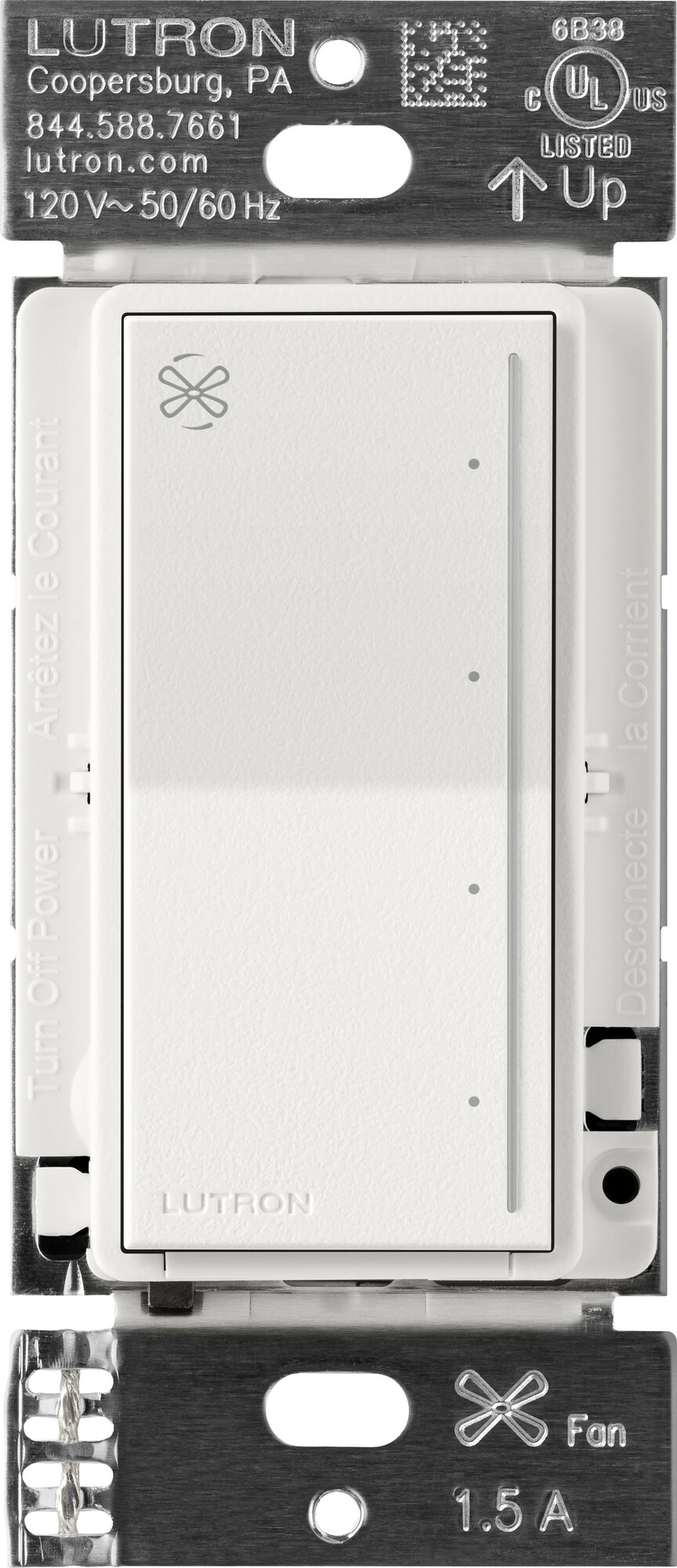

Lutron Sunnata Touch Fan Control, 4-Speed, 1.5A Paddle Fan, AC Motor, Single Pole, Neutral Required, 120V, ST-FSQN-RW, Architectural White
- MFR:
- Lutron Electronics
- MFR #:
- ST-FSQ-N-RW
- UPC:
- 784276312905
- Item #:
- 786539
Lutron Sunnata Touch Fan Control, 4-Speed, 1.5A Paddle Fan, AC Motor, Single Pole, Neutral Required, 120V, ST-FSQN-RW, Architectural White
- MFR #:
- ST-FSQ-N-RW
- UPC:
- 784276312905
- Item #:
- 786539

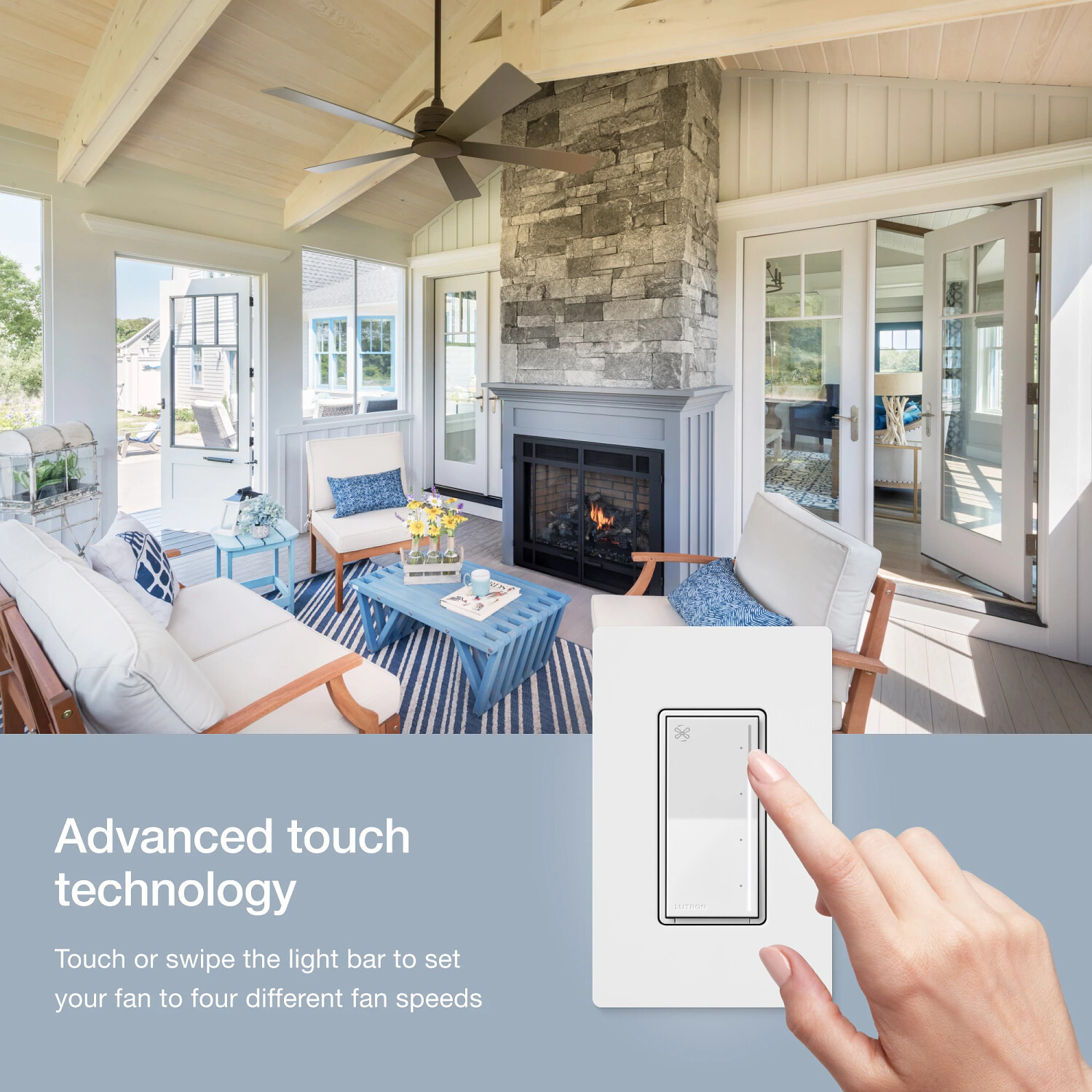

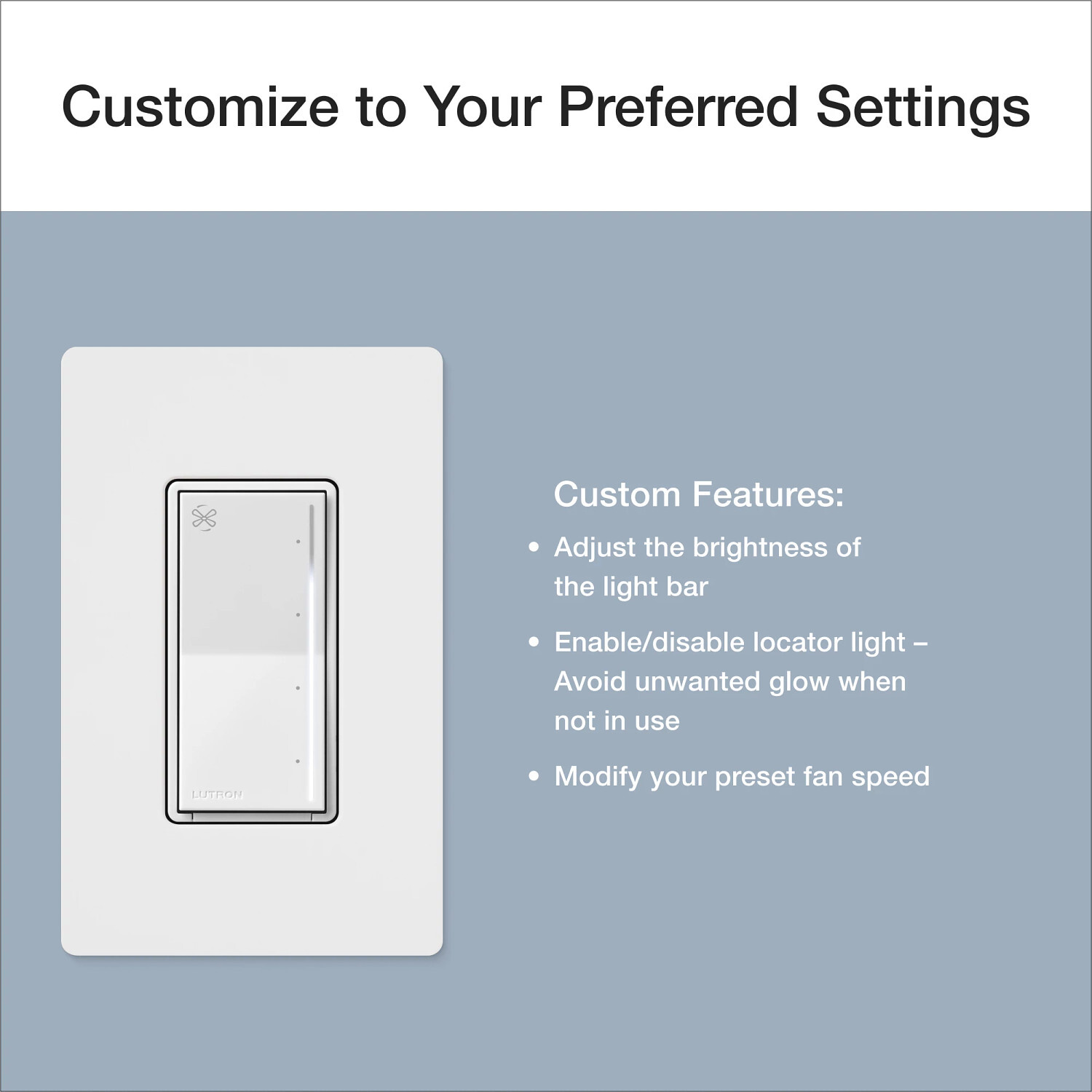

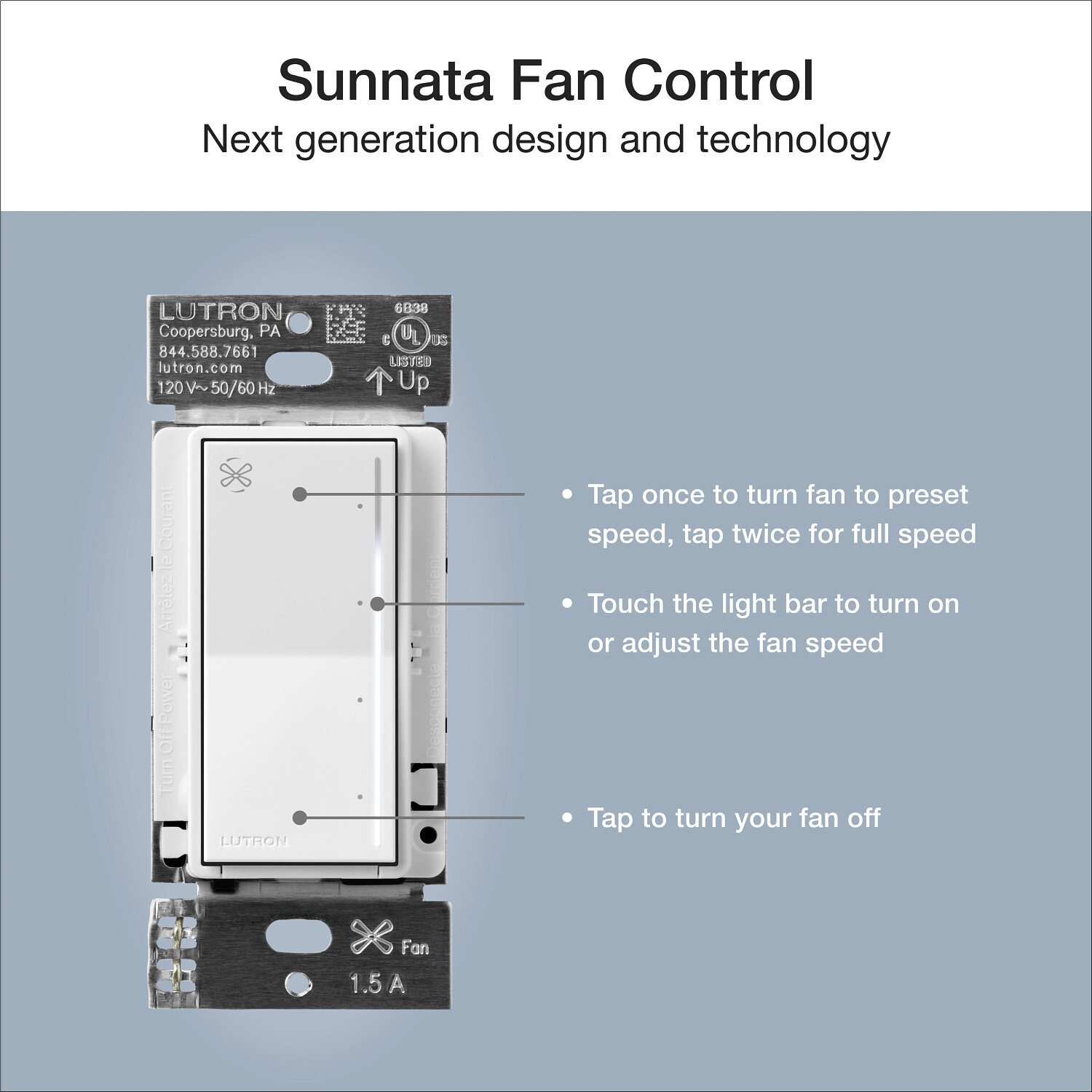

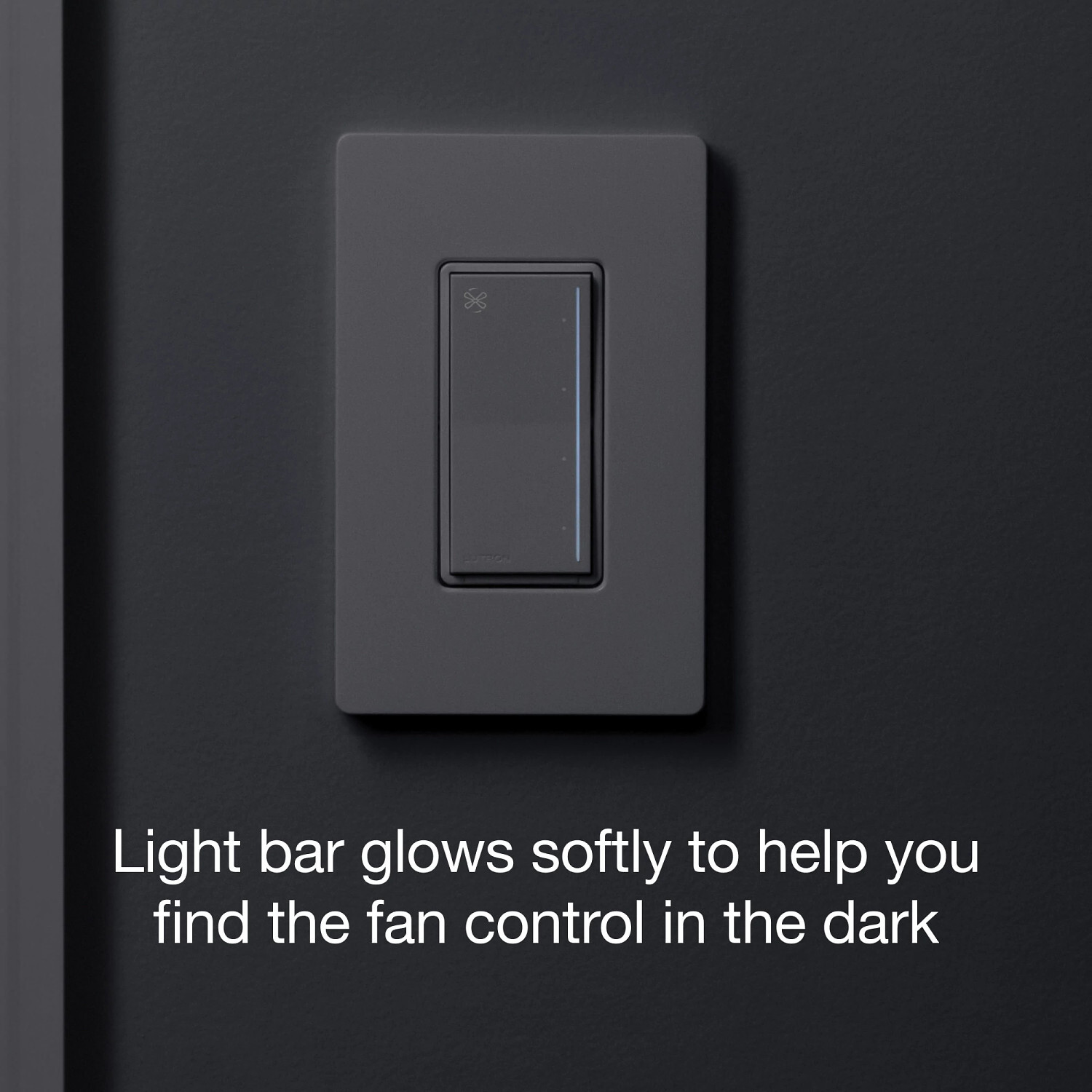

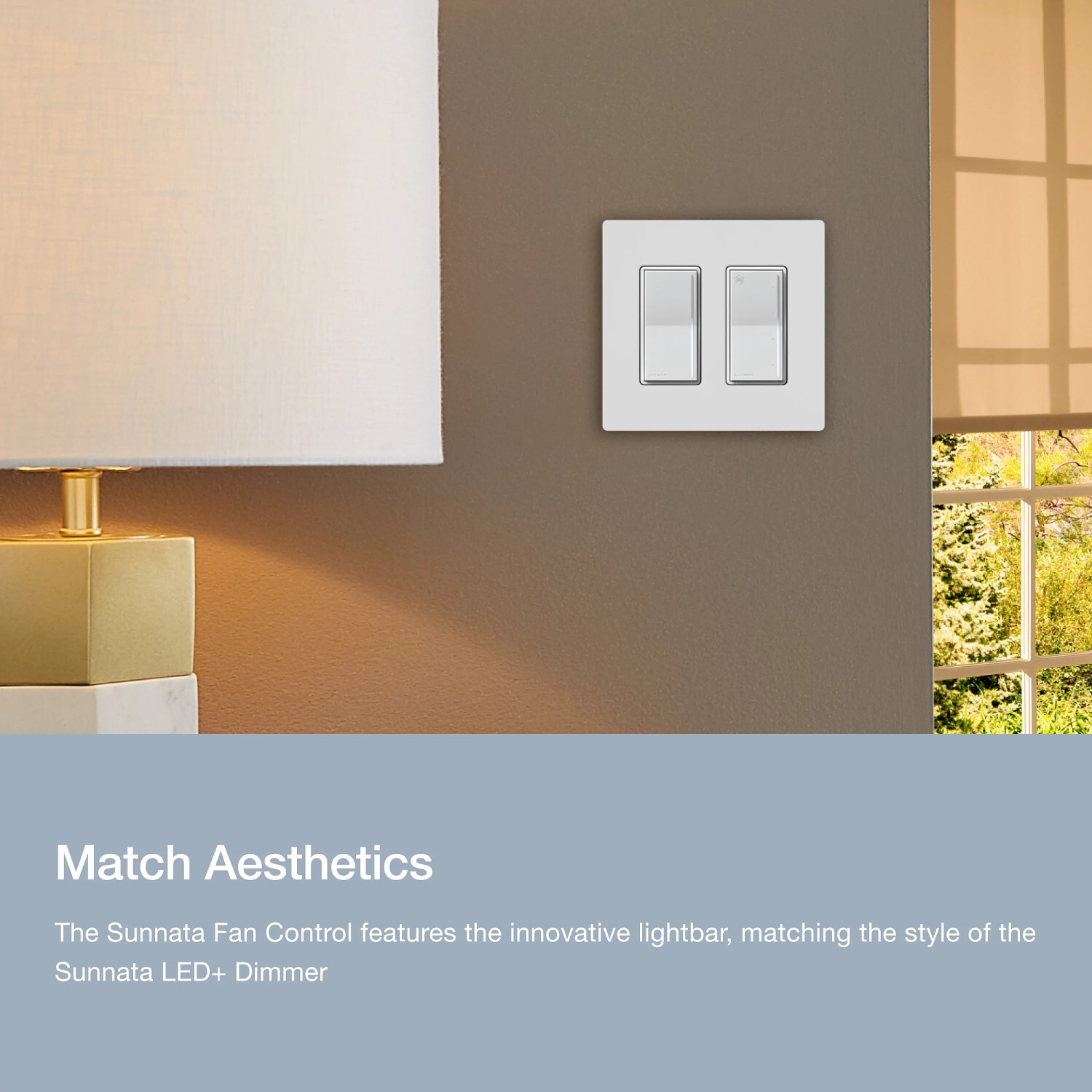

The Sunnata touch fan speed control provides 4 quiet speeds for one AC ceiling fan up to 1.5A. This innovative decorator-style fan control is single pole and requires a neutral connection. It features a large intuitive paddle to turn ceiling fans On/Off and has a sleek light bar you can touch to set the fans speed. The soft glow light bar also doubles as a locator light in dark rooms myLevel programming is available to customize the brightness or disable the lightbar. Ceiling fans with integrated fan speed light modules, proprietary remotes, or DC motors are not compatible with this control. Create a cohesive look across your home by adding the Sunnata touch fan control to complement Lutron Sunnata LED+ dimmers and switches. Install as a 2-gang with a Sunnata LED+ touch dimmer to control a fan light kit. Available in 20+ colors. Coordinates perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Manuals & Documentation
| Catalog Number | ST-FSQ-N-RW |
| Manufacturer | Lutron Electronics |
| Brand | Lutron |
| Sub Brand | Sunnata |
| Color | Architectural White |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Use to control one paddle-type ceiling fan. Not for use with DC motor fans, fans with remote controls or Wi-Fi only fans. Not for use with bathroom or kitchen exhaust-type fans or to control lighting loads on a fan. |
| Standard | UL R Listed to U.S. and Canadian safety requirements (UL 1472 /CSA C22.2 184.1), NOM, NEMA SSL-7A-2015 forward-phase compliant |
| UPC | 784276312905 |
| GTIN | 00784276312905 |
| Item Type | Fan Control |

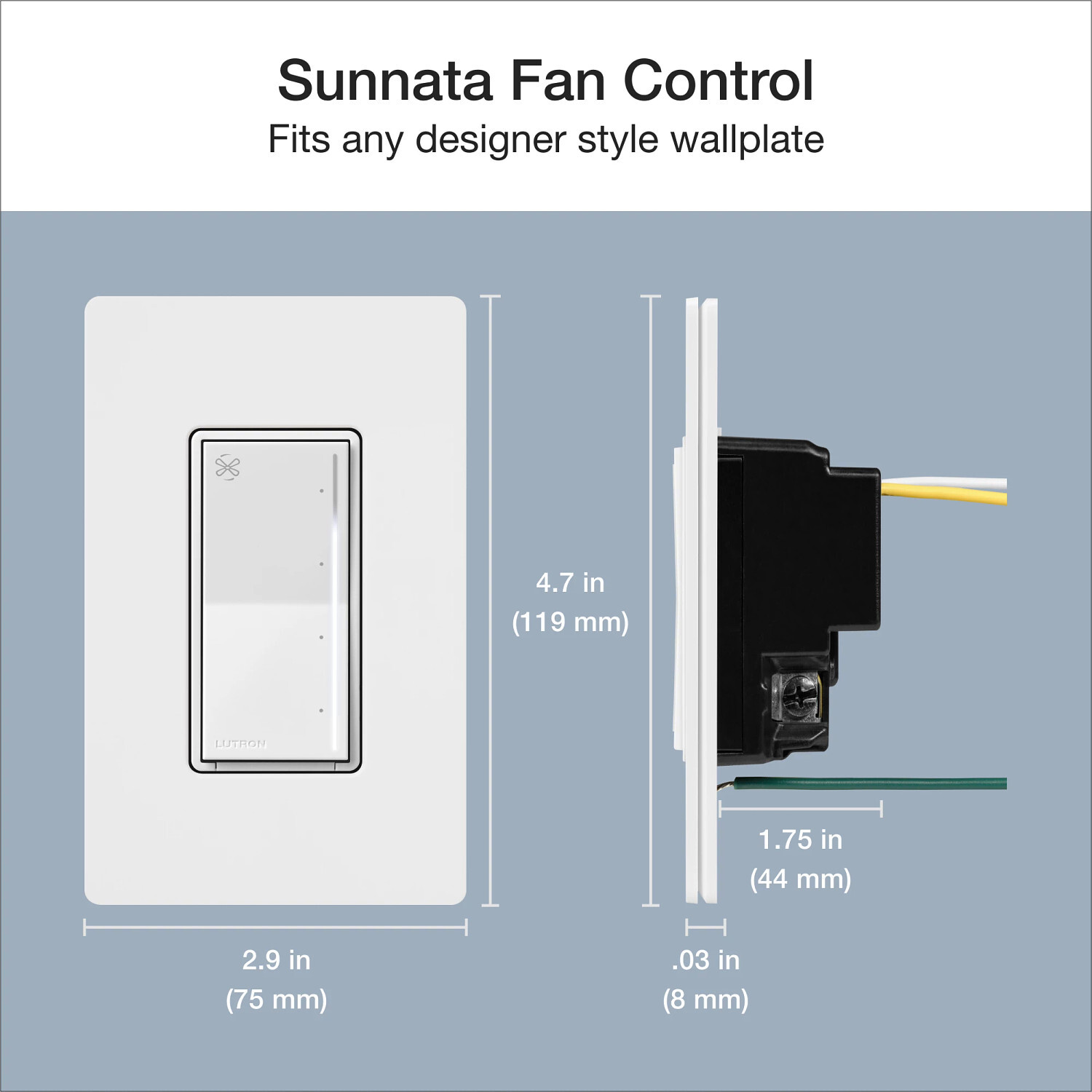

| Length | 2.9375 |
| Length UOM | Inch |
| Width | 0.3125 |
| Width UOM | Inch |
| Height | 4.6875 |
| Height UOM | Inch |
| Operating Temperature | 32; 104 F |
| Voltage Rating | 120 |
