Square D by Schneider Electric

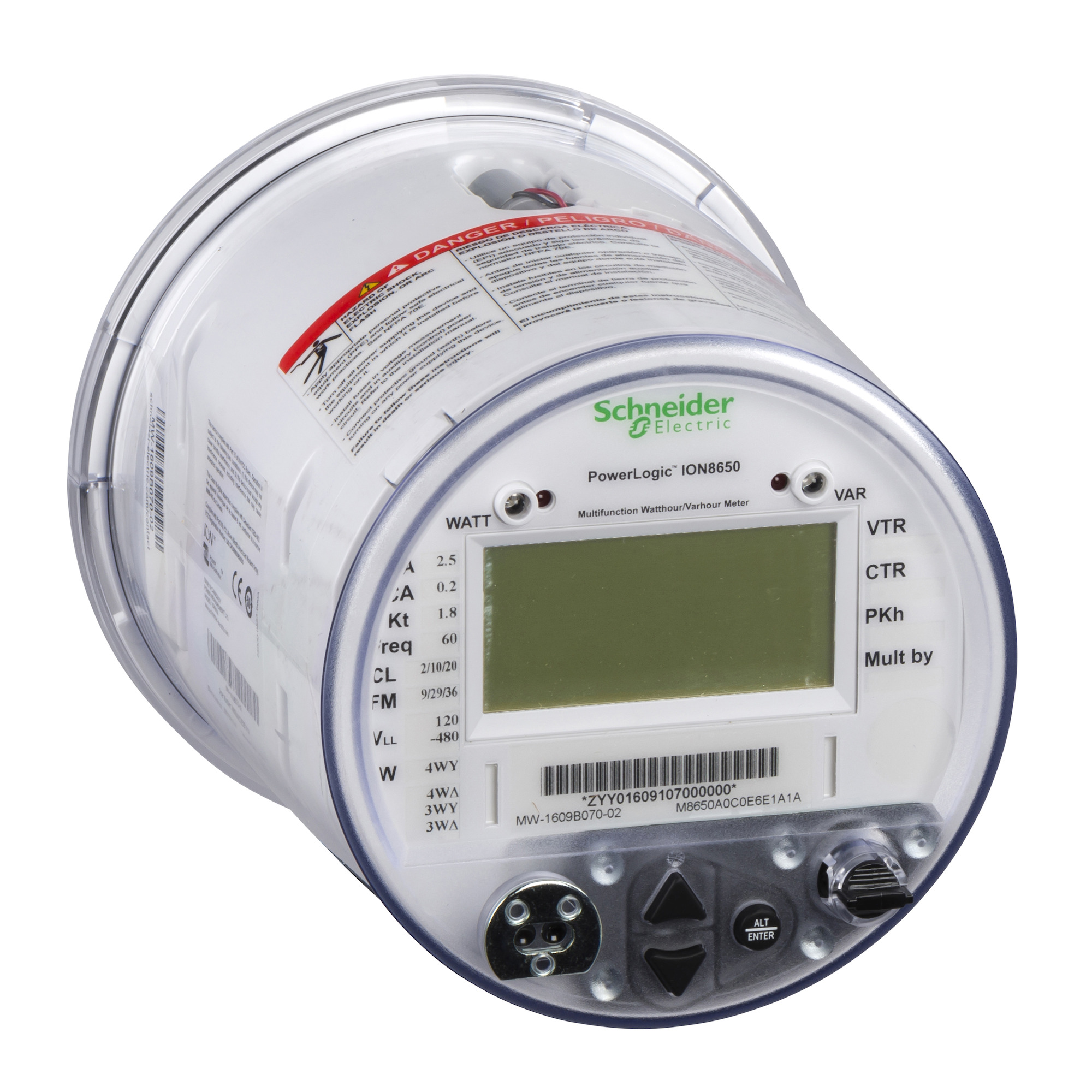

S8650C0C0E6E1A0A Powerlogic ION8650 Energy and Power Quality Meter, 120 to 277 V AC, 1/2/5 A, 47 to 63 Hz

MFR:
Schneider Electric
MFR #:
S8650C0C0E6E1A0A
UPC:
785901968665
Item #:
784683

ION8650 meter 32MB, 9S/29S/36S, 277VAC 60Hz, Ethernet No I/O

Manuals & Documentation
Catalog Number S8650C0C0E6E1A0A
Manufacturer Schneider Electric
Brand Square D by Schneider Electric
Country of Origin Unknown
Made in USA No
Application Load curtailment;Demand and power factor control;Equipment monitoring and control;Instrument transformer correction;Co-generation and IPP monitoring;Tariff metering;Energy pulsing and totalisation
Frequency Rating 60
Indicator FSTN transflective LCD
Interface TCP/IP 10/100 MBIT/S-DNP3 300...115200 BAUDS-ION 300...115200 BAUDS-DLMS 300...115200 BAUDS-MODBUS 57600 BAUDS-ANSI C12.18 <= 19200 BAUDS-DNP3 10/100 MBIT/S-ION 10/100 MBIT/S-IEC 61850 ED. 2 10/100 MBIT/S-ETHERGATE-MODBUS RTU, SLAVE 300...115200 BAUDS-MODBUS TCP, SLAVE 10/100 MBIT/S
Mounting Socket
Output 2 PULSE
Special Features 1024 samples/cycle;Protected by access code;Port addressing user designed;Robust security logs;Web server;Alarm notification by e-mail
Standard ANSI C12.1-IEC 62052-11,ELECTROSTATIC DISCHARGE IMMUNITY TEST IEC 61000-4-2-SUSCEPTIBILITY TO ELECTROMAGNETIC FIELDS IEC 61000-4-3-ELECTRICAL FAST TRANSIENT/BURST IMMUNITY TEST IEC 61000-4-4-1.2/50 A�S SHOCK WAVES IMMUNITY TEST IEC 61000-4-5-CONDUCTED AND RADIATED EMISSIONSB CISPR 22-CONDUCTED RF DISTURBANCES IEC 61000-4-6-IMMUNITY TO IMPULSE WAVES IEC 61000-4-12,FRONT FACE IP65-BACK IP51
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=177258653&lang=en-us
UPC 785901968665
GTIN 00785901968665
Item Type Energy and power quality meter
Size 178 MM,178 MM,237 MM
Voltage Rating 120...277 V AC 47...63 HZ
