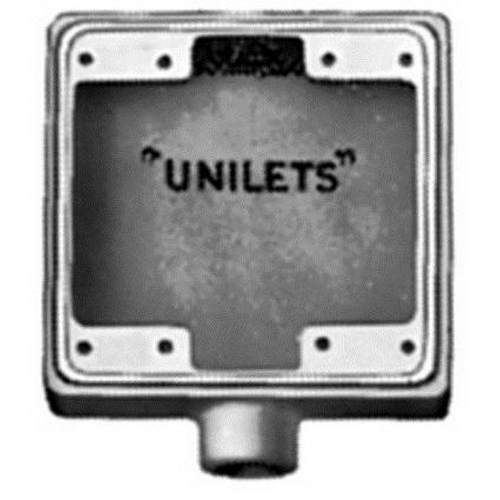

2-Gang FS Cast Device Box, 1/2 inch, Malleable Iron, Zinc Electroplated
- MFR:
- Appleton Electric
- MFR #:
- FS2100
- UPC:
- 781381342001
- Item #:
- 7838
2-Gang FS Cast Device Box, 1/2 inch, Malleable Iron, Zinc Electroplated
- MFR #:
- FS2100
- UPC:
- 781381342001
- Item #:
- 7838
UNILETS FS Shallow Depth 2-Gang Cast Device Box, Number Of Outlet: 1, Material: Malleable Iron, Size: 1 IN, Cable Entry: (1) 1 IN Hub, Cubic Capacity: 32 CU-IN, Knockouts: No, Height: 4.63 IN, Width: 4.63 IN, Depth: 2 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1, For Use With Threaded Metal Conduit And IMC
Manuals & Documentation
Features
- Corrosion-resistant
- Weatherproof, raintight and dust-tight
- With high tensile strength and ductility provides greater resistance to impact and shock
| Catalog Number | FS2100 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit And IMC |
| Cable Entry | (1) 1 IN Hub |
| Cubic Capacity | 32 CU IN |
| Knockouts | No |
| Material | Malleable Iron |
| Special Features | Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; |
| Standard | UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381342001 |
| GTIN | 00781381342001 |
| Item Type | FS Shallow Depth 2-Gang Cast Device Box |
| Length | 5.3000 |
| Length UOM | Inch |
| Width | 5.0000 |
| Width UOM | Inch |
| Height | 3.0000 |
| Height UOM | Inch |
| Weight | 2.550 |
| Weight UOM | Pounds |
| Size | 1 |
