GV2P16 TeSys Non-Reversing Manual Motor Starter With Thermal Magnetic Circuit Protector, 3 Poles, IP20 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- GV2P16
- Item #:
- 78162
GV2P16 TeSys Non-Reversing Manual Motor Starter With Thermal Magnetic Circuit Protector, 3 Poles, IP20 Enclosure
- MFR #:
- GV2P16
- Item #:
- 78162

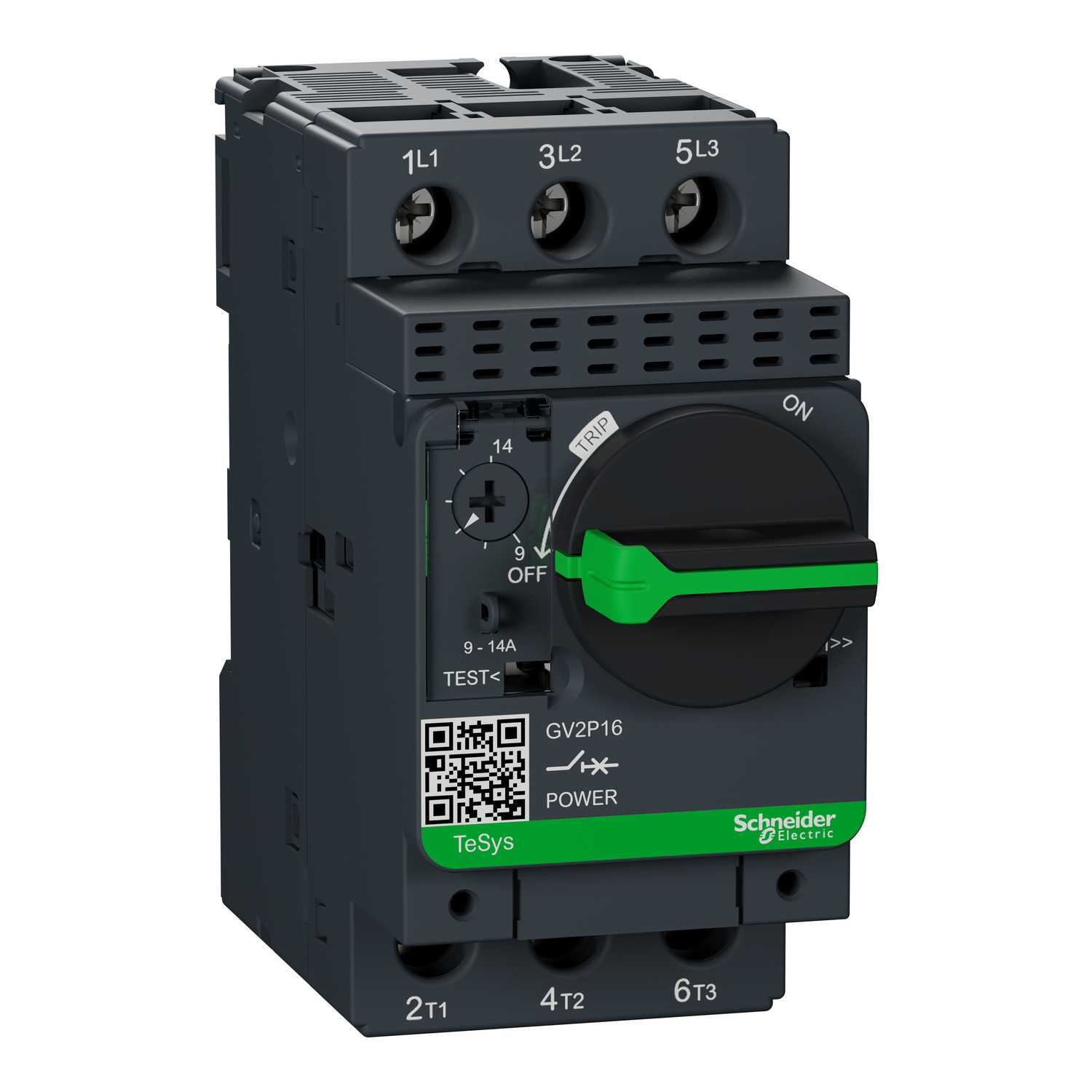

The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2P controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 9 ampere to 14 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Manuals & Documentation
| Catalog Number | GV2P16 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Thailand |
| Made in USA | No |
| Color | Dark Gray |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=607770&lang=en-us |
| GTIN | 03389110213508 |
