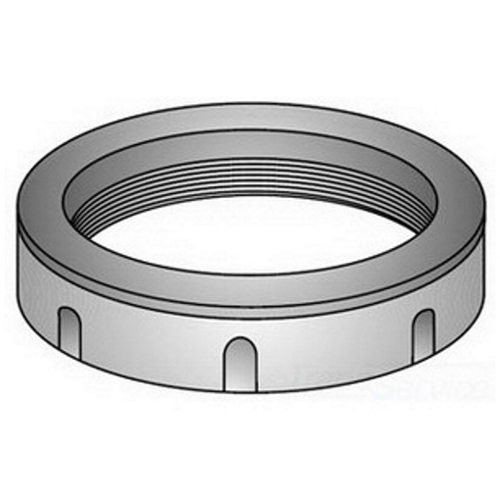

B-200 Type B Conduit Bushing, 2 in Trade, Malleable Iron, Zinc Plated
- MFR:
- O-Z/Gedney
- MFR #:
- B-200
- UPC:
- 783126029154
- Item #:
- 78030
B-200 Type B Conduit Bushing, 2 in Trade, Malleable Iron, Zinc Plated
- MFR #:
- B-200
- UPC:
- 783126029154
- Item #:
- 78030
Manuals & Documentation
| Catalog Number | B-200 |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Threaded Rigid Conduit And IMC |
| Connection | Threaded |
| Finish | Zinc Plated |
| Material | Malleable Iron |
| Special Features | O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration; They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress; Molded-on high impact phenolic thermosetting insulation; Positive metallic conduit stop; Type B insulated bushings of malleable iron or steel, with conduit end stop and integrally molded noncombustible phenolic insulated surfaces rated 150 DEG C shall be used on the ends of all raceways containing number 4 or larger conductors |
| Standard | Third Party Certification: UL File Number E-11853, CSA 011584, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1 |
| UPC | 783126029154 |
| GTIN | 00783126029154 |
| Item Type | Type B Insulated Bushing |
| Size | 2 |
| Temperature Rating | 150 DEG C |
