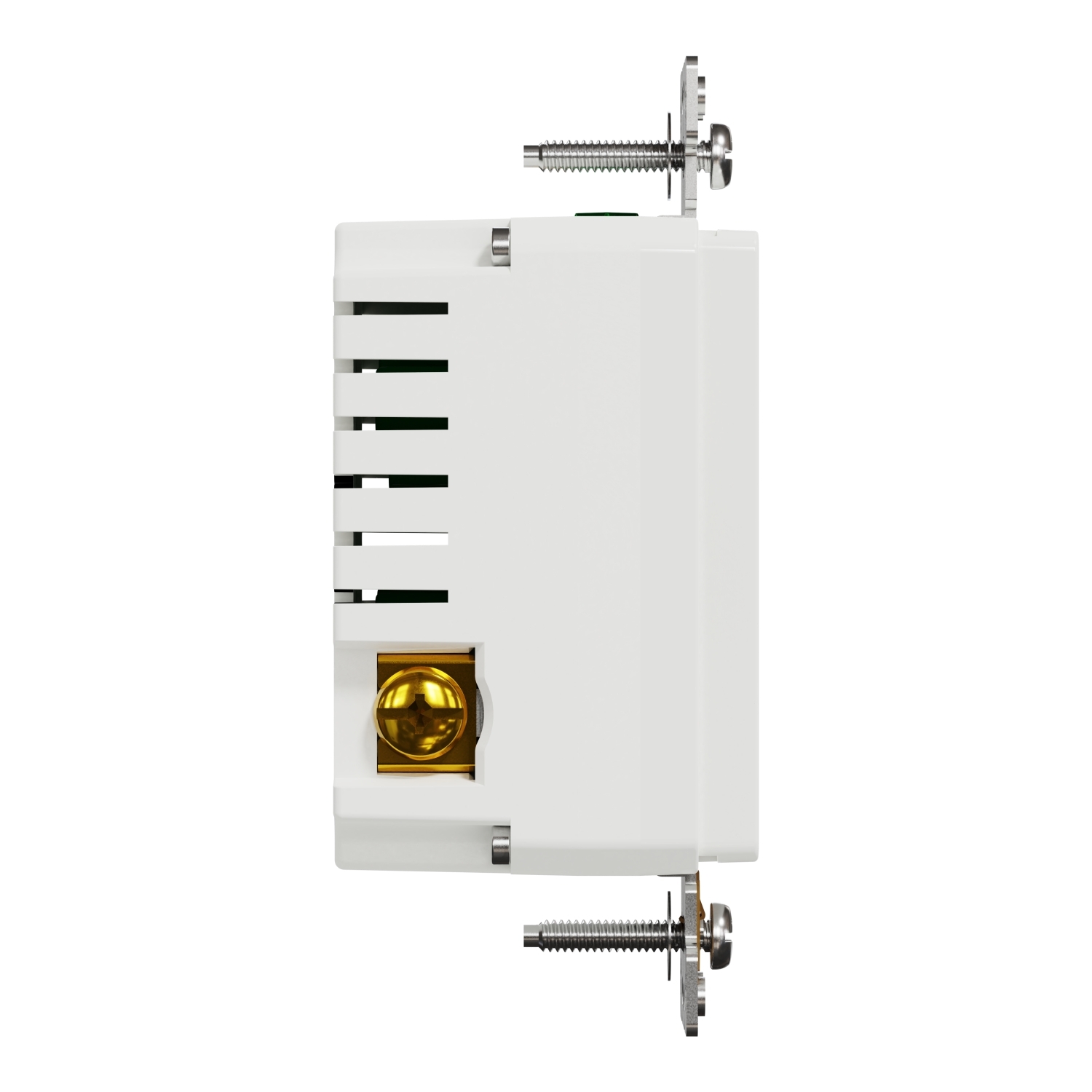

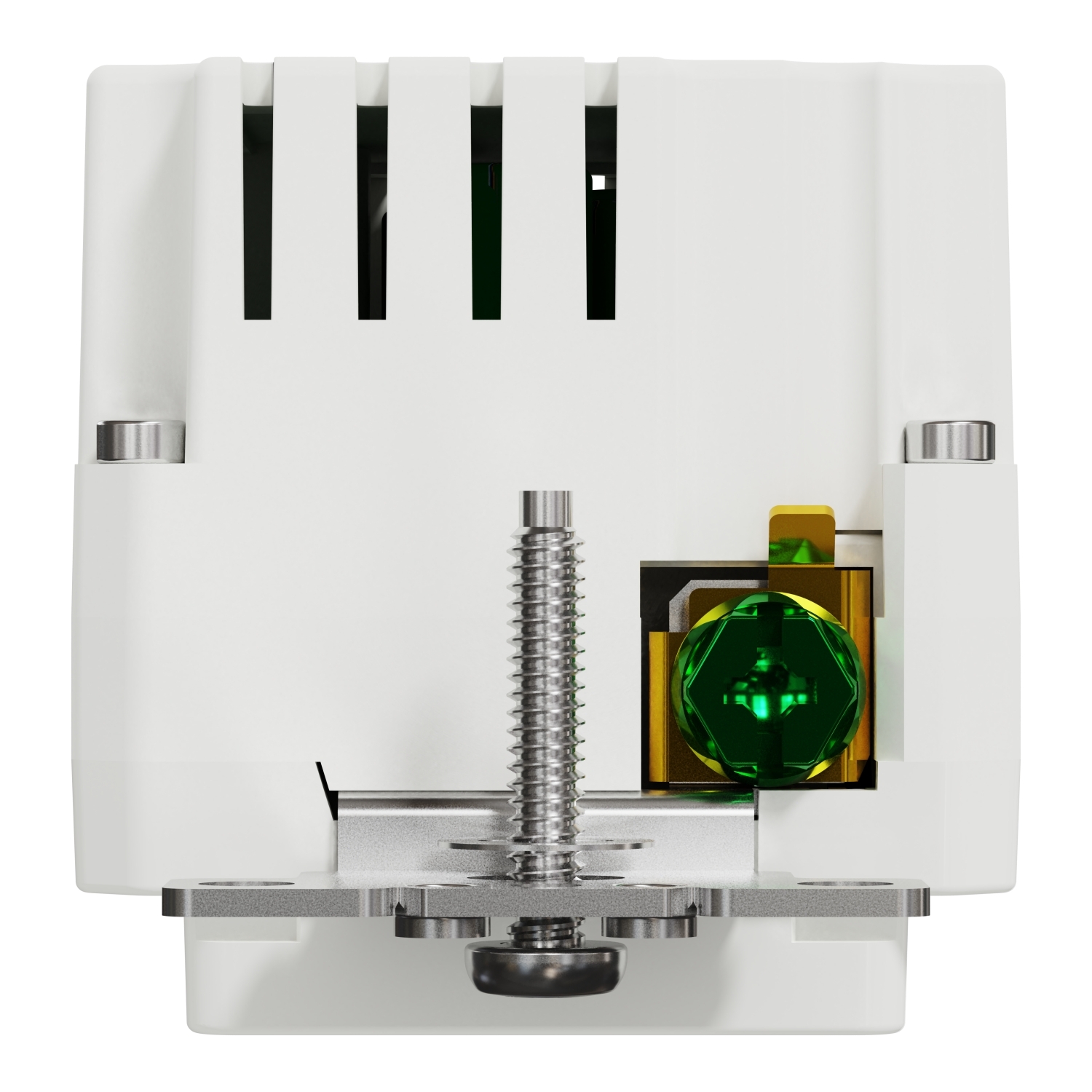

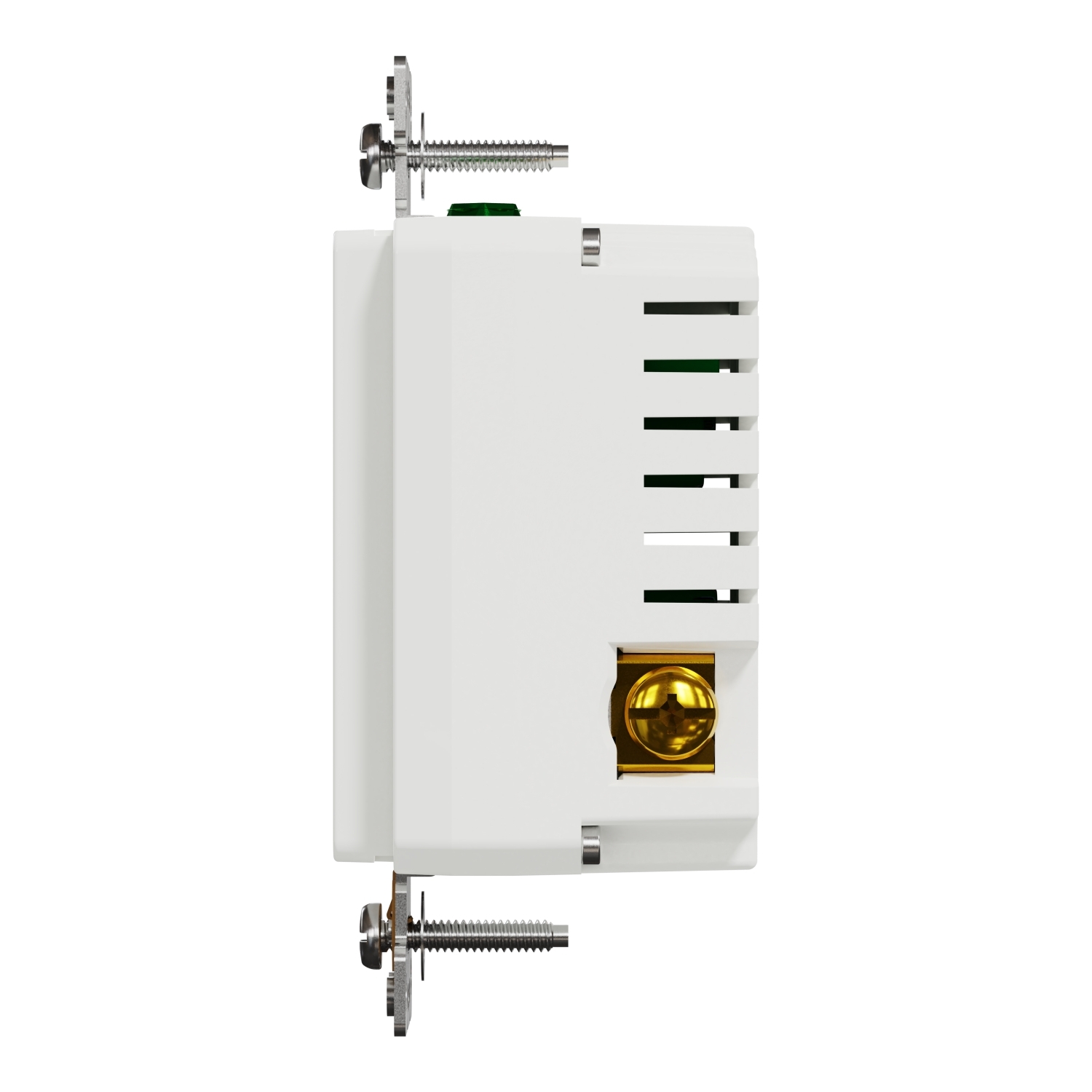

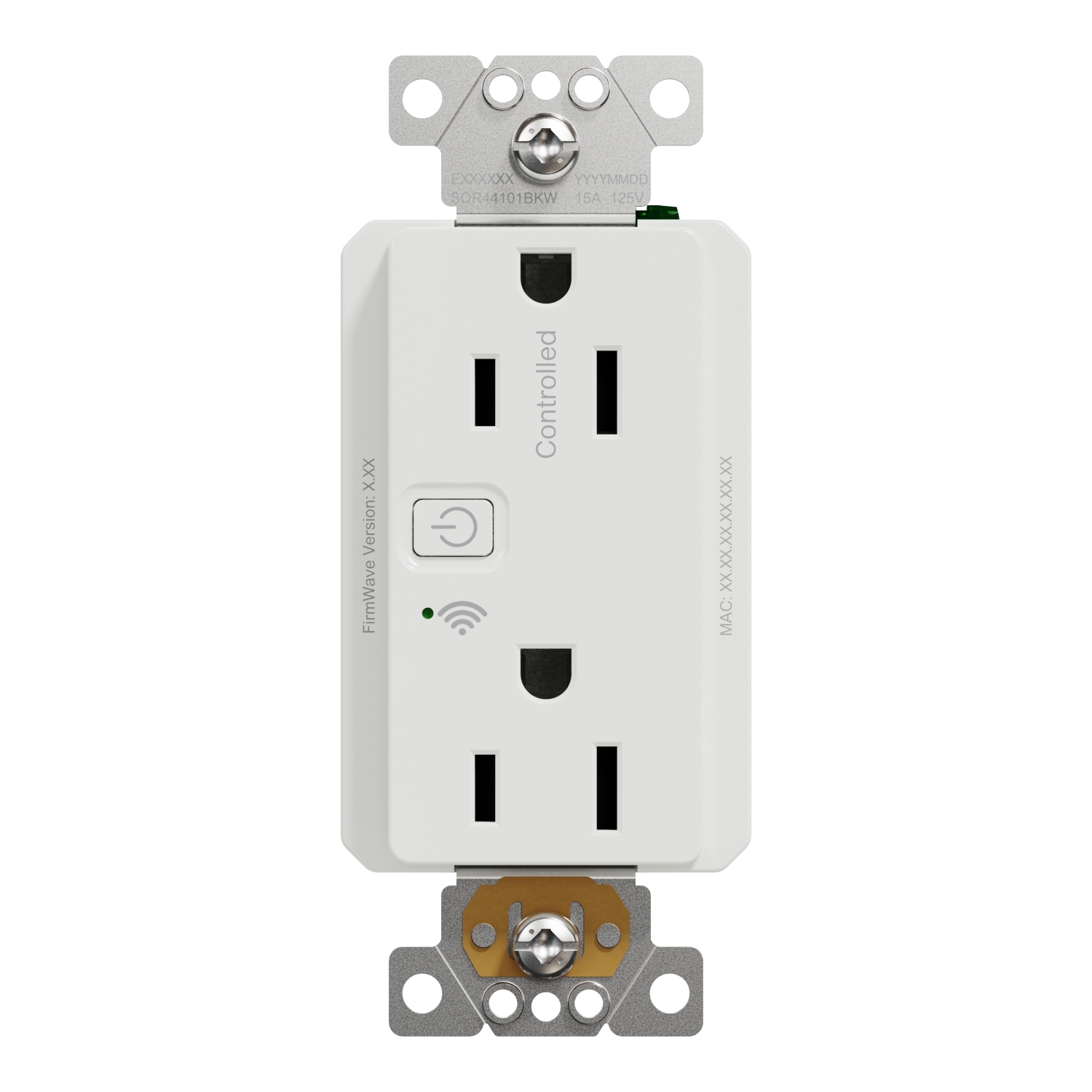

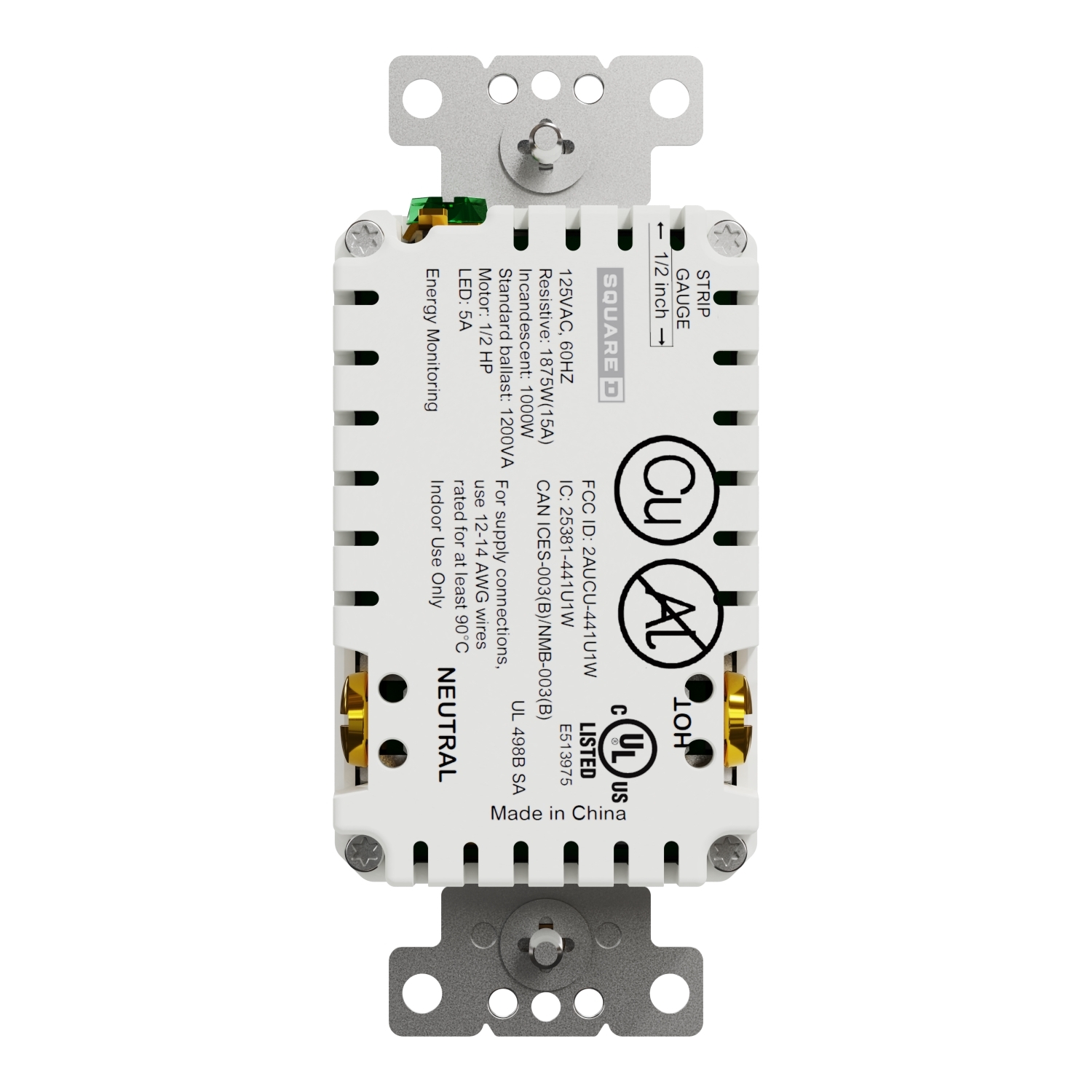

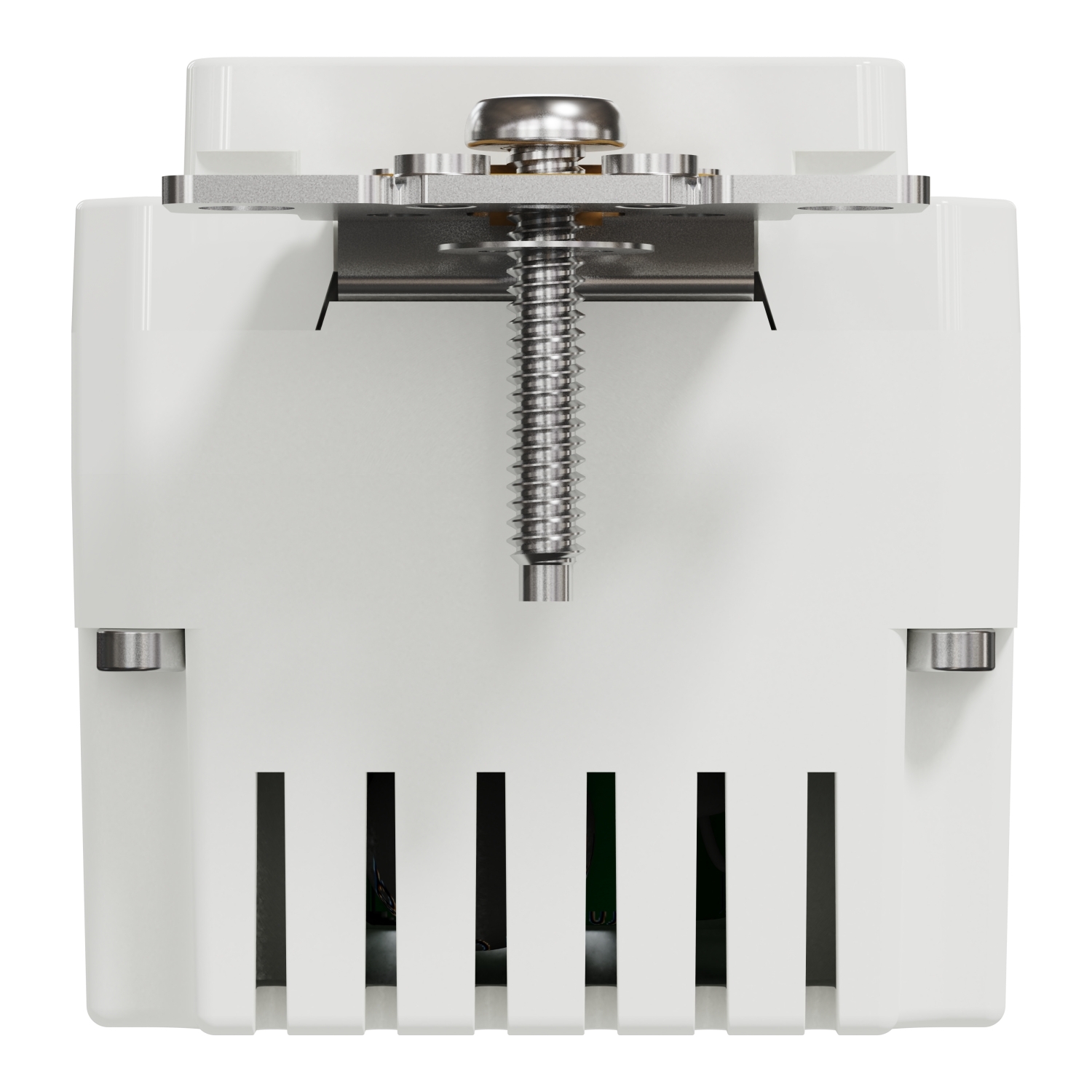

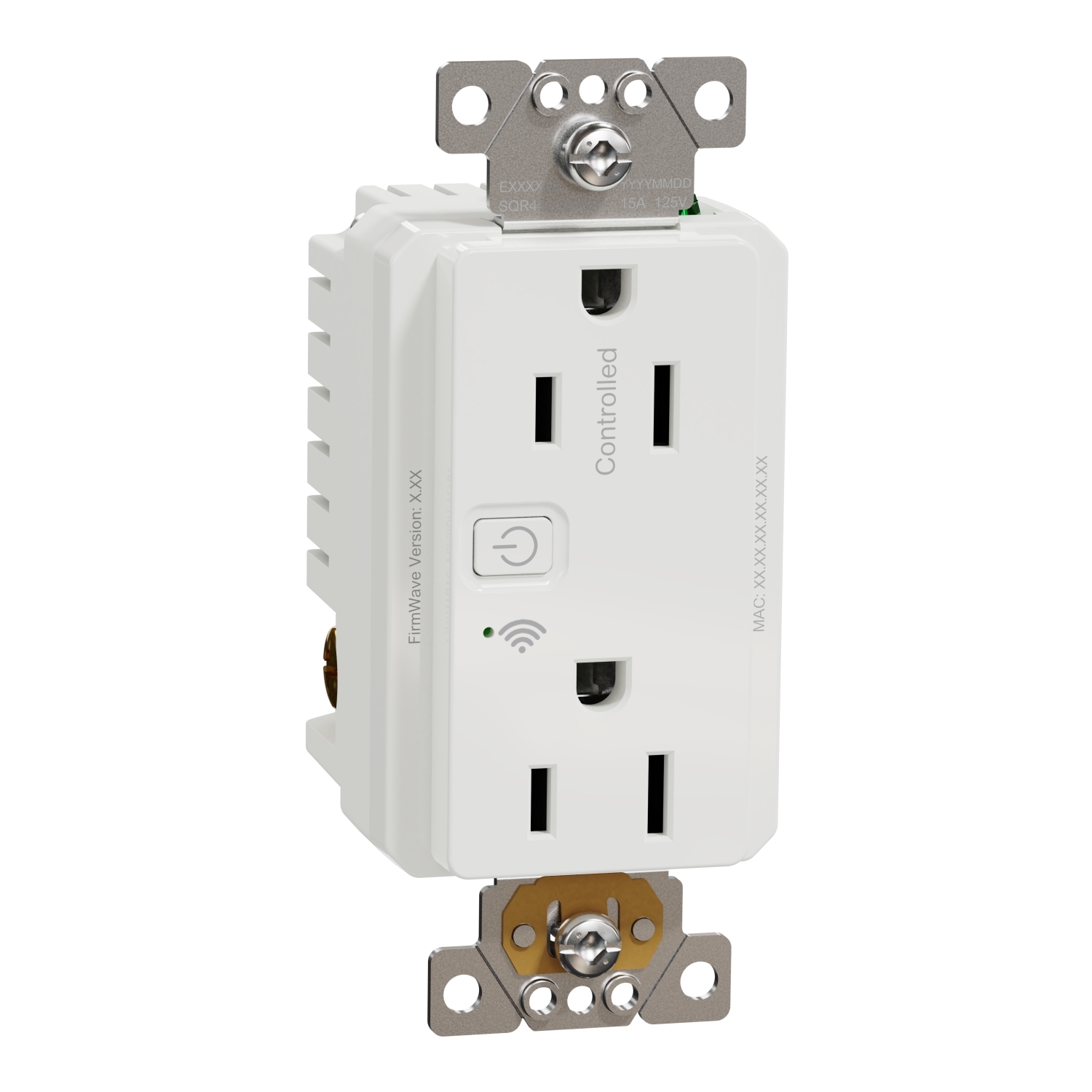

X Series residential wiring devices socket receptacle featuring an array of new features, such as flush mounting, easy installation, and connectivity with wifi. This outlet socket has a 15A current rating. The rated operational voltage of this device is 125 VAC. Each outlet socket unit has two outlet sockets and is used to supply power. Each outlet socket has two poles and a ground. The connection terminals of this outlet socket are push-in termination and screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This receptacle is tamper resistant with discrete black shutters. This socket outlet has a white frame. The self-grounding feature is a brass ground contact which provides ground retention to metal boxes that eliminates the need to use a ground screw. This socket has a width of 1.42 in (36 mm), a height of 4.06 in (103 mm) and a depth of 1.06 (27 mm). By satisfying the NEMA 5-15R, UL 498 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices.
