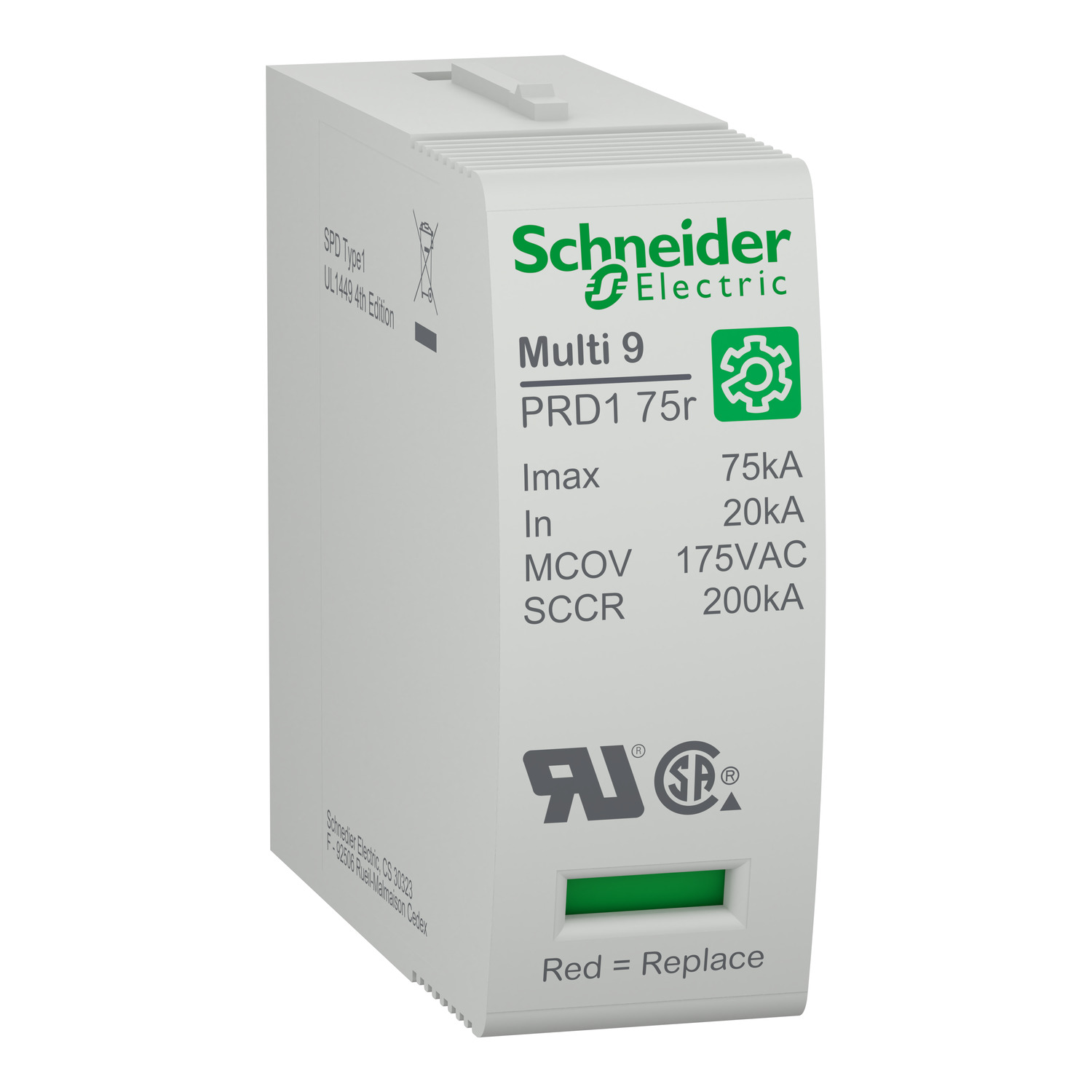

This Multi9 product is a cartridge for PRD1 75r surge protection device. The Imax maximum discharge current is 75kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage is 175VAC. The maximum Up voltage protection level is 600V. It can be plugged into a surge protecting device module. Its width is 2 pitches of 9mm. The product color is light grey (RAL 7035). The dimensions are (W) 17.5mm x (H) 45mm x (D) 68.5mm. The degree of protection is NEMA 1. The operating temperature is -25C to 60C. The storage temperature is -40C to 85C. It is compliant withUL 1449 standard.

Manuals & Documentation
Catalog Number M9LC175
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin Spain
Made in USA No
Number of Poles 1
Response Time < 25 ns
Special Features mechanical indicator green and red)
Standard UL 1449
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=533483626&lang=en-us
GTIN 03606481586087
Item Type Cartridge
