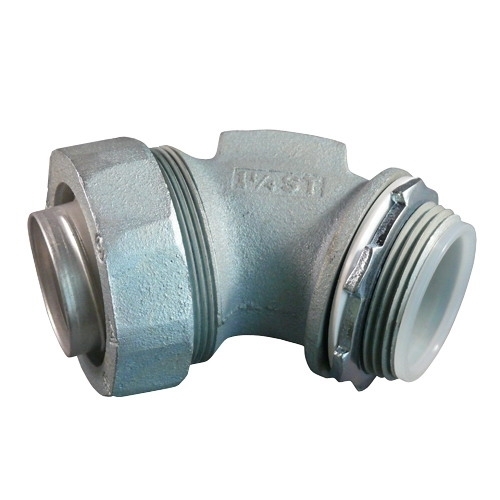

STB-45400 Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 4 in Trade, 45 deg, Malleable Iron, Triple Coated
- MFR:
- Appleton Electric
- MFR #:
- STB-45400
- UPC:
- 781381682008
- Item #:
- 773884
STB-45400 Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 4 in Trade, 45 deg, Malleable Iron, Triple Coated
- MFR #:
- STB-45400
- UPC:
- 781381682008
- Item #:
- 773884
Appleton STB Series 45 DEG Liquidtight Connector With Insulated Throat, Size: 4 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 1-1/4 IN, Standard: Class I, Division 2, UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1, For Liquidtight Flexible Metal Conduit
Manuals & Documentation
| Catalog Number | STB-45400 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Liquidtight Flexible Metal Conduit |
| Connection | Threaded X Compression |
| Finish | Chromate, Epoxy Powder Coat/Zinc Electroplated |
| Material | Malleable Iron |
| Special Features | Seals out oil, water, dust, dirt and fumes; High corrosion resistance; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Polypropylene sealing ring with locknut standard; Suitable for wet locations; Compact design with small turning radius |
| Standard | Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| UPC | 781381682008 |
| GTIN | 00781381682008 |
| Item Type | STB Series 45 DEG Liquidtight Connector With Insulated Throat |
| Size | 4 |
