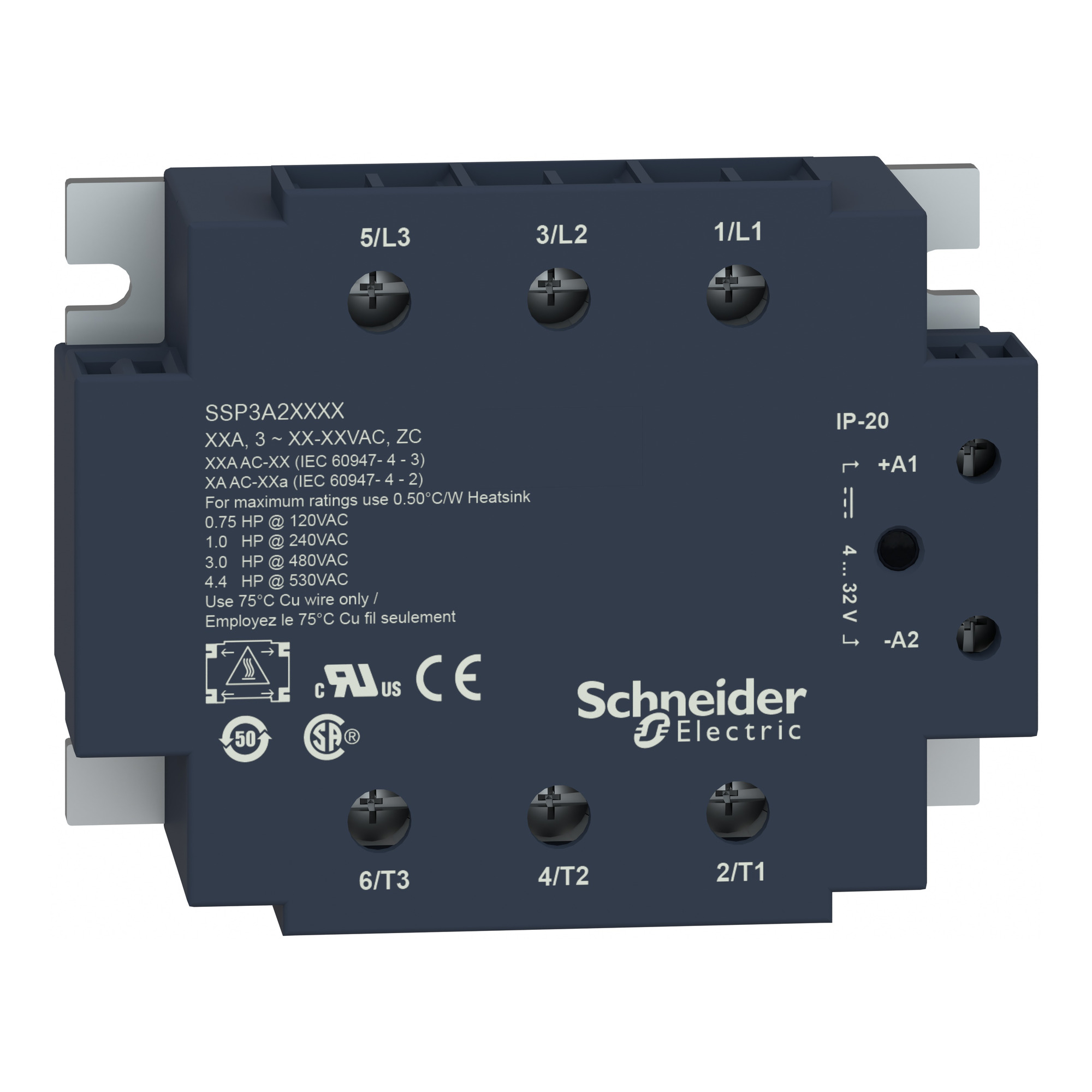

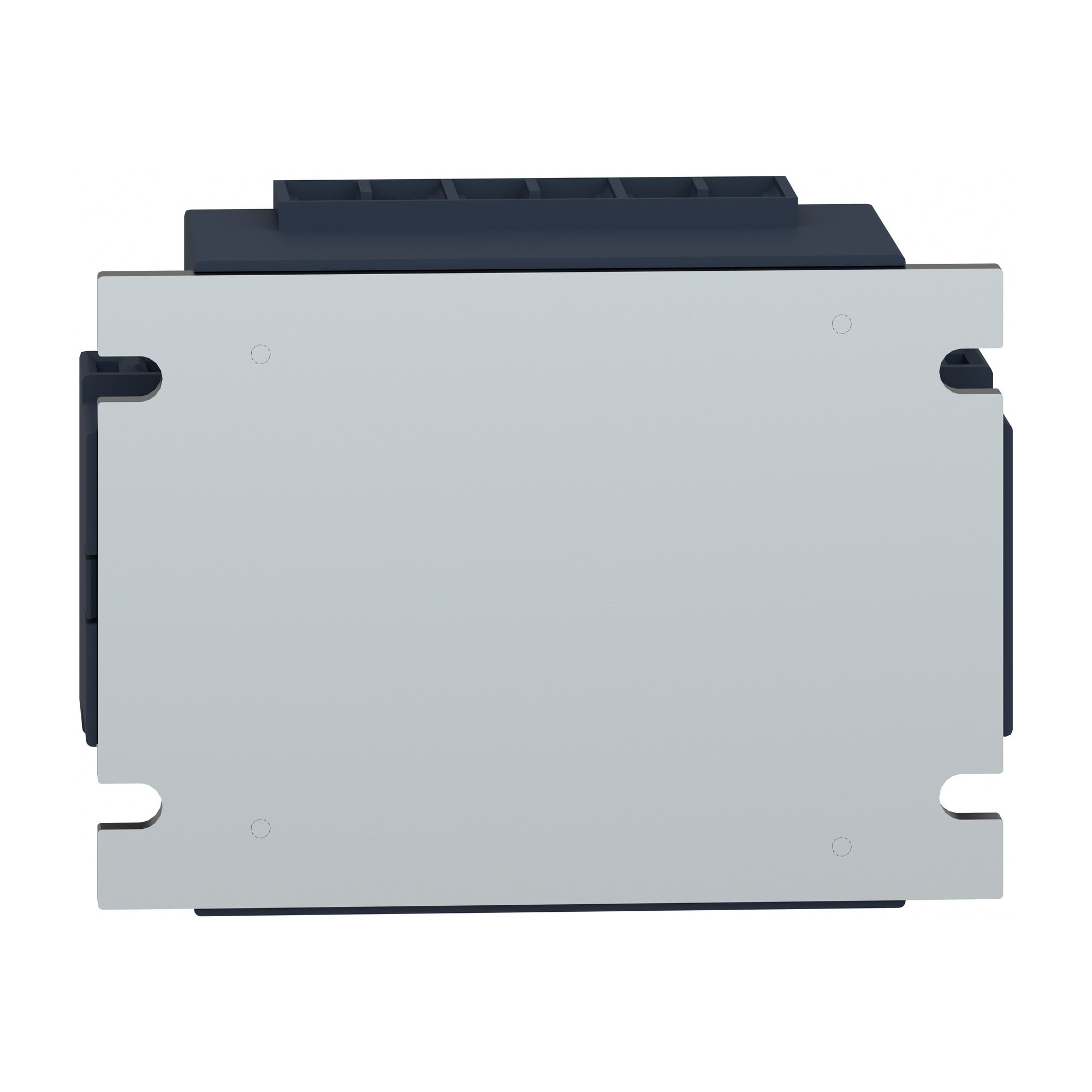

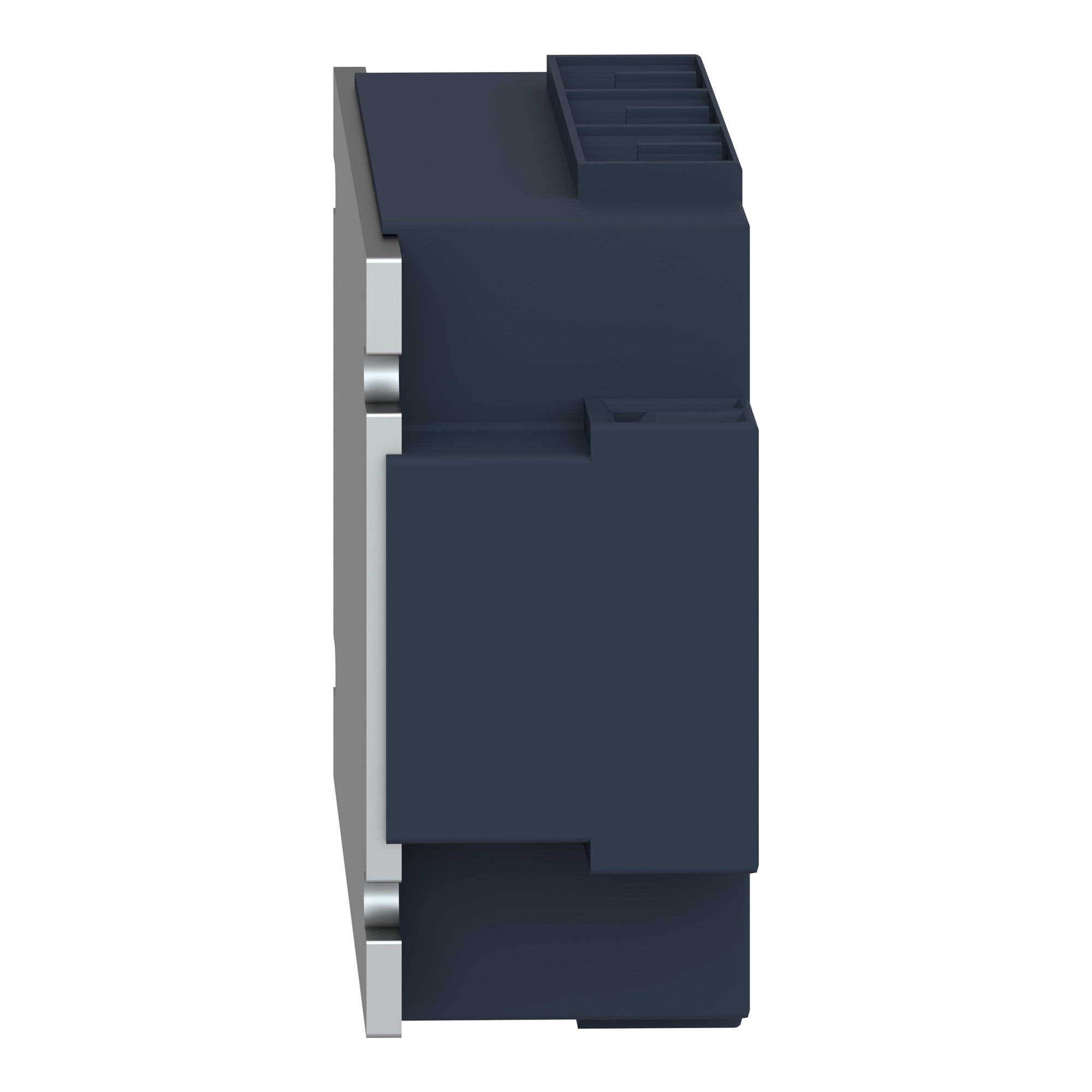

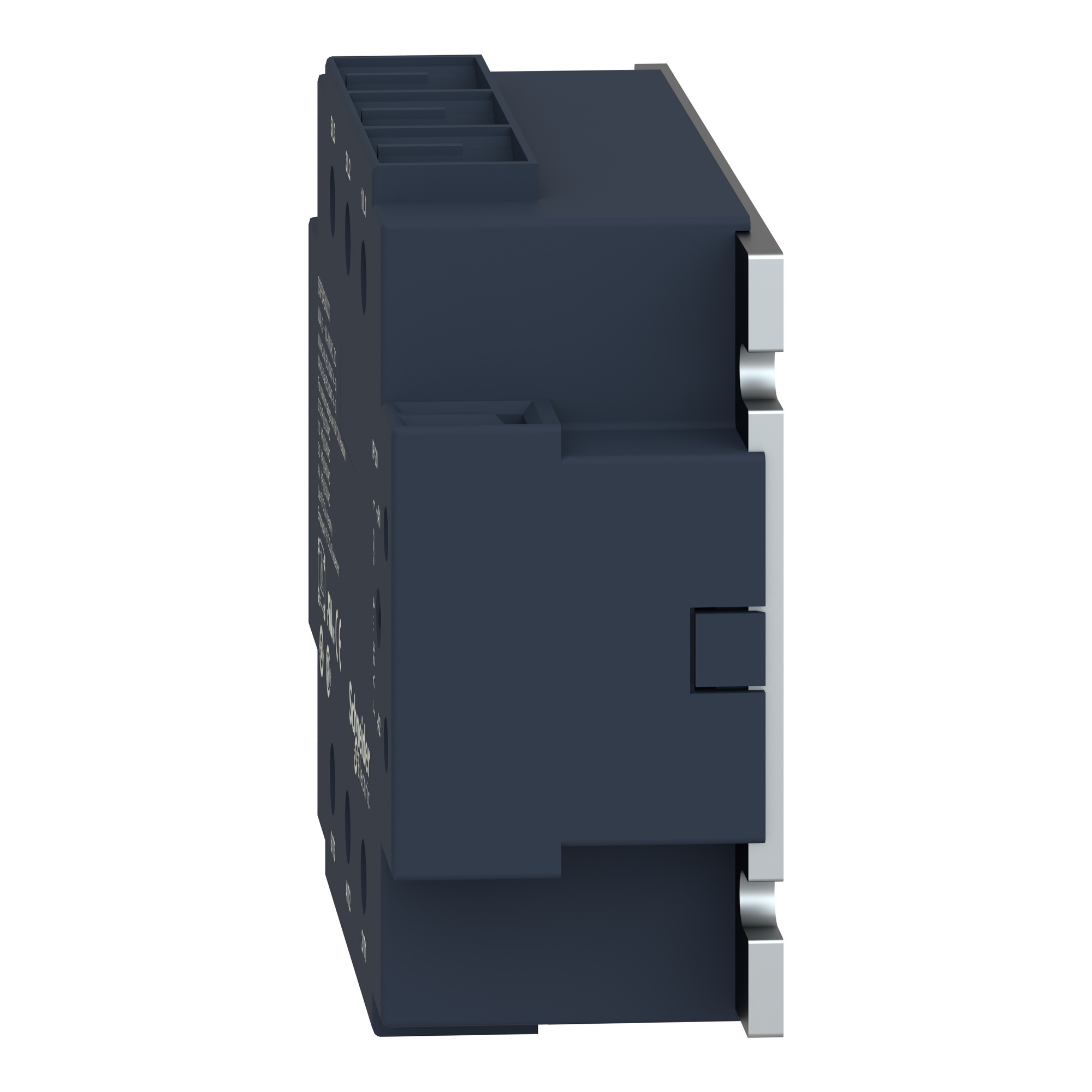

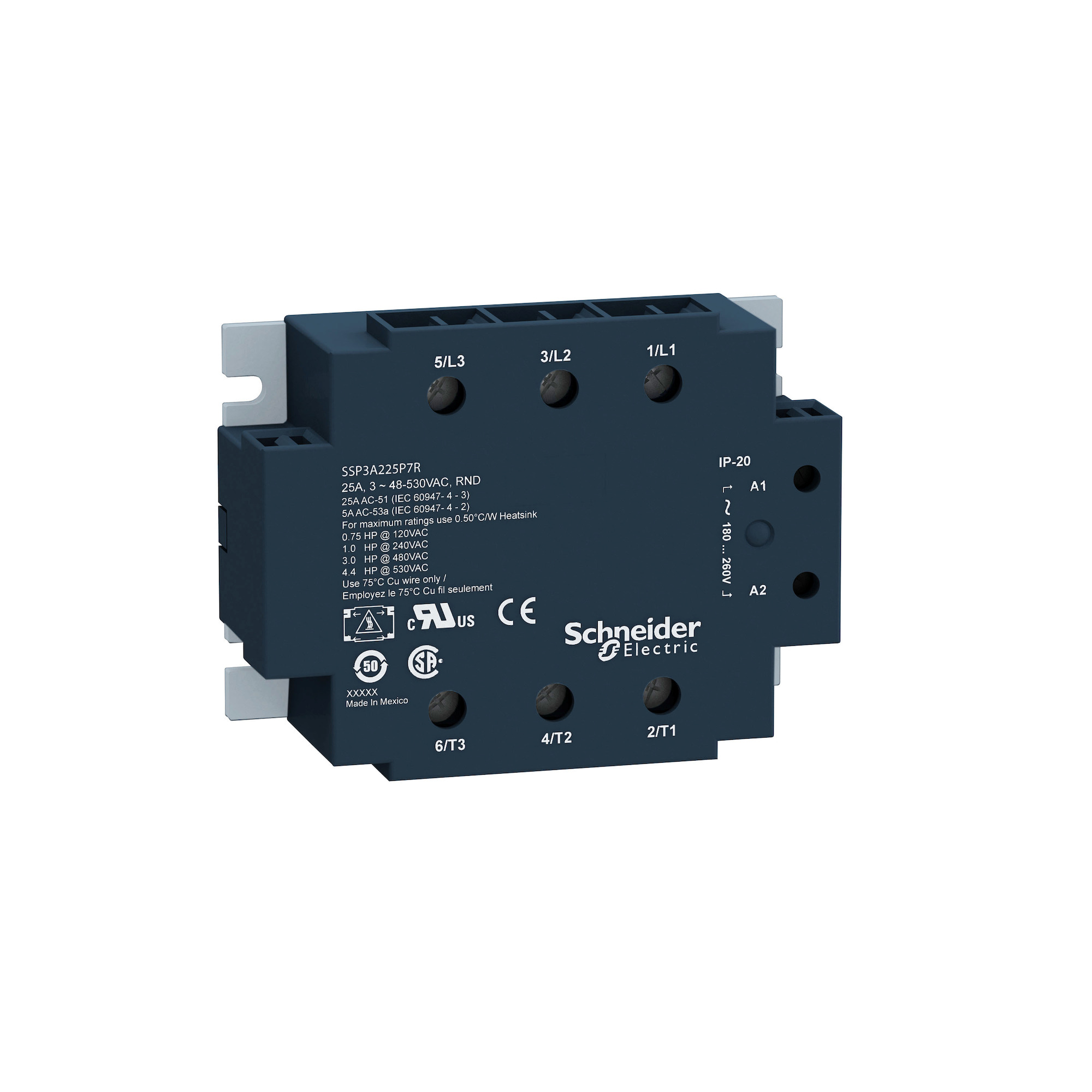

SSP3A250P7 Zelio 3-Phase Zero Voltage Switching Solid State Relay, 50 A, 1NO 1 Form A SPST Contact, 180 to 280 V AC V Coil
- MFR:
- Schneider Electric
- MFR #:
- SSP3A250P7
- Item #:
- 772896
SSP3A250P7 Zelio 3-Phase Zero Voltage Switching Solid State Relay, 50 A, 1NO 1 Form A SPST Contact, 180 to 280 V AC V Coil
- MFR #:
- SSP3A250P7
- Item #:
- 772896
SSP panel mount relay is part of the Harmony Solid sate relays range. This three-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 50A, is controlled withA 180V to 280V AC circuit, has a rated load voltage of 48V to 530V AC output. 0 It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events 0
Manuals & Documentation
| Catalog Number | SSP3A250P7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Mexico |
| Made in USA | No |
| Connection | Screw terminals 1 x 0.2...1 x 2.5 mm², AWG 24...AWG 14) input;screw terminals 1 x 1.5...1 x 10 mm², AWG 16...AWG 8) output |
| Mounting | Panel Mount |
| Phase | 3 |
| Response Time | 20 ms (turn-on);30 ms (turn-off) |
| Special Features | LED, green input |
| Standard | IP20 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267287222&lang=en-us |
| GTIN | 03606480579844 |
| Item Type | Solid state relay up to 50 A |
