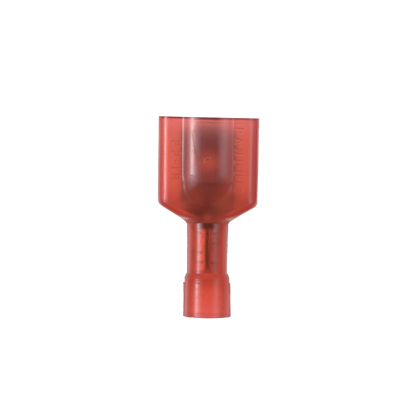

DNF18-250FIMB-L Pan-Term DNF-FIMB Barrel Insulated Loose Piece Vibration-Resistant Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Brass, Red
- MFR:
- Panduit
- MFR #:
- DNF18-250FIMB-L
- UPC:
- 074983824199
- Item #:
- 7720
DNF18-250FIMB-L Pan-Term DNF-FIMB Barrel Insulated Loose Piece Vibration-Resistant Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Brass, Red
- MFR #:
- DNF18-250FIMB-L
- UPC:
- 074983824199
- Item #:
- 7720
The vibration resistant male tab disconnect is made of brass and is nickel-plated. It is fully insulated in a red, nylon oversized housing. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm). It is 0.91 (23.1 mm) long and 0.45 (11.4 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in bottles of 50.
Manuals & Documentation
| Catalog Number | DNF18-250FIMB-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Standard |
| Finish | Nickel-Plated |
| Insulation | Nylon |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983824199 |
| GTIN | 00074983824199 |
| Item Type | Disconnect |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #18 AWG |
