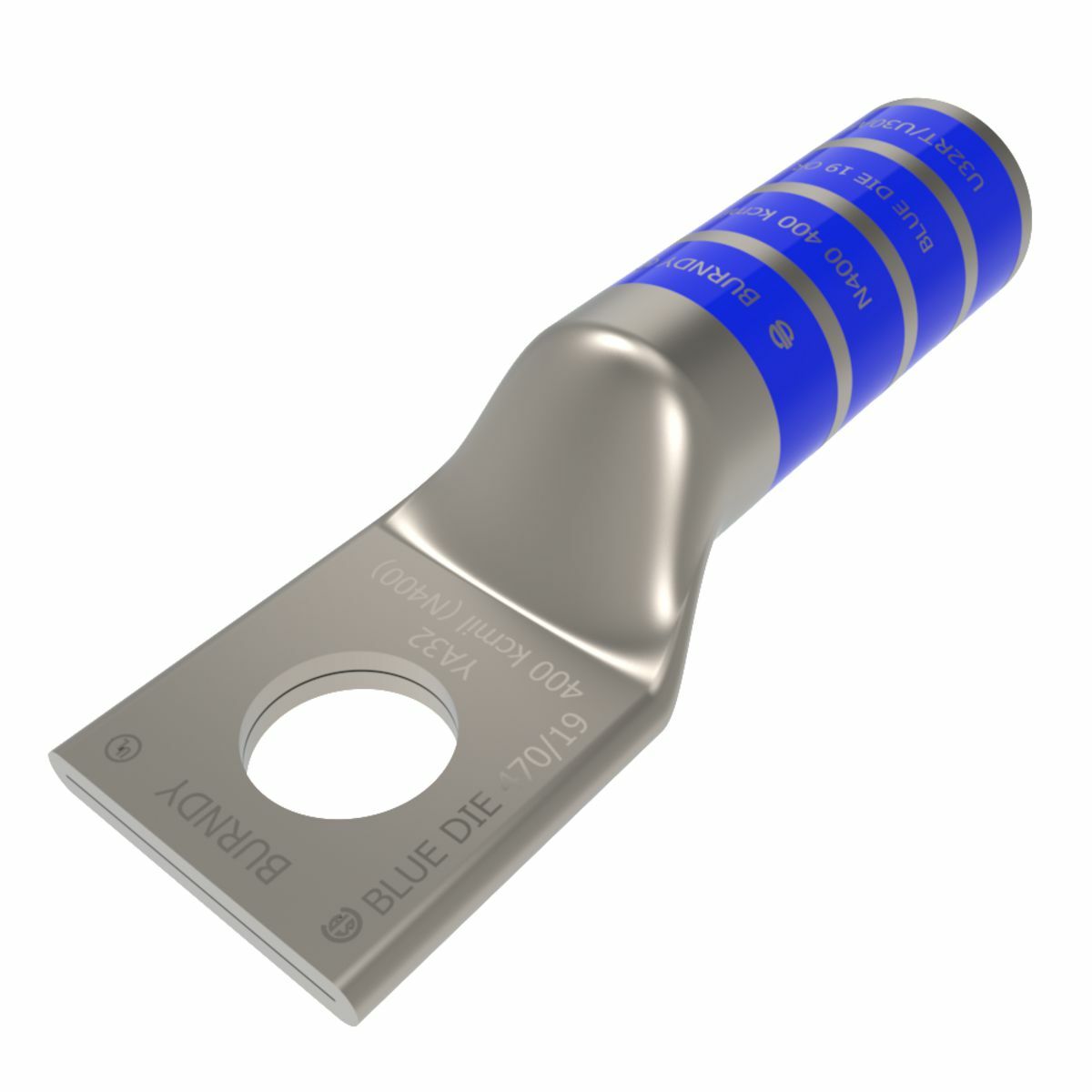

YA32 YA Series 1-Hole Uninsulated Compression Lug, 400 kcmil Stranded Copper Conductor, Die Code: 19/470, 5/8 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA32
- UPC:
- 781810505403
- Item #:
- 771590
YA32 YA Series 1-Hole Uninsulated Compression Lug, 400 kcmil Stranded Copper Conductor, Die Code: 19/470, 5/8 in Stud, Tin Plated Copper
- MFR #:
- YA32
- UPC:
- 781810505403
- Item #:
- 771590
Manuals & Documentation
| Catalog Number | YA32 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 2-3/16 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Finish: Electro-Tin Plated, Die Index: 19 Or 470, Color Code: Blue, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W32VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W32VT, W32RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U32RT, U30ART Die, (4), Y46 Tool, U32RT, U30ART Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3), Conductor Type: Commercial Stranded Copper |
| Standard | UL 486A-486B |
| UPC | 781810505403 |
| GTIN | 00781810505403 |
| Item Type | Long Barrel, Tin Plated |
| Voltage Rating | 35 |
| Cross Reference Products | CTL400L-58 |
