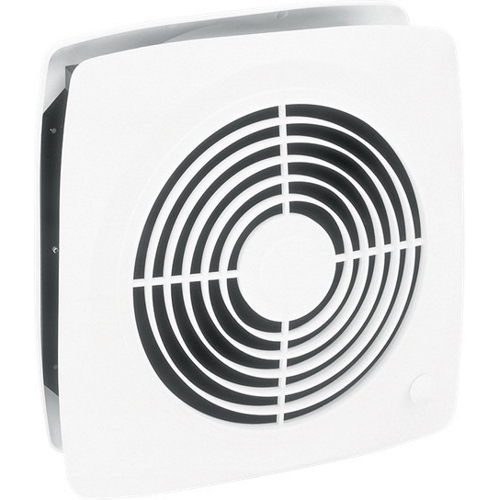

Broan 10-Inch 380 CFM Room To Room Ventilation Fan with White Square Plastic Grille, 6.5 Sones
- MFR:
- Broan-NuTone
- MFR #:
- 510
- UPC:
- 026715022915
- Item #:
- 77142
Broan 10-Inch 380 CFM Room To Room Ventilation Fan with White Square Plastic Grille, 6.5 Sones
- MFR #:
- 510
- UPC:
- 026715022915
- Item #:
- 77142
Manuals & Documentation
| Catalog Number | 510 |
| Manufacturer | Broan-NuTone |
| Brand | Broan-NuTone |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Removing Humidity From Laundry Rooms, Tobacco Smoke From Rec Rooms, Fumes From Workshops Or Cooking Fumes From Kitchens |
| Special Features | Easily installs in interior walls to move heated or cooled air from one room to another; Spreads heat from fireplaces, cool air from air conditioners to adjoining rooms; Built-in variable speed control; Solid state speed control for fan speed and sound level selection; High-strength, reinforced polymeric fan blade; Permanently lubricated, thermally protected, plug-in motor; Motor assembly offers fast, easy "twist-lock" installation; Two contemporary styled grilles complement modern decor; Requires 11-5/8 IN square hole through both interior walls; Housing can be fastened to walls in several ways and allows flexibility to meet almost any mounting situation; Adjustable housing fits walls from 3 IN to 5.5 IN thick (NOT through a fire-rated wall); 25 GA finished with rugged black electrically-bonded epoxy paint housing |
| Standard | UL Listed, HVI 2100 Certified |
| UPC | 026715022915 |
| GTIN | 00026715022915 |
| Item Type | Ventilation Fan |
| Length | 1.13333 |
| Length UOM | Inch |
| Width | 0.725 |
| Width UOM | Inch |
| Height | 1.16666 |
| Height UOM | Inch |
| Weight | 10.2 |
| Weight UOM | Pounds |
