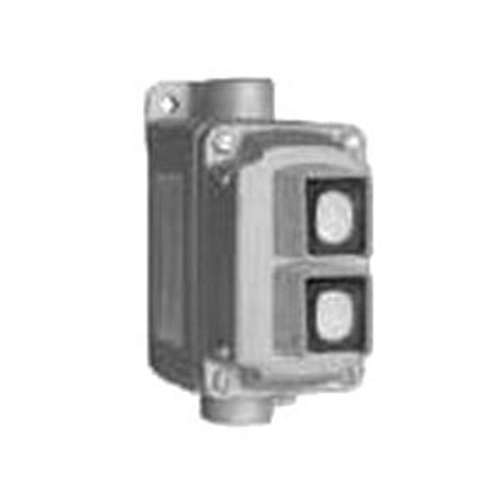

Pushbutton Control Station, 1-Gang 2-Circuit Dead End, Series: EFDB, 600 VAC, 10 A, 1NC-1NO Contact Configuration, Momentary Contact Mode, 10 A at 600 VAC Contact, Legend: Start/Stop, NEMA 3 NEMA Rating, Surface Mounting, Malleable Iron, Triple Coated, 4.63 in H x 6.19 in W x 4.69 in D Dimensions
- MFR:
- Appleton Electric
- MFR #:
- EFDB175U2
- UPC:
- 781381701181
- Item #:
- 76922
Pushbutton Control Station, 1-Gang 2-Circuit Dead End, Series: EFDB, 600 VAC, 10 A, 1NC-1NO Contact Configuration, Momentary Contact Mode, 10 A at 600 VAC Contact, Legend: Start/Stop, NEMA 3 NEMA Rating, Surface Mounting, Malleable Iron, Triple Coated, 4.63 in H x 6.19 in W x 4.69 in D Dimensions
- MFR #:
- EFDB175U2
- UPC:
- 781381701181
- Item #:
- 76922
EFDB Series 1-Gang 2 Circuit Push Button Switch, Action: Momentary, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, Material: Malleable Iron Body With Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 4.69 IN, Legend: Start/Stop, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, DClass I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For Remote Control Of Motors
Manuals & Documentation
| Catalog Number | EFDB175U2 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Momentary |
| Application | For Remote Control Of Motors |
| Enclosure | NEMA 3, 7CD, 9EFG |
| Mounting | Surface |
| Special Features | Eliminate need for adding sealing fittings and compound at each conduit entrance; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity; Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation; Push button switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements. Assures positive contact and long trouble-free operation; Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations; Push button models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered |
| Standard | UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, DClass I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III |
| UPC | 781381701181 |
| GTIN | 00781381701181 |
| Item Type | EFDB Series 1-Gang 2 Circuit Push Button Switch |
