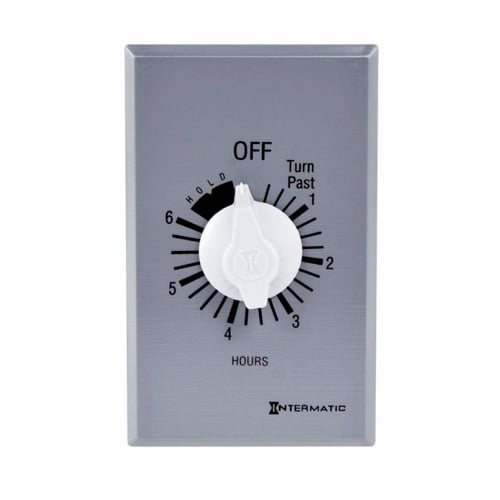

FF6HH FF Series Auto Off Commercial Mechanical Spring Wound Timer, 6 hr Setting, 125/257 V AC, 1 hp, 2 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR:
- Intermatic
- MFR #:
- FF6HH
- UPC:
- 078275184190
- Item #:
- 76880
FF6HH FF Series Auto Off Commercial Mechanical Spring Wound Timer, 6 hr Setting, 125/257 V AC, 1 hp, 2 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR #:
- FF6HH
- UPC:
- 078275184190
- Item #:
- 76880
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Manuals & Documentation
| Catalog Number | FF6HH |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Tunisia |
| Made in USA | No |
| Action | 1 x SPST |
| Amperage Rating | 15 |
| Application | Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR |
| Connection | Teeter Type |
| Contact Configuration | 1 NO |
| Contact Rating | 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive) |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Hold Feature Enables User to Override the Automatic Shut-Off Function, Rugged Time Dial Plate Easily withstands the Abuse Encountered in Commercial Environments, Commercial "Brushed Metal" (Plastic Construction) look meets NEC Requirements, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compatible, Provide Direct Replacement of a Standard Wall Switch in a Single Gang 2-1/2 IN Deep Junction Boxes, Spiral Time Scale to Provide Easy Selection of the Time Setting, Standard Industry Accepted Molded Plate and Knob, Secure Teeter-Type Terminal, 1 Year Warranty |
| Standard | cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC |
| UPC | 078275184190 |
| GTIN | 00078275184190 |
| Item Type | Commercial Spring Wound Auto-Off |
| Size | 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM |
| Timing Range | 6 HR |
| Voltage Rating | 125 - 277 |
