Appleton

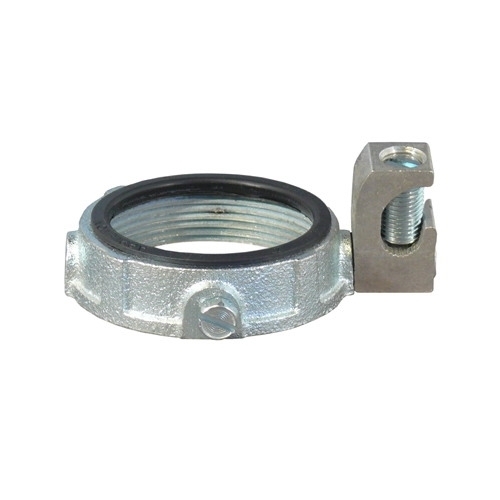

Grounding Bushing; 3 Inch, 6 AWG-250 MCM Stranded, Malleable Iron

MFR:
Appleton Electric
MFR #:
GIB-300L-25AC
UPC:
781381091237
Item #:
768758

Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 3 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Connection: Threaded, Temperature Rating: 150 DEG C, Dimensions: 1.31 IN Height X 4.06 IN Diameter, Cable Size: 6 AWG - 250 KCMIL Stranded, Turning Radius: 3.31 IN, Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1, For Use With Threaded Rigid Metal Conduit And IMC

Manuals & Documentation

Features

  • Self extinguishing
  • Resists corrosion
  • UL listed
  • CSA certified
Catalog Number GIB-300L-25AC
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Rigid Metal Conduit And IMC
Connection Threaded
Finish Zinc Electroplated Body, Tin Plated Lug
Material Malleable Iron
Special Features Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors
Standard UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381091237
GTIN 00781381091237
Item Type Insulated Grounding Bushing With Aluminum Lay-In-Lug
Length 7.5000
Length UOM Inch
Width 5.0000
Width UOM Inch
Height 4.0000
Height UOM Inch
Weight 0.680
Weight UOM Pounds
Size 3
Temperature Rating 150 DEG C
