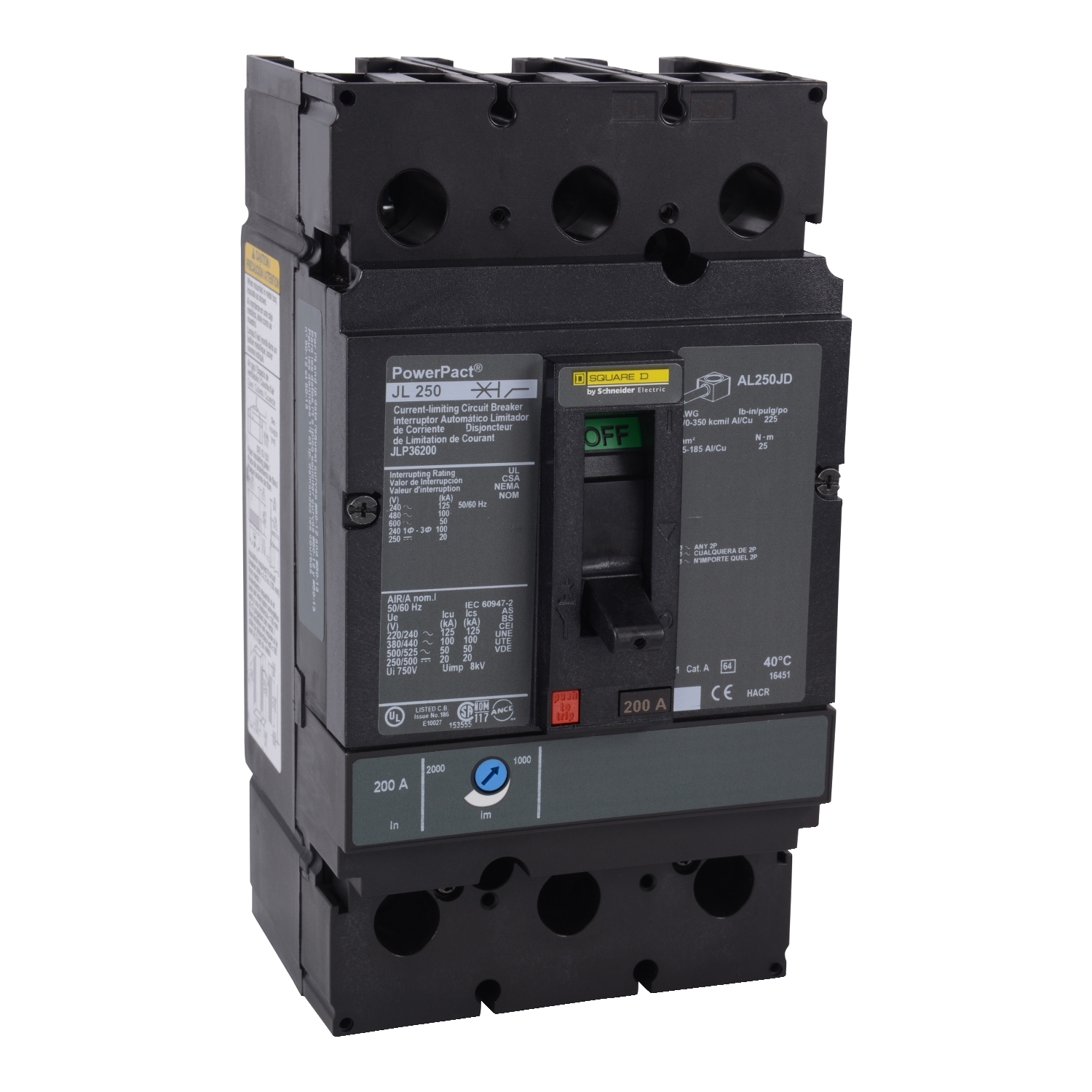

JLP36200 PowerPact 80% Rated Molded Case Circuit Breaker, 600 V AC, 200 A, 125 kA at 240 V AC/100 kA at 480 V AC/50 kA at 600 V AC/20 kA at 250 VDC/50 kA at 500 VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- JLP36200
- UPC:
- 785901661276
- Item #:
- 765900
JLP36200 PowerPact 80% Rated Molded Case Circuit Breaker, 600 V AC, 200 A, 125 kA at 240 V AC/100 kA at 480 V AC/50 kA at 600 V AC/20 kA at 250 VDC/50 kA at 500 VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- JLP36200
- UPC:
- 785901661276
- Item #:
- 765900
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This unit has terminal nuts on the line side and lugs on the load side. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | JLP36200 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Actuator | Toggle |
| Application | HACR rated |
| Connection | Terminal nut, line;lugs, load; AWG 3/0...350 kcmil aluminium/copper terminals |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 3 |
| Special Features | Modbus;Overload protection;short-circuit protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=426475&lang=en-us |
| UPC | 785901661276 |
| GTIN | 00785901661276 |
| Item Type | Circuit breaker |
| Width | 4.09450 |
| Width UOM | Inch |
| Height | 7.51970 |
| Height UOM | Inch |
| Trip Type | Thermal-magnetic |
