Schneider Electric

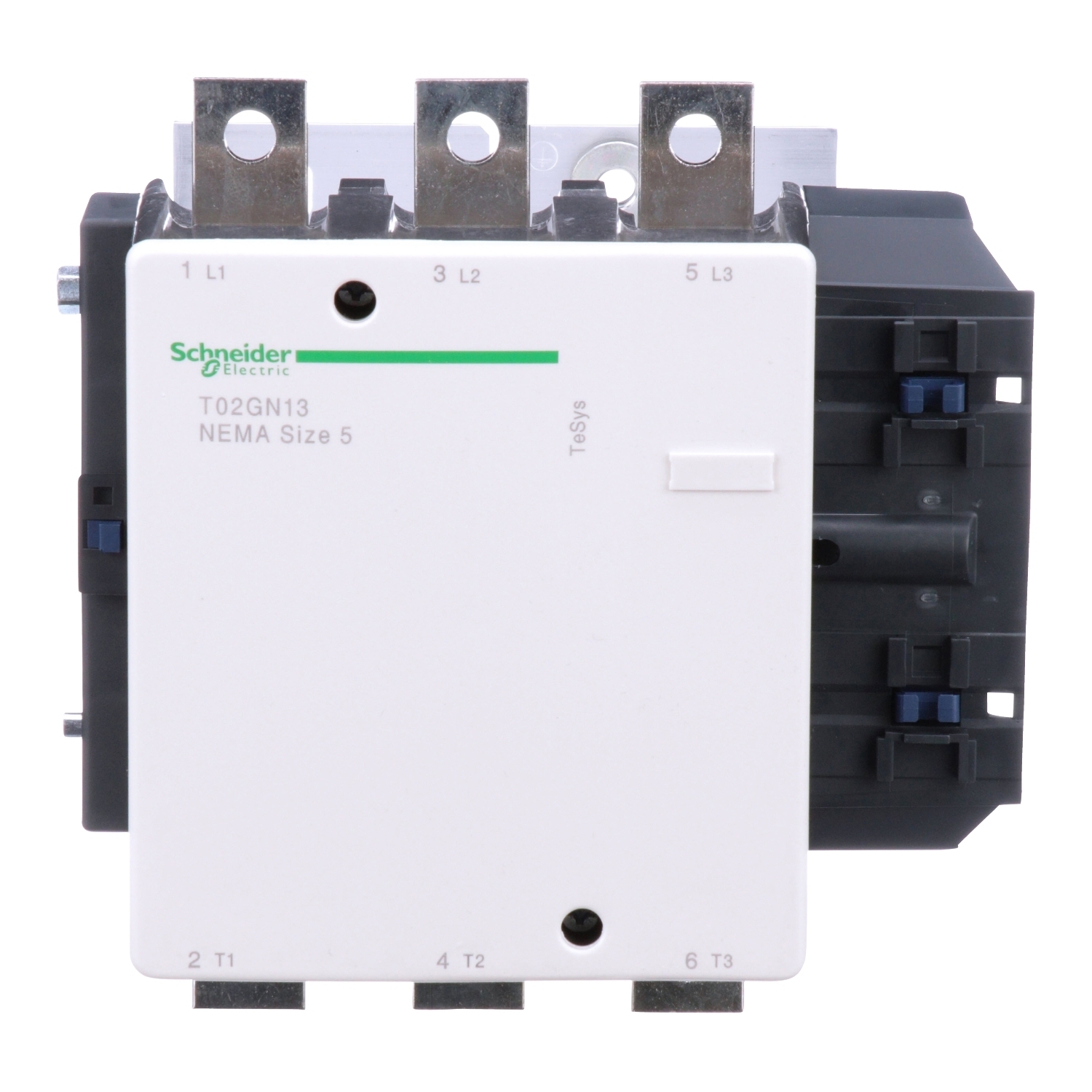

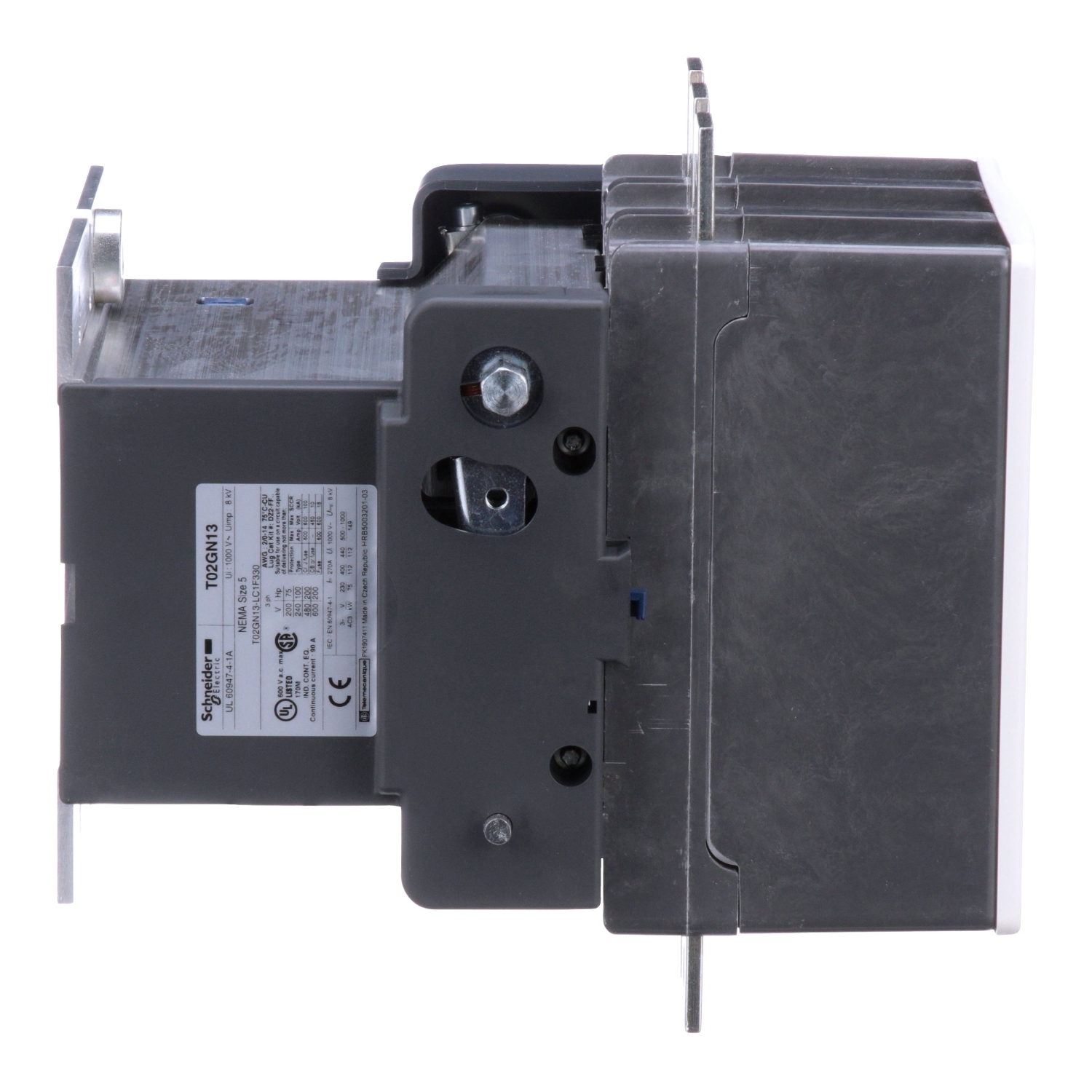

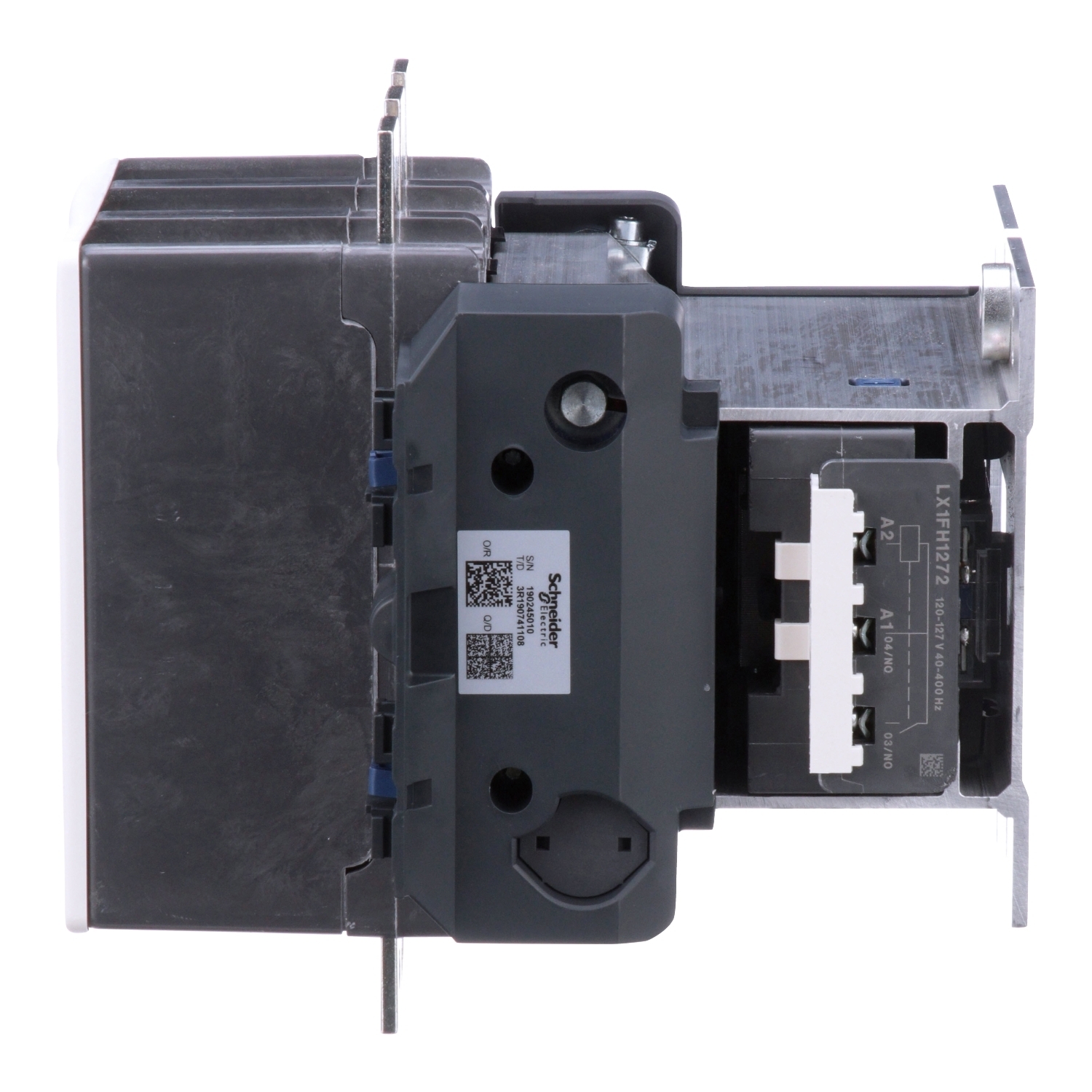

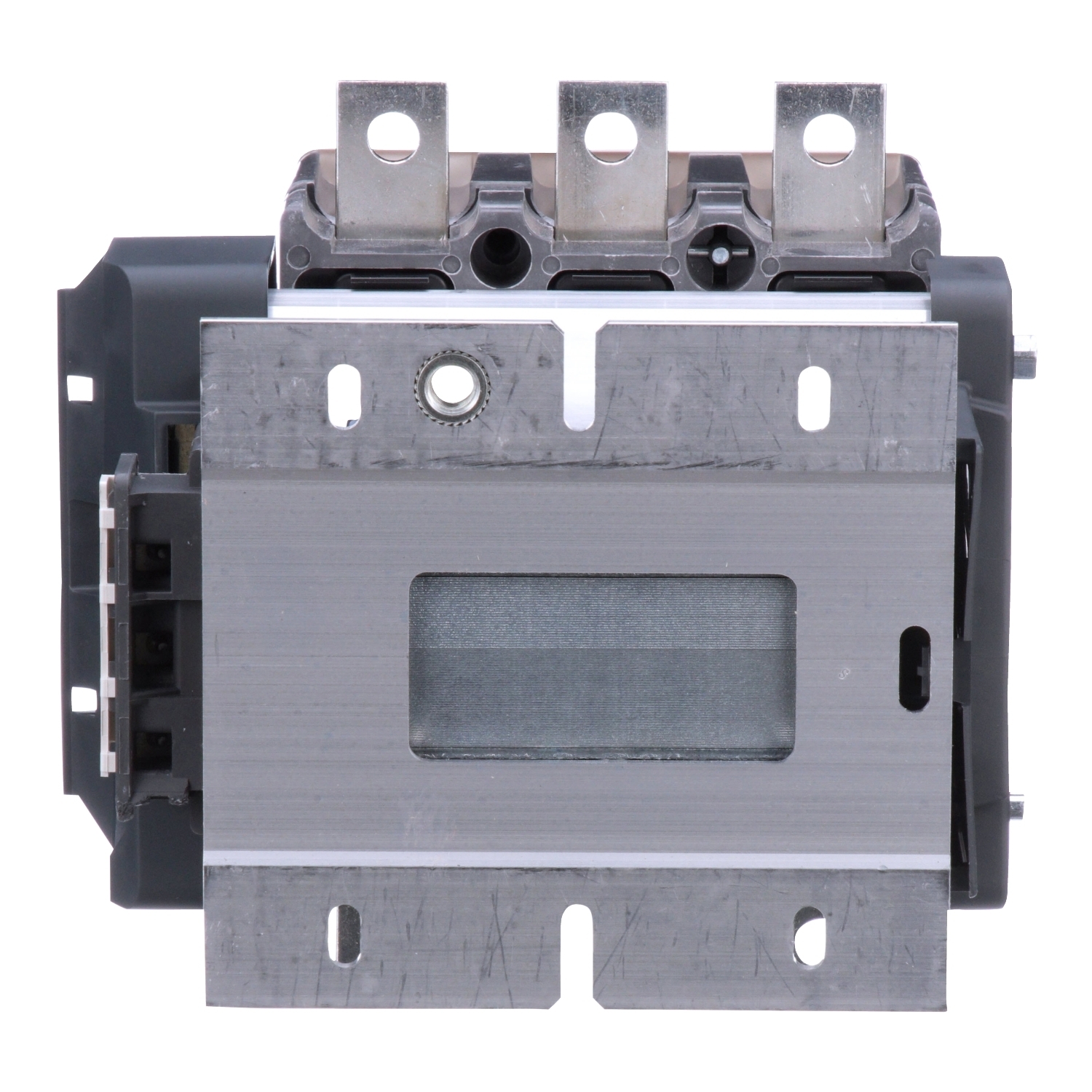

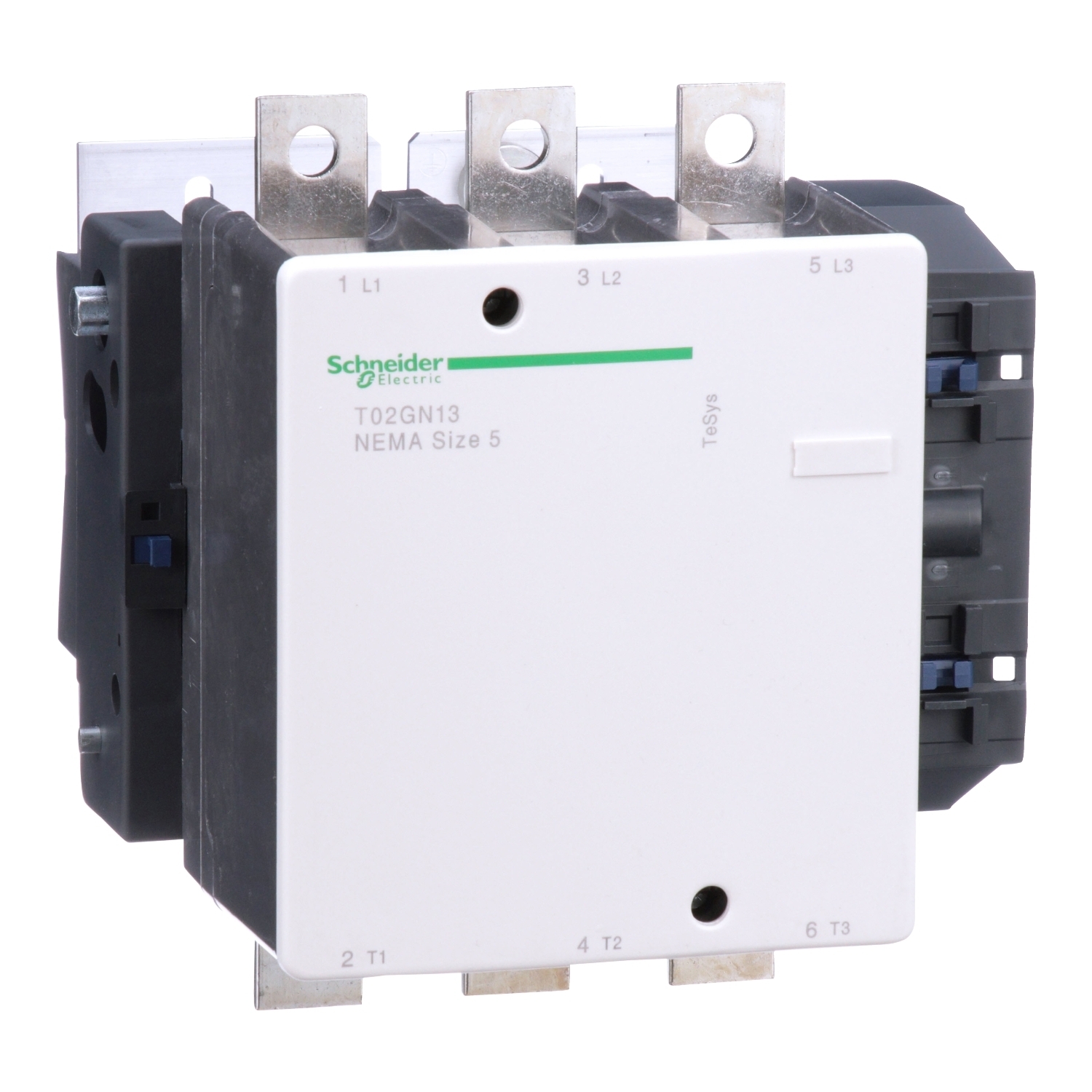

T02GN13G7 TeSys Non-Reversing Contactor, 120 V AC V Coil, 270 A, 1NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
T02GN13G7
UPC:
785901162193
Item #:
764872

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 5 nonreversing contactor mounts on 35mm DIN rail and has a 270 amperage continuous current rating. The contactor has ratings of 75 HP at 200, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open auxiliary contact. This contactor is not in an enclosure. This contactor is 8.11 inches tall, 8.39 inches wide and 8.71 inches deep. It weighs 20.52 lbs. The screw clamp terminals will accept control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.

Manuals & Documentation
Catalog Number T02GN13G7
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin France
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402911931&lang=en-us
UPC 785901162193
GTIN 00785901162193
Width 8.39
Width UOM Inch
Height 8.11
Height UOM Inch
Depth 8.71 IN
