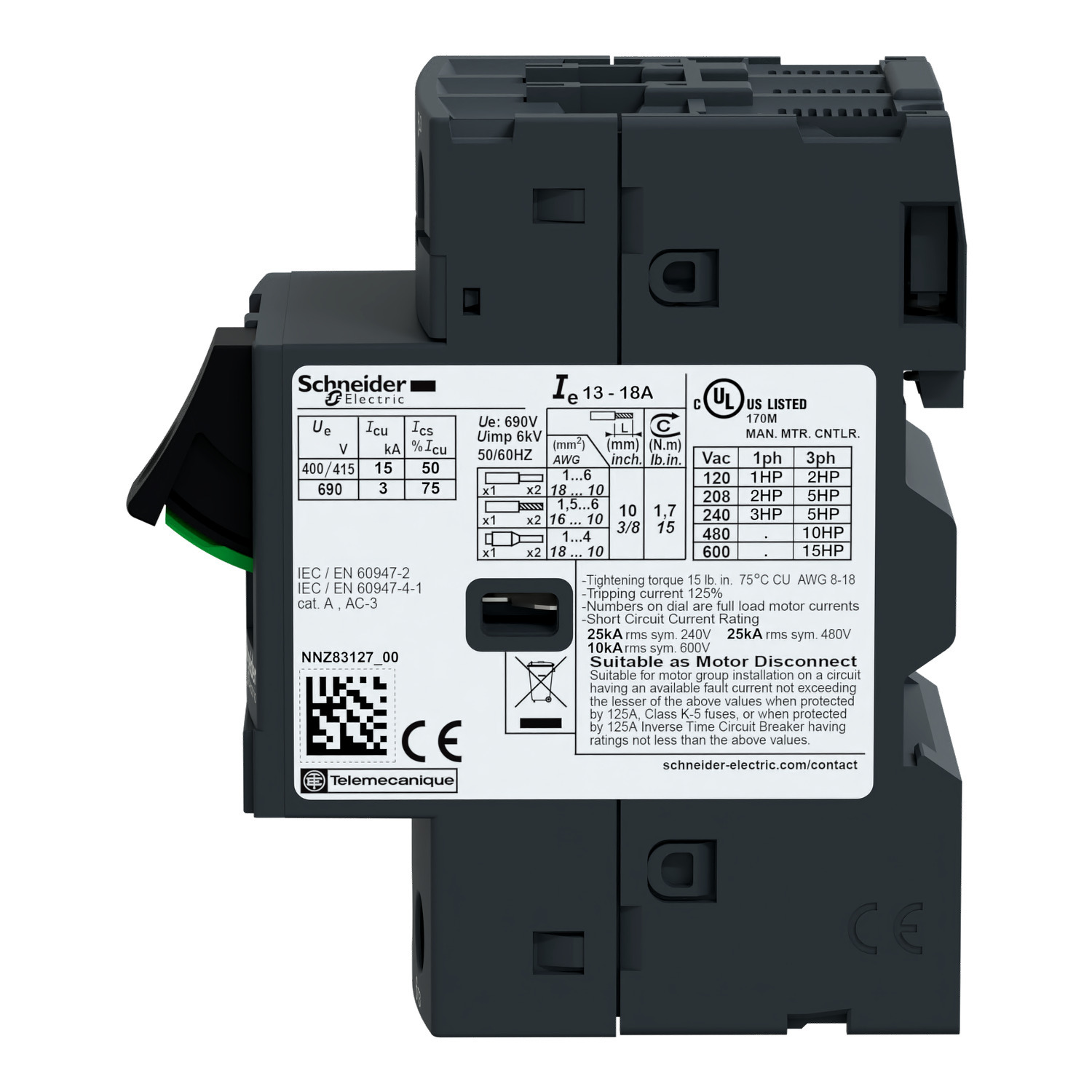

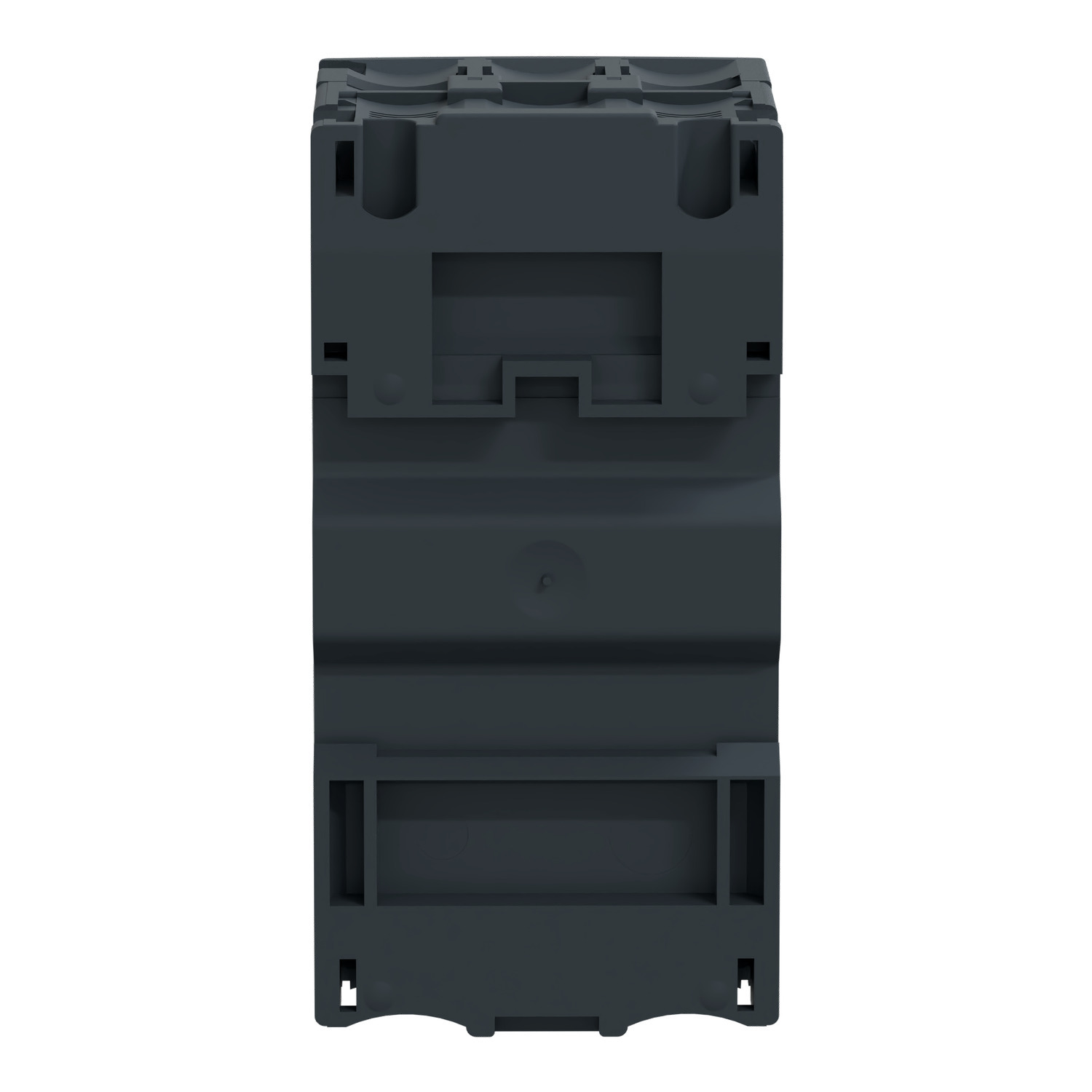

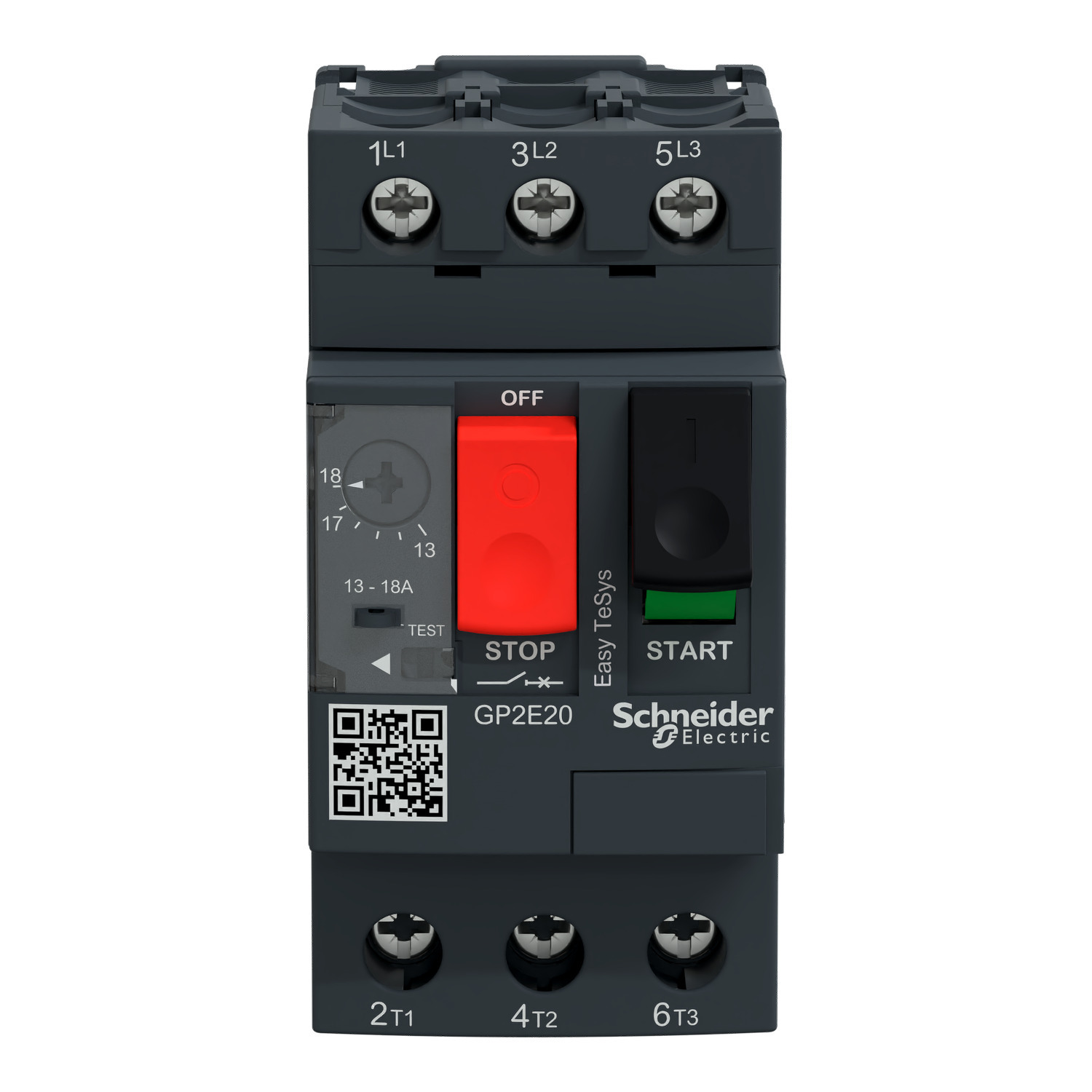

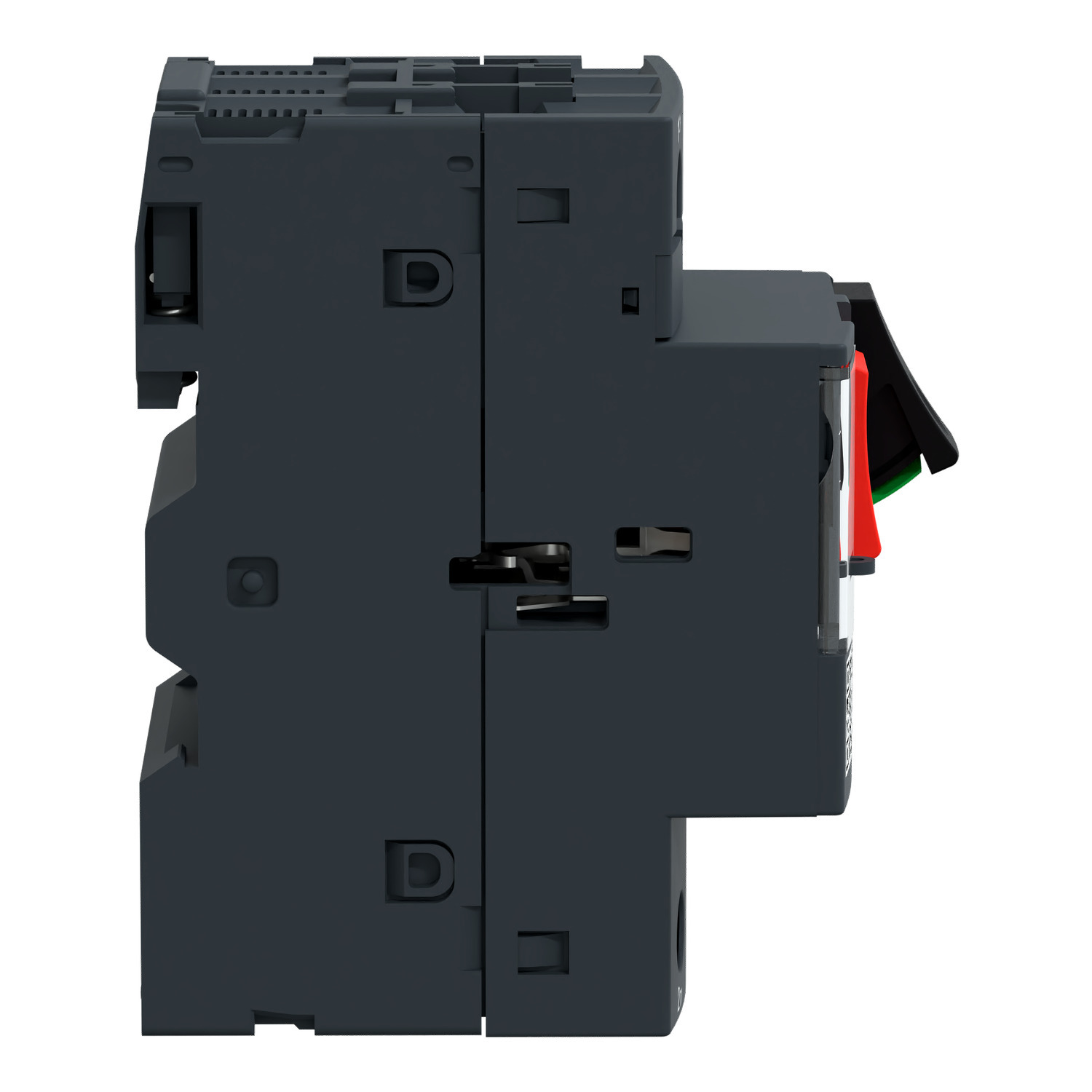

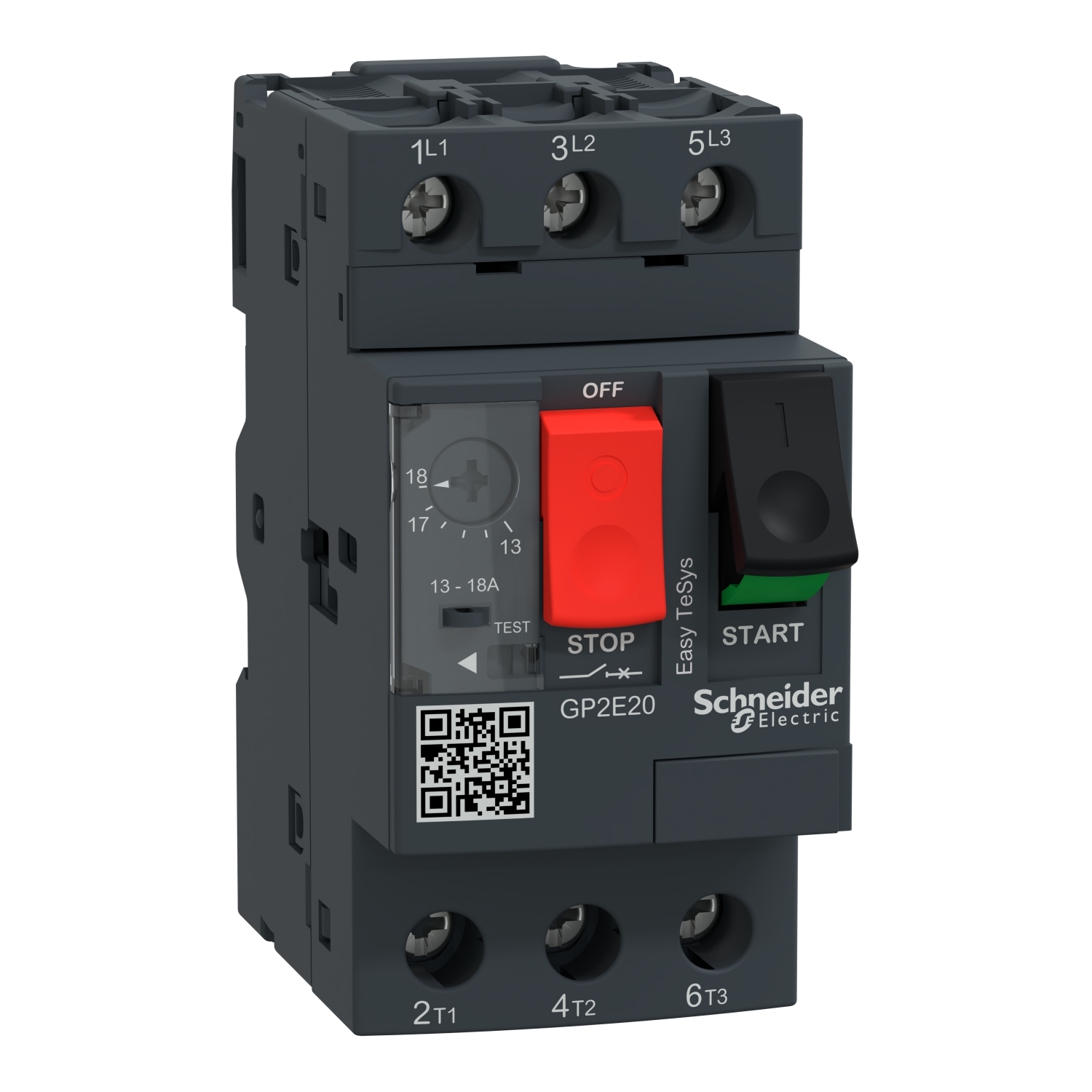

Easy TeSys manual motor controller, 3 poles (3P), 18A/690V, for 3-phase motor applications 7.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 13-18A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, cUL).

Manuals & Documentation
Catalog Number GP2E20
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin Thailand
Made in USA No
Number of Poles 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=526336706&lang=en-us
GTIN 03606481063458
Item Type Motor controller;Push-button
