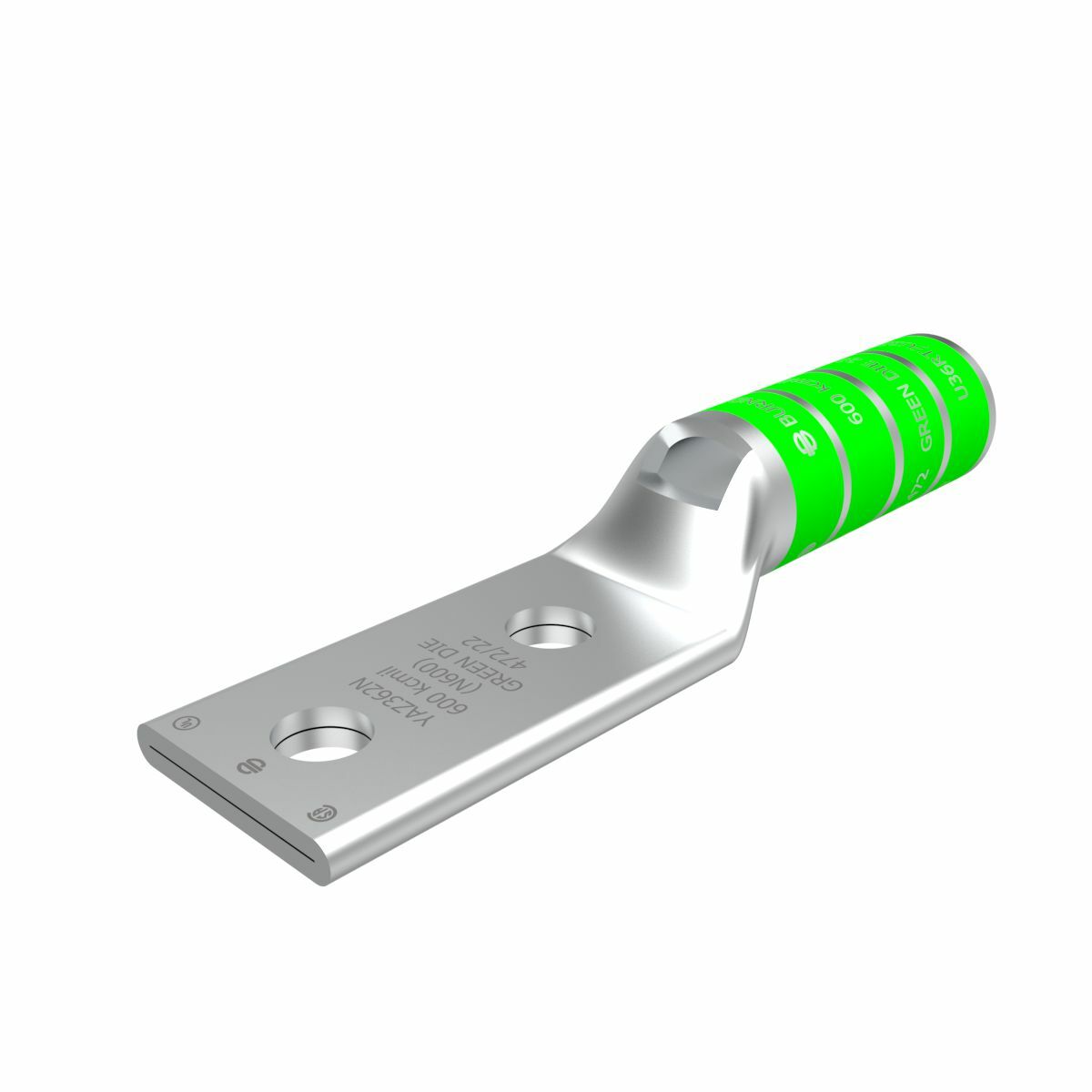

YAZ362N YAZ-2N 2-Hole Compression Lug With Inspection Window, 600 kcmil Copper Conductor, Die Code: 22/472, 1/2 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZ362N
- UPC:
- 781810227961
- Item #:
- 761765
YAZ362N YAZ-2N 2-Hole Compression Lug With Inspection Window, 600 kcmil Copper Conductor, Die Code: 22/472, 1/2 in Stud, Tin Plated Copper
- MFR #:
- YAZ362N
- UPC:
- 781810227961
- Item #:
- 761765
Manuals & Documentation
| Catalog Number | YAZ362N |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Finish: Electro-Tin Plated, Wire Strip Length: 2-3/4 IN, Color Code: Green, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U36RT, U32ART Die, (4), Y46 Tool, U36RT, U32ART Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4), Die Index: 22 Or 472 |
| Standard | UL 486A-486B |
| UPC | 781810227961 |
| GTIN | 00781810227961 |
| Item Type | Long Barrel, Skive, Tin Plated |
| Voltage Rating | 35 |
| Cross Reference Products | CLWD-600-12-134, 54878BEPH |
