AFC CABLE SYSTEMS

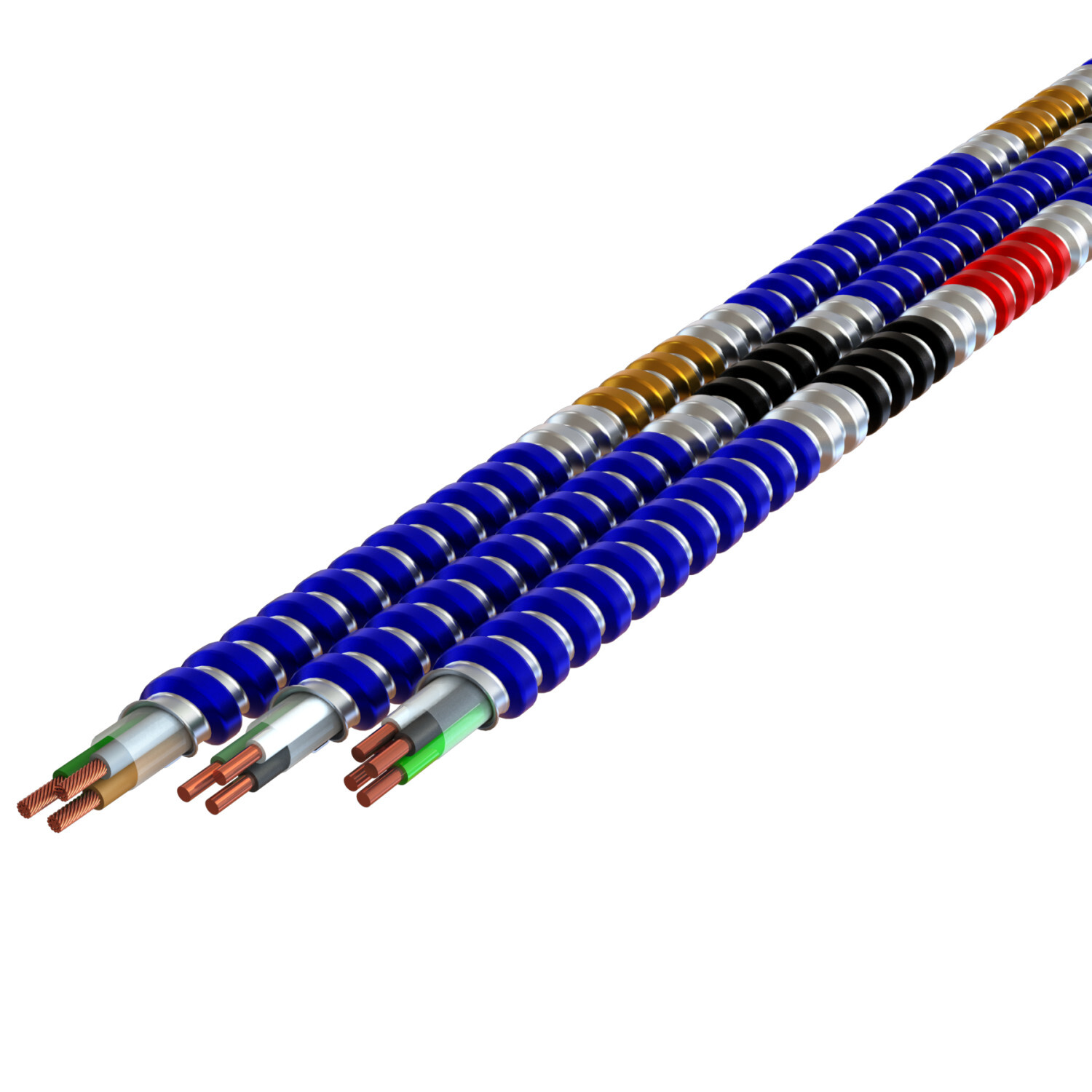

1760B42T00 MC Tuff Type MC Lightweight Traditional Metal Clad Cable With Grounding and Neutral Conductor, Coil Packaging, 600 V AC, (4) 12 AWG Stranded Copper Conductor, 250 ft L

MFR:
ATKORE - AFC CABLE
MFR #:
1760B42T00
UPC:
077680200815
Item #:
759658

MC Tuff is a lightweight, high-strength Type MC Cable with blue galvanized steel interlocked armor that features ColorSpecID/ColorTrak ID for easy identification. MC Tuff cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.

Manuals & Documentation
Catalog Number 1760B42T00
Manufacturer ATKORE - AFC CABLE
Brand AFC CABLE SYSTEMS
Country of Origin United States
Made in USA Yes
Armour Interlocked Galvanized Steel Strip
Color Blue
Conductor Material Copper
Insulation Material THHN
Number of Conductors 5
Special Features Cable tray rated, install per NEC; May be surfaced mounted and embedded in plaster; Environmental air-handling space installation per NEC 300.22; UL Classi?ed 1, 2, and 3 hour through (Fire) penetration product, R-14141; Made in USA of US and/or imported materials; ColorSpec ID system
Standard UL 83, 1479, 1569, 1581, 2556 File Number E80042, UL File Number R-14141, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Speci?cation A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, ISO 9001 Certified
UPC 077680200815
GTIN 00077680200815
Item Type Traditional Lightweight Type MC Cable With Ground And Neutral
Length 250
Length UOM Foot
Weight 0.2455 LB/FT
Outside Diameter 0.613 IN
Temperature Rating 90
Voltage Rating 600V
